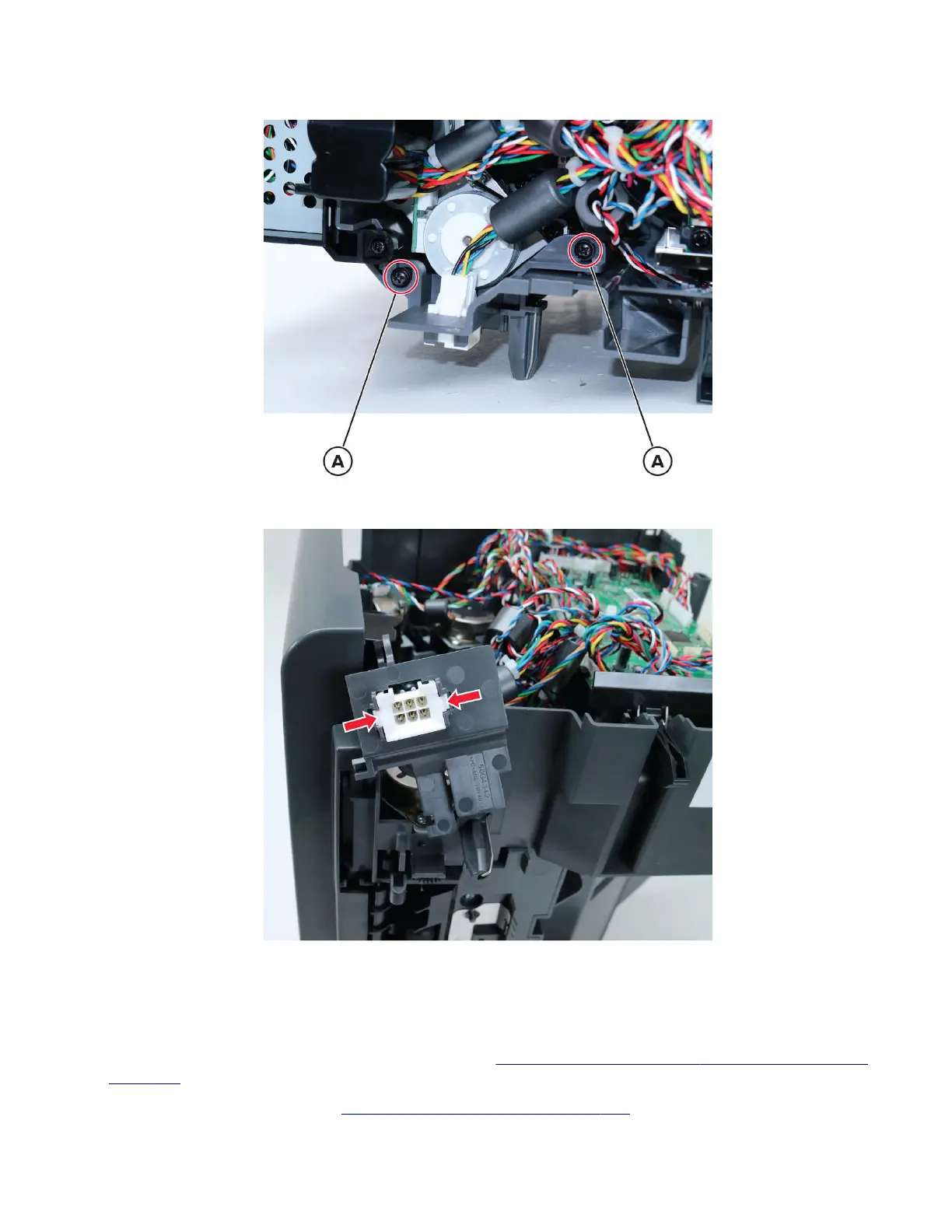

3 Remove the two screws (A), and then release the connector bracket.
4 Press the latches to release, and then dislodge the connector.
5 Disconnect the interface cable from the controller board, and then remove it.
Motor (SHPF diverter plunger) removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.
2 Remove the left staple unit. See “Left staple unit removal” on page 709.
4064
Parts removal
712
