Lexmark MS823 Service Manual

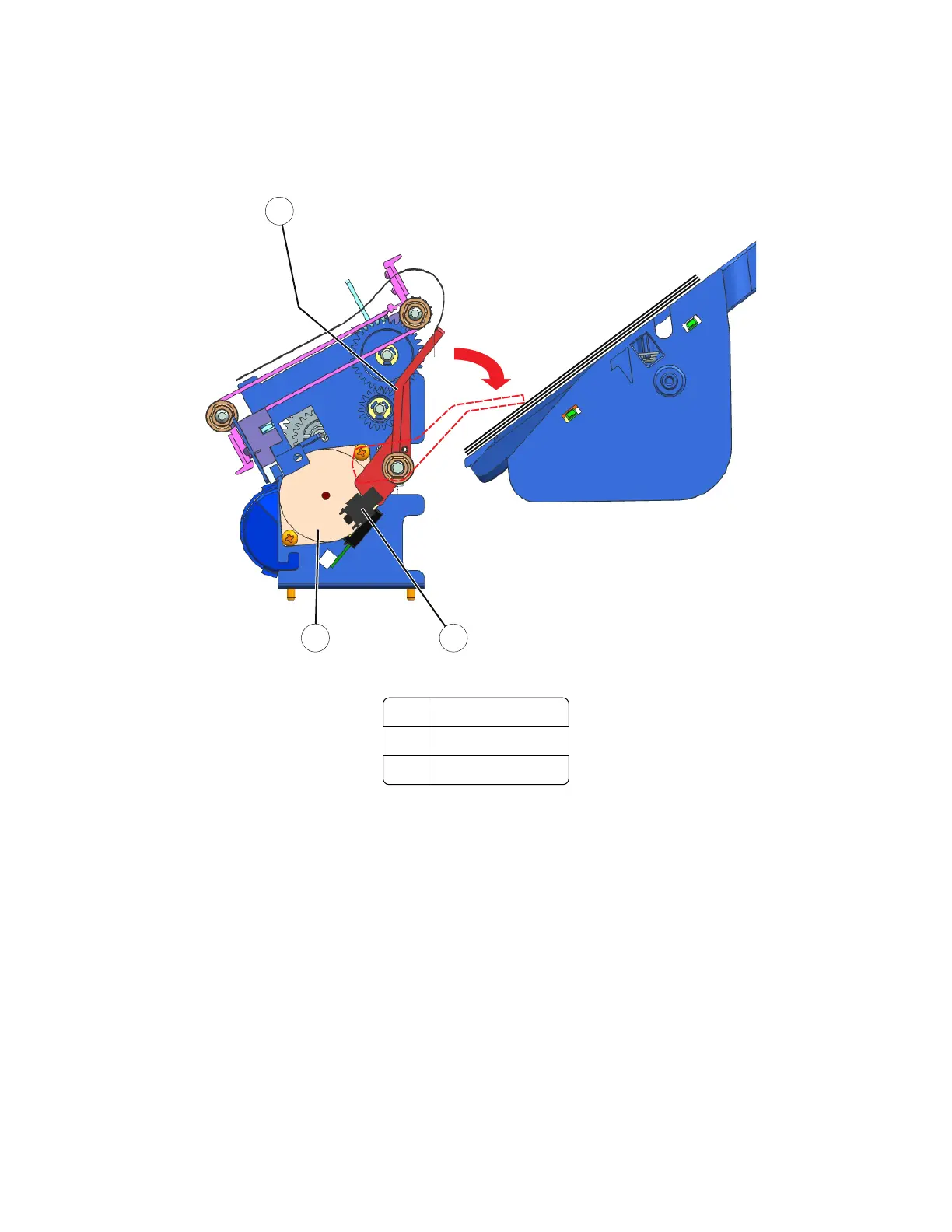

SHPF bin clamp drive
1
23
1 Bin clamp
2 Sensor (bin clamp)
3 Motor (bin clamp)
For each sheet that is ejected to the bin, the bin clamp lowers and holds the paper stack. If the level of the
paper stack on the bin reaches the sensor (bin full), then the elevator bin will lower to accommodate more
sheets.
The motor (bin clamp) controls the bin clamp. The clamp is detected at its home position by the sensor (bin
clamp).
4064
Theory of operation
912

Lexmark MS823 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 65 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 300, 000 pages
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
Processor Speed	1 GHz
Standard Memory	512 MB
Connectivity	USB, Ethernet
Standard Input Capacity	650 pages
Maximum Paper Input	4, 400 sheets
Media Types Supported	Plain paper, Card stock, Envelopes, Labels, Transparencies
Operating System Compatibility	Windows, Linux
Duplex Printing	Automatic
