Lexmark MS823 Service Manual

Mailbox upper interface cable removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 648,
2 Remove the mailbox left cover. See “Mailbox left cover removal” on page 654.

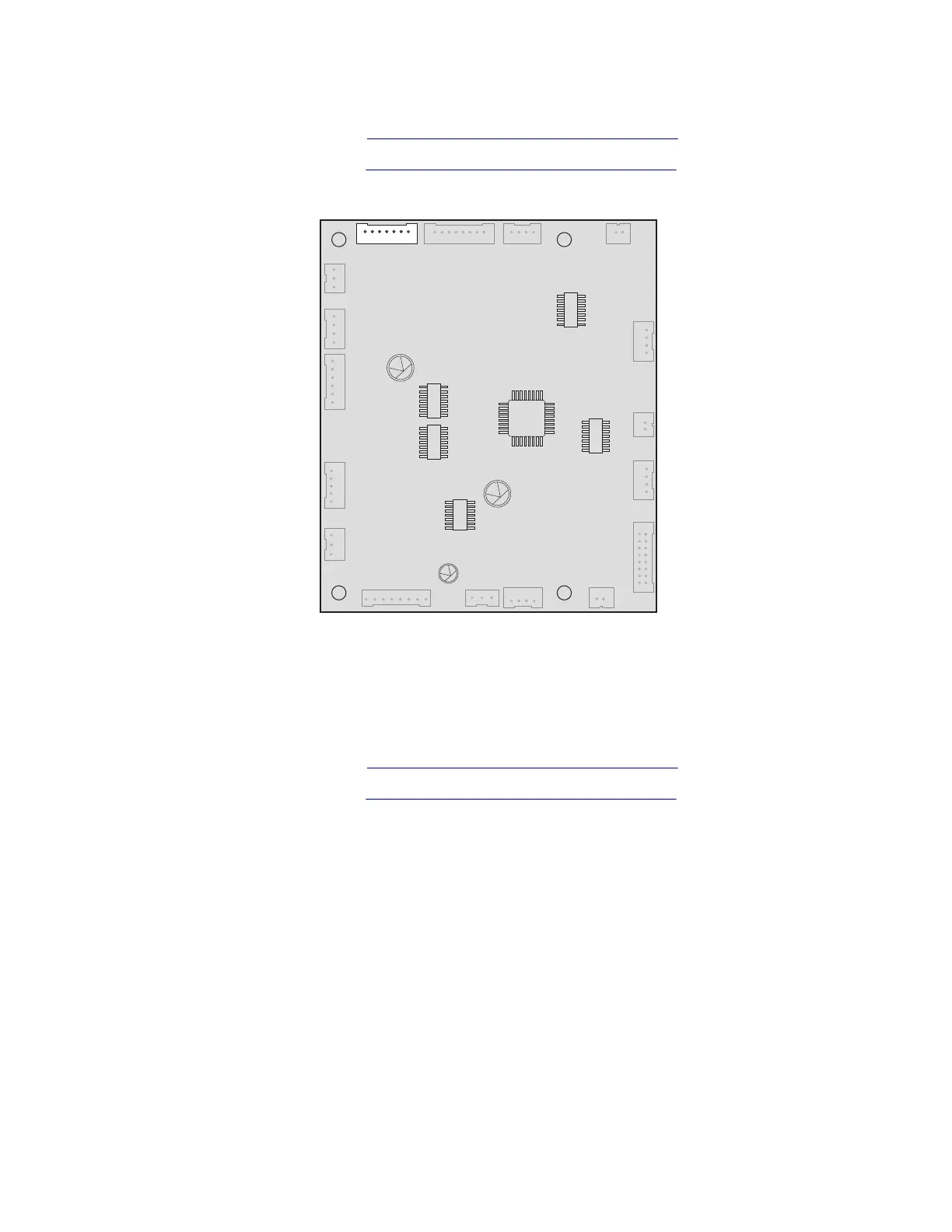

3 Disconnect the upper interface cable J1B from the controller board.
4 Crimp both connector pins, using pliers to make them fit the pin holes. Push the connector o its slot.
5 Remove the upper interface cable.
Motor (mailbox diverter) removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 648.
2 Remove the mailbox left cover. See “Mailbox left cover removal” on page 654.
4064
Parts removal
672

Lexmark MS823 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 65 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 300, 000 pages
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
Processor Speed	1 GHz
Standard Memory	512 MB
Connectivity	USB, Ethernet
Standard Input Capacity	650 pages
Maximum Paper Input	4, 400 sheets
Media Types Supported	Plain paper, Card stock, Envelopes, Labels, Transparencies
Operating System Compatibility	Windows, Linux
Duplex Printing	Automatic
