Lexmark MS823 Service Manual

Optional high capacity output expander operation

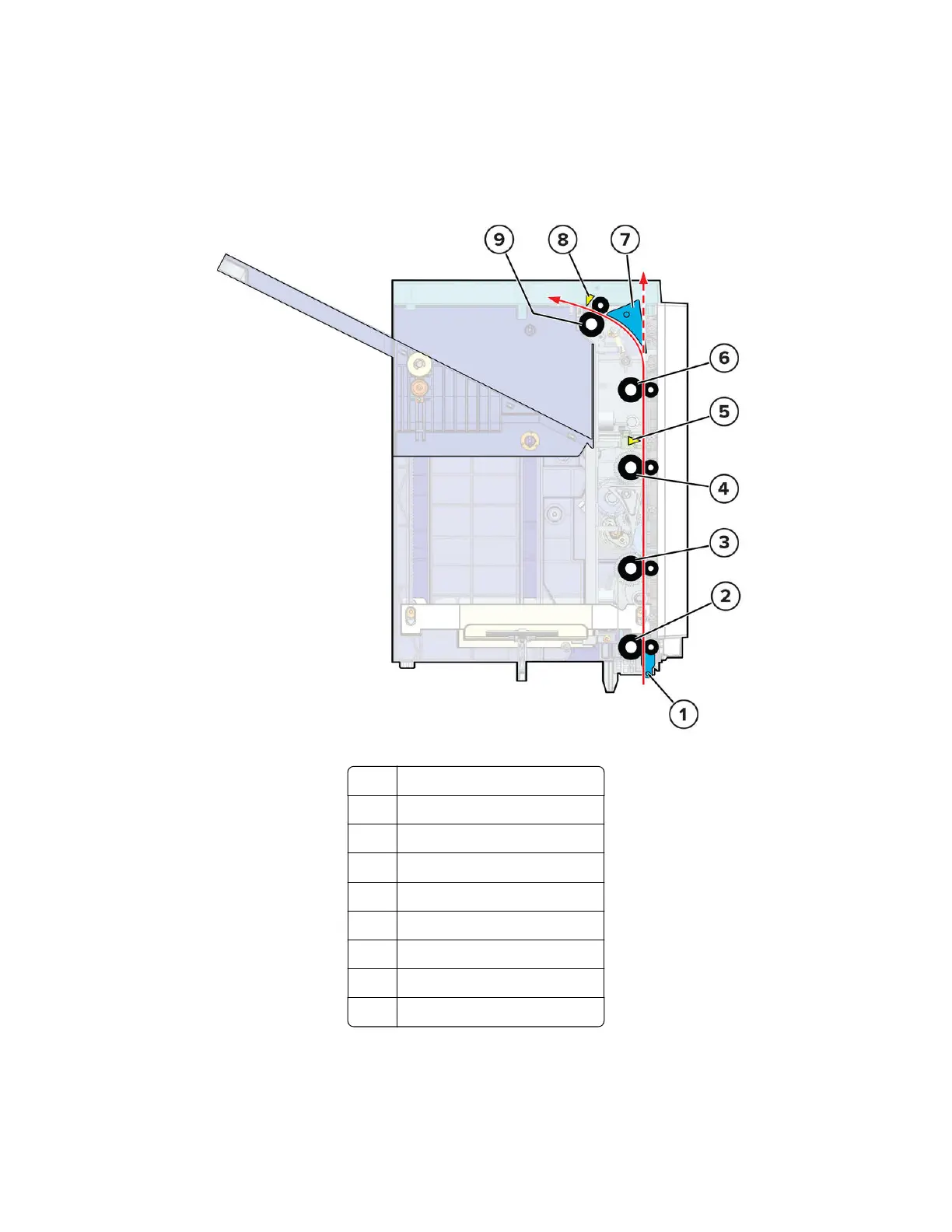

High capacity output expander paper path
1 Diverter plunger
2 HCOE transport roller 1
3 HCOE transport roller 2
4 HCOE transport roller 3
5 Sensor (HCOE pass‑through)
6 HCOE transport roller 4
7 Diverter
8 Sensor (HCOE bin full)
9 HCOE exit roller
The high capacity output expander increases the output capacity of the printer. Rollers along the paper path
control the movement of the paper depending on the destination bin.
4064
Theory of operation
894

Lexmark MS823 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 65 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 300, 000 pages
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
Processor Speed	1 GHz
Standard Memory	512 MB
Connectivity	USB, Ethernet
Standard Input Capacity	650 pages
Maximum Paper Input	4, 400 sheets
Media Types Supported	Plain paper, Card stock, Envelopes, Labels, Transparencies
Operating System Compatibility	Windows, Linux
Duplex Printing	Automatic
