Lexmark MS823 Service Manual

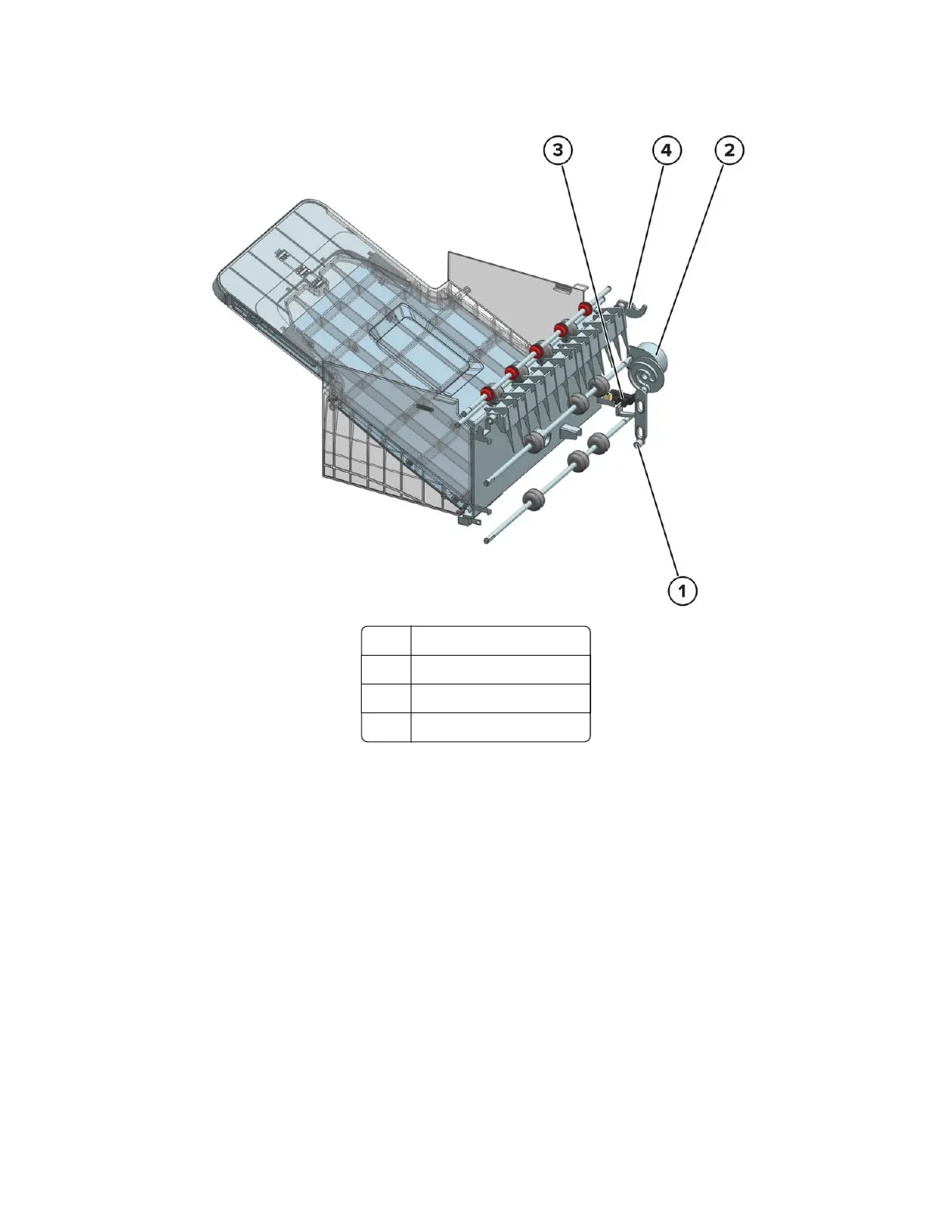

Output expander diverter drive
1 Diverter plunger
2 Motor (diverter)
3 Sensor (diverter plunger)
4 Diverter
The diverter (from the printer or optional bin) under the expander switches to open up the paper path of the
expander. The diverter plunger controls the position of the diverter below it. The motor (diverter) drives the
movement of the plunger. The sensor (diverter plunger) detects the position of the plunger.
By default, the diverter redirects the paper to the expander bin. Paper will only go straight up if an optional bin
on top of the expander is the destination bin of the print job.
4064
Theory of operation
892
