Lexmark MS823 Service Manual

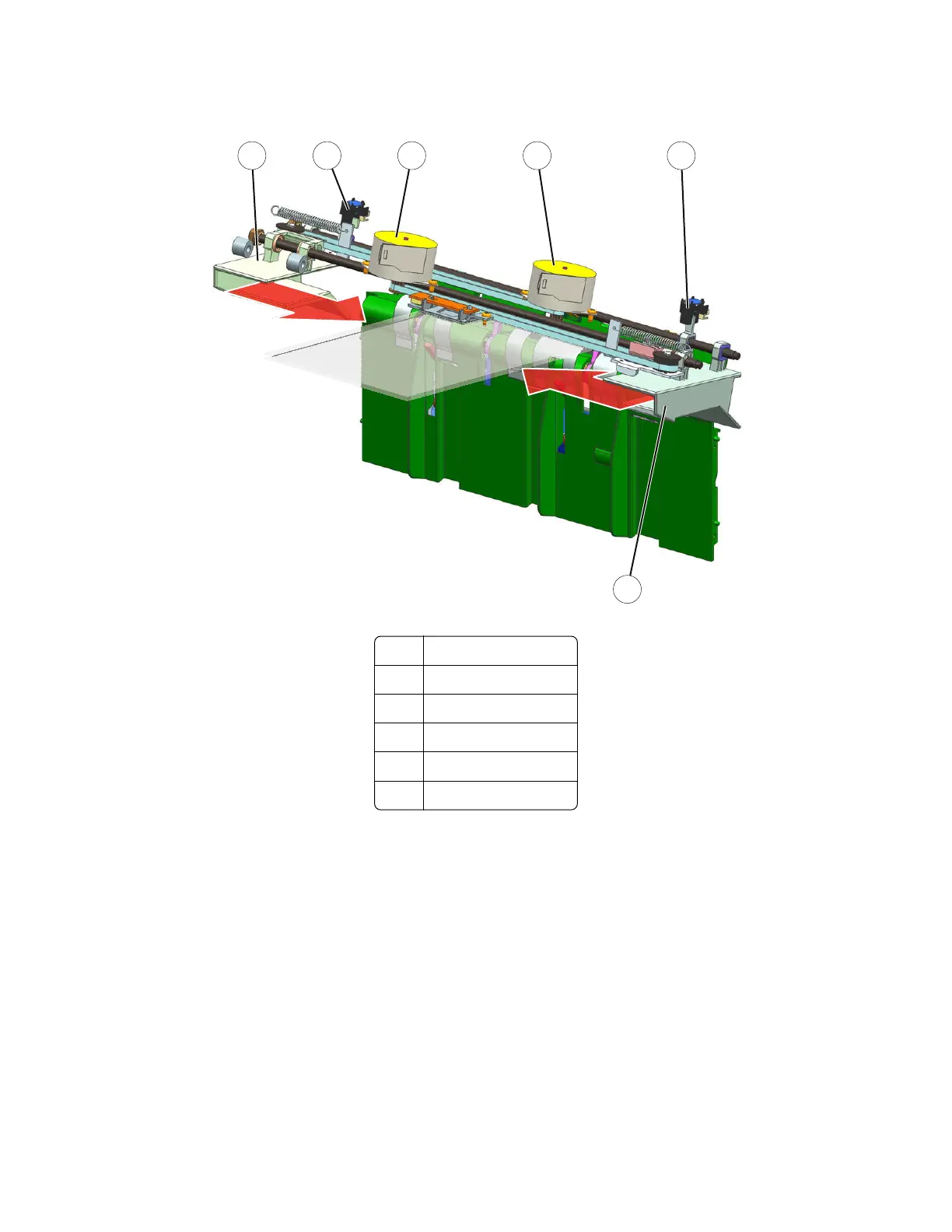

Long edge alignments
32 5 6 4
1
1 Right tamper
2 Left tamper
3 Sensor (left tamper)
4 Sensor (right tamper)
5 Motor (right tamper)
6 Motor (left tamper)
On the tamper tray, each sheet that is added to the paper stack is aligned by tampers. The tampers push inward
to align the long edges of the paper stack. Two motors control the position and movement of the tampers. Each
tamper is detected by its sensor at its home position.
4064
Theory of operation
908

Lexmark MS823 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 65 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 300, 000 pages
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
Processor Speed	1 GHz
Standard Memory	512 MB
Connectivity	USB, Ethernet
Standard Input Capacity	650 pages
Maximum Paper Input	4, 400 sheets
Media Types Supported	Plain paper, Card stock, Envelopes, Labels, Transparencies
Operating System Compatibility	Windows, Linux
Duplex Printing	Automatic
