USING THE PROGRAM

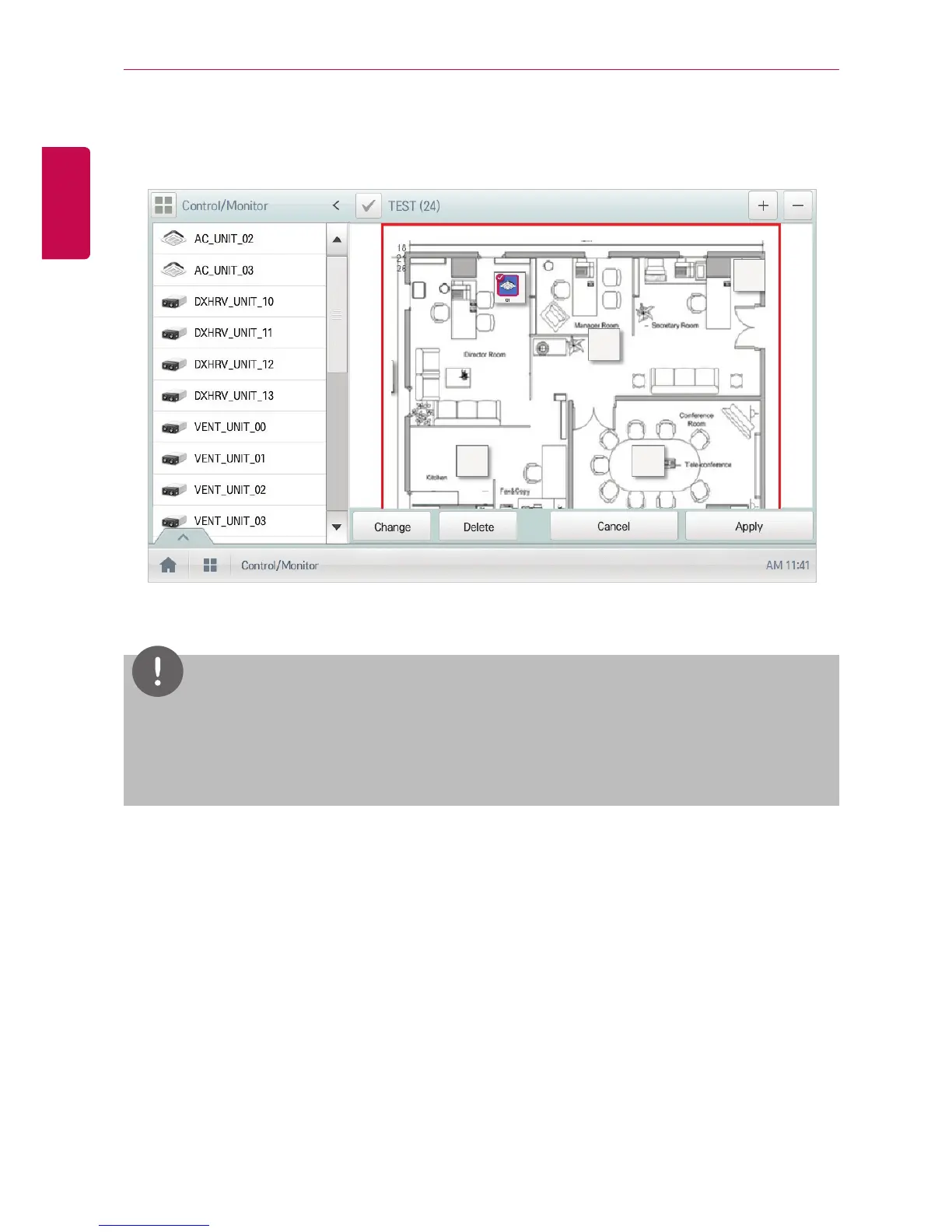

7. In the device list, select a device you want to display on the floor plan and click(touch) the device
location on the plan.
• To delete a device from the plan, double-click(touch) its icon.
8. To complete the registration of the floor plan, click(touch) the [Apply] button.
NOTES
y
To add a floor plan, put image file in USB root directory.
y
To add a floor plan, you can only use jpg, gif, or png file formats.
y
To add a floor plan, a 2MB or less image size is recommended.
To Next Page
