2.5. Input Cards
2.5.1. MX-DVI-HDCP-IB

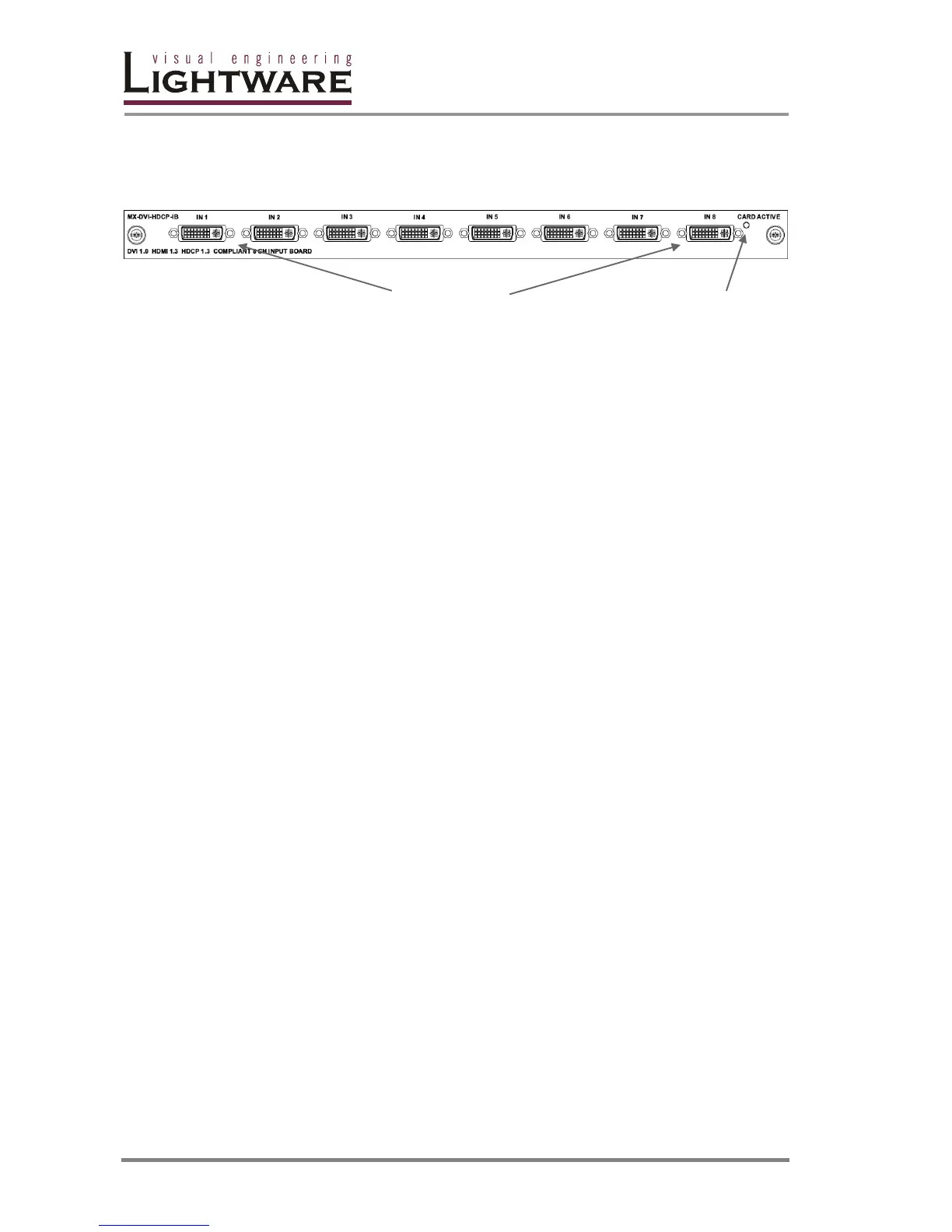

DVI connectors Card active LED
This 8-channel DVI-D (digital only) input card supports single link DVI signals up to
165MHz pixel clock and HDMI 1.3 signals including deep color modes and audio
signals. The built-in cable equalization enables the use of long cables as specified
on page 25.
Connectors 8 DVI-I (only digital pins are connected)
Cable equalization Automatic or manual, up to 40dB
Signal reclocking Yes
DVI support Up to 165MHz pixel clock, single link only
HDMI support HDMI 1.3 compliant
Up to 225MHz pixel clock
16, 24, 30 and 36 bits/pixel are supported
RGB, YUV 4:4:4 and YUV 4:2:2 modes
Audio PCM (up to 192 kHz and 8 channels), Dolby, DTS, MLP,
Dolby True-HD and DTS-HD Master Audio support
HDCP HDCP 1.3 compliant
Signal monitoring PWR5V, SCDT
HDMI/DVI mode discrimination
HDCP encryption status
Resolution, Vsync and Hsync frequencies
Color space
Audio information (type, sampling frequency, channels)
Timing parameters (front porch, back porch, pixel
repetition, TMDS and pixel clock frequency and so on)
Processing Color range compression or expansion
EDID emulation 256-byte E-EDID
