2. Modular router concept
MX8x8HDMI-Pro and MX8x8DVI-HDCP-Pro are fixed I/O size matrix switchers
with eight inputs and eight outputs respectively.
MX32x32 series and MX16x16 series Pro routers are modular matrix switchers that
allow building custom I/O sizes that meet the user’s requirements. Different types
of input and output cards give the maximum flexibility for rental and installation
signal transmission.
2.1. MX8x8 series

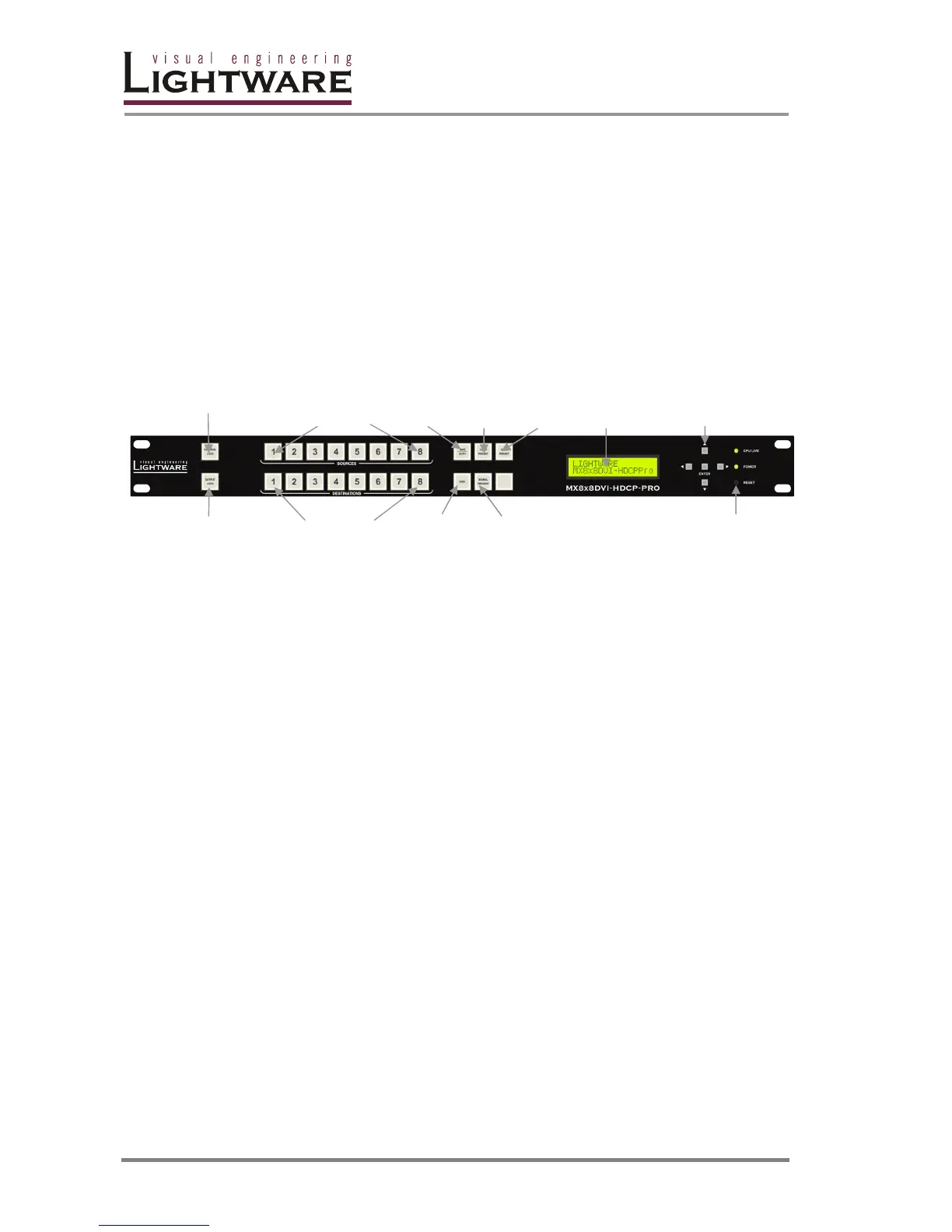

2.1.1. Front Panel view (all MX8x8 series)
CONTROL LOCK Sources Take/ Load Save Status Navigation
1 to 8 Autotake Preset Preset LCD buttons
OUTPUT Destinations EDID Signal Reset
LOCK 1 to 8 Present
Control Lock Disables or enables front panel operation. When it
illuminates red, operations on front panel are prohibited.
Output Lock Locks and protects one (or more) outputs. It inhibits
accidental input changing on protected outputs.
Sources Source buttons have three functions: to select an input,
to select a preset number and to view the selected input’s
state (take mode).
Destinations Destination buttons have two functions: to select an
output, or to view the selected output’s state.
Take/Autotake This button has two functions: displays the actual
switching mode of the router (TAKE mode or AUTOTAKE
mode) or executes switching in TAKE mode.
Load Preset Loads and executes a previously saved preset from one
of the preset memories.
Save Preset Stores actual matrix state in one of preset memories.
EDID Switches the LCD to EDID menu allowing EDID switch,
EDID save etc.
Signal Present Displays live sources and attached sinks on source and
destination buttons.
Status LCD 2x16-character LCD display for menu operations.
Navigation buttons (UP, DOWN, LEFT, RIGHT, ENTER) buttons for menu
navigation.
Reset Hardware reset button. It resets the whole router,
however saved settings, presets and EDIDs will be
preserved.
Power LED Green LED indicating that the unit is powered on.
CPU LIVE LED Green blinking LED indicating normal operation.
