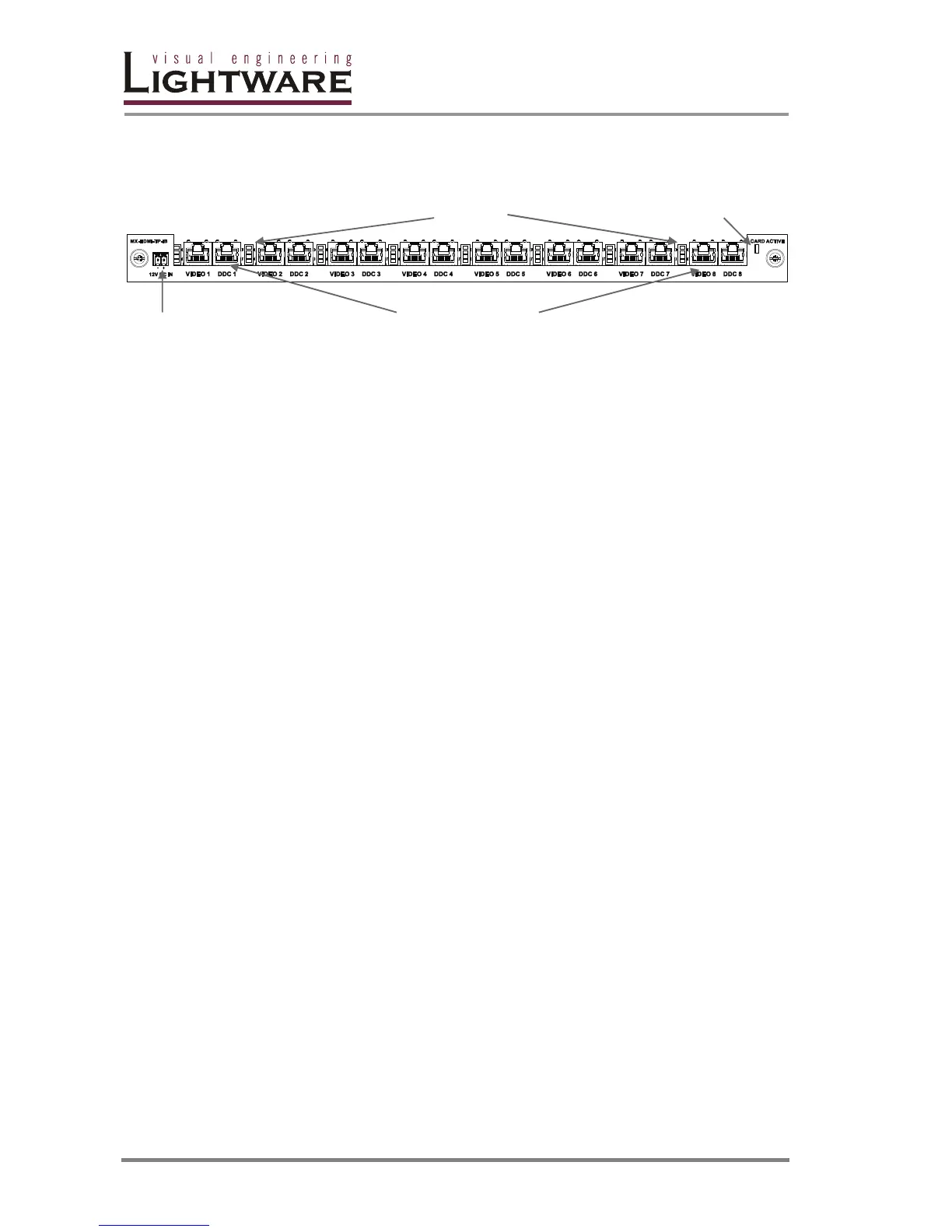

2.5.3. MX-HDMI-TP-IB
Status LEDs Card active LED
12V DC power RJ45 connectors (Video and DDC)
This 8-channel HDMI input card is equipped with two RJ45 connectors per each
input. The card has exactly the same capabilities as the MX-DVI-HDCP-IB
described above in section 2.5.1. There are three status LEDs next to every input,
which indicate the following (from bottom to top):
SCDT Valid video signal is detected and sync can be extracted.
HDMI If this LED illuminates, the incoming signal is HDMI. If it
does not illuminate then the incoming signal is DVI.
HDCP It illuminates red when the incoming signal is content
protected and HDCP encrypted.
During the booting process the state of these LEDs is undetermined.
Connectors 8 HDMI Type A connectors
Signal reclocking Yes
DVI support Up to 165MHz pixel clock, single link only
HDMI support HDMI 1.3 compliant
Up to 225MHz pixel clock
16, 24, 30 and 36 bits/pixel are supported
RGB, YUV 4:4:4 and YUV 4:2:2 modes
Audio PCM (up to 192 kHz and 8 channels), Dolby, DTS, MLP,
Dolby True-HD and DTS-HD Master Audio support
HDCP HDCP 1.3 compliant
Signal monitoring The same as described above in section 2.5.1
Processing Color range compression or expansion
EDID emulation 256-byte E-EDID
The pin assignment for the RJ45 connectors can be found on page 23. The
maximum cable lengths are specified on page 25.
This card is compatible with the following Lightware products:
DVI-HDCP-TP-TX100
HDMI-HDCP-TP-TX100
MX-HDMI-TP-OB (see 2.6.3.)
DVI-TP-TX200 (DVI signals only, HDCP is not supported)
MX-DVI-TP-OB card (DVI signals only, HDCP is not supported)
For further details on these devices, please visit the http://www.lightware.eu
webpage.
