2.6. Output Cards
2.6.1. MX-DVI-HDCP-OB

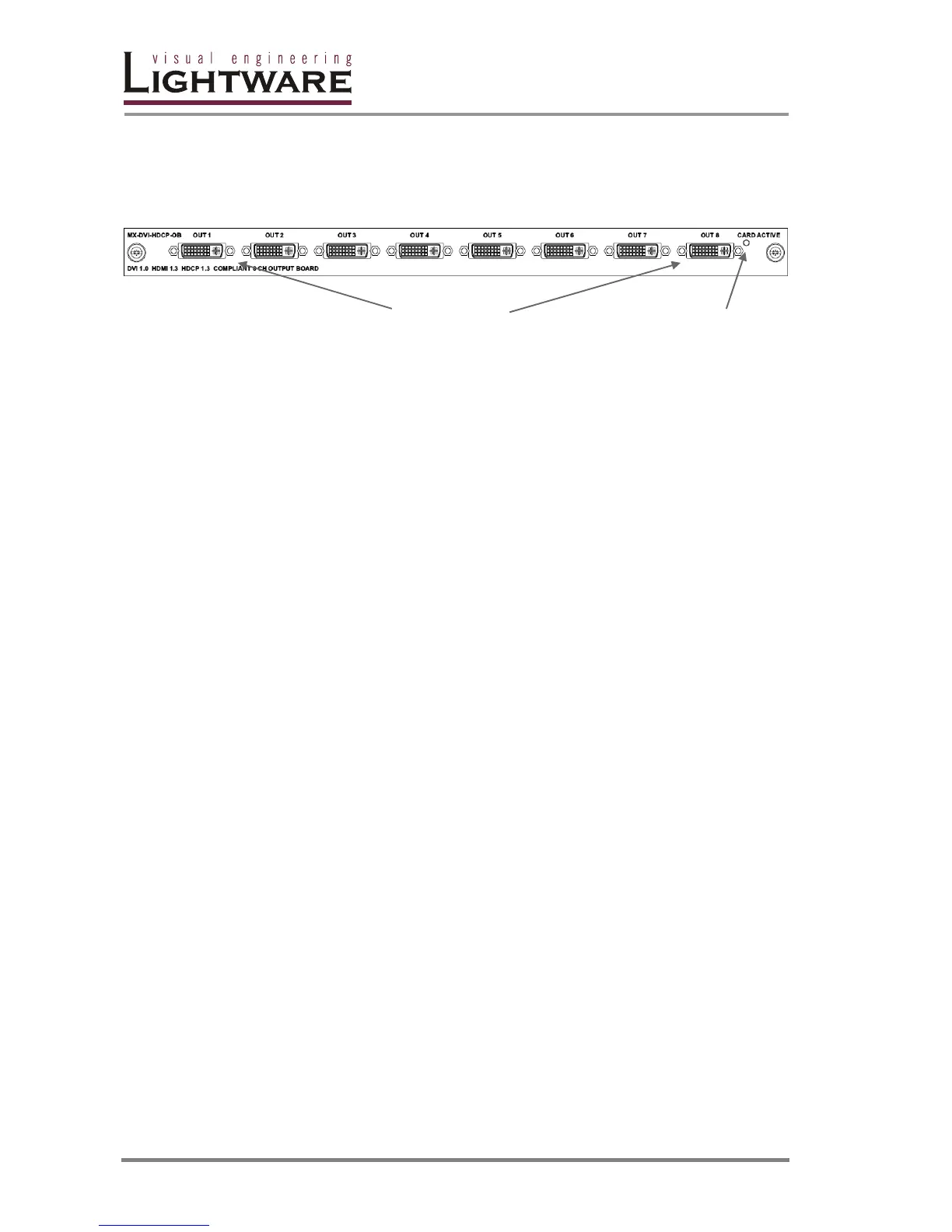

DVI connectors Card active LED
8-channel DVI-D (digital only) output card. It is compatible with HDMI1.3 and
HDCP standards and allows making specific conversions independently on each
output port. These conversions can be done automatically based on the EDID of
the display or can be manipulated manually.
Connectors 8 DVI-I (only digital pins are connected)
Signal reclocking Yes
DVI support Up to 165MHz pixel clock, single link only
HDMI support Up to 225MHz pixel clock, HDMI 1.3 compatible
Audio PCM (up to 192 kHz and 8 channels), Dolby, DTS, MLP,
Dolby True-HD and DTS-HD Master Audio support
HDCP HDCP 1.3 compliant
Signal monitoring Same as described at MX-DVI-HDCP-IB.
Processing HDMI-to-DVI, DVI-to-HDMI,
conversions between 24/30/36 bpp modes,
any-to-any color space converter,
color range compression or expansion,
downsampling 2ch PCM audio by 2x or 4x.
