6.4. EDID Router operation
By clicking on the EDID Management menu, the EDID router page appears.
When the user enters the menu for the first time, the Web Manager starts to
download the whole EDID list from the matrix. It may take 2 minutes.
After the list is downloaded, the current status of the MATRIX SWITCHER EDID is
shown in the three textboxes.
The Emulated EDIDs window contains the resolutions and the vendor names of
the EDID reported to the PC for each input separately. The Last attached
Monitor's EDIDs window contains the resolutions and vendor names of the display
devices connected to matrix switcher's output.
6.4.1. Change emulated EDID at one or all inputs

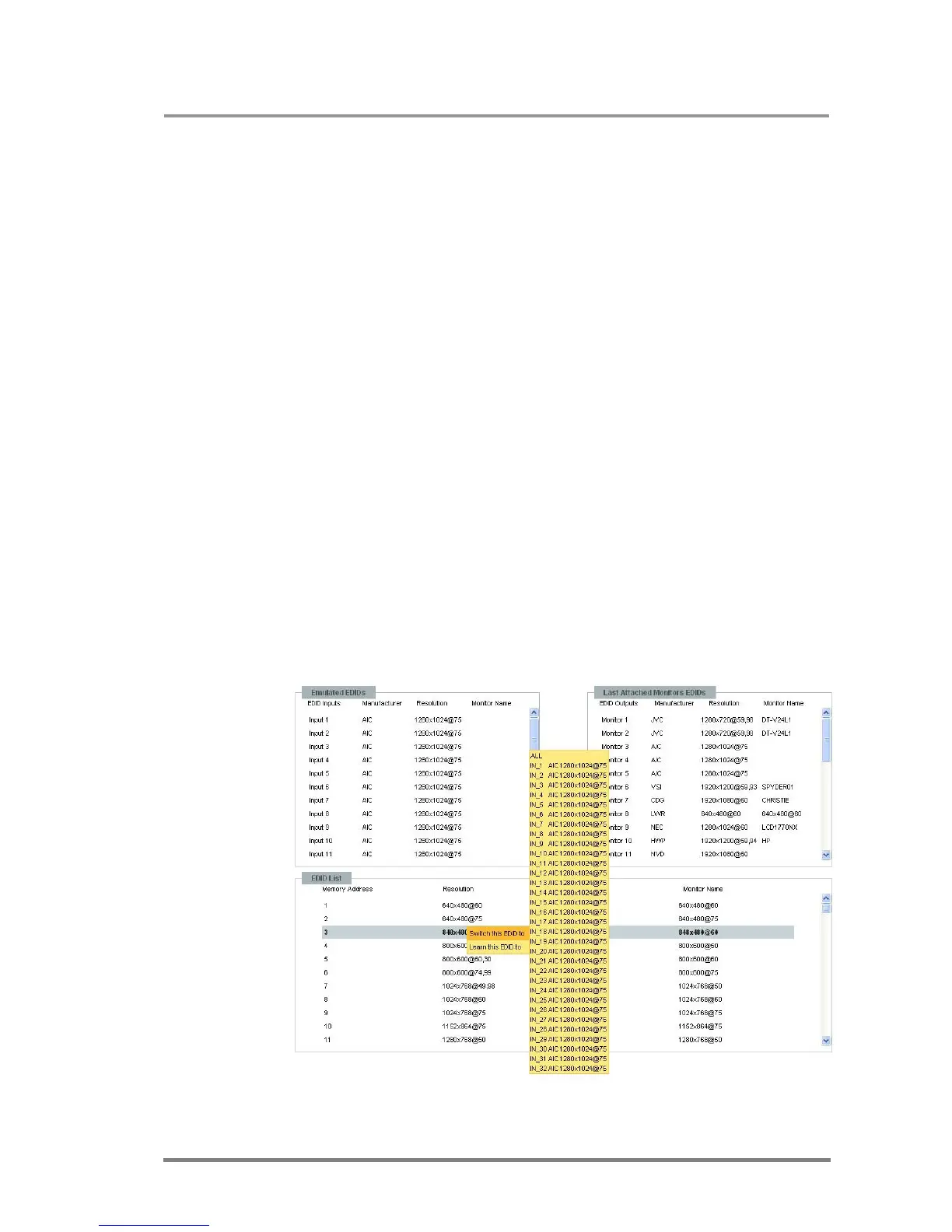

All EDIDs are enumerated in the EDID list window.
Step 1 Select the desired EDID from this list with a left mouse
click, a pop-up menu appears.
Step 2 Right click on the Switch this EDID to item. A pop-up
menu appears with an input name list.
Step 3 Right click on the desired input, or on the ALL text. Now
the EDID has been changed on selected input as the
message box shows in the left corner.
Info: Switching to ALL inputs may take several seconds.
Info: The user can switch and learn EDIDs in the Last Attached Monitors EDIDs
window.
