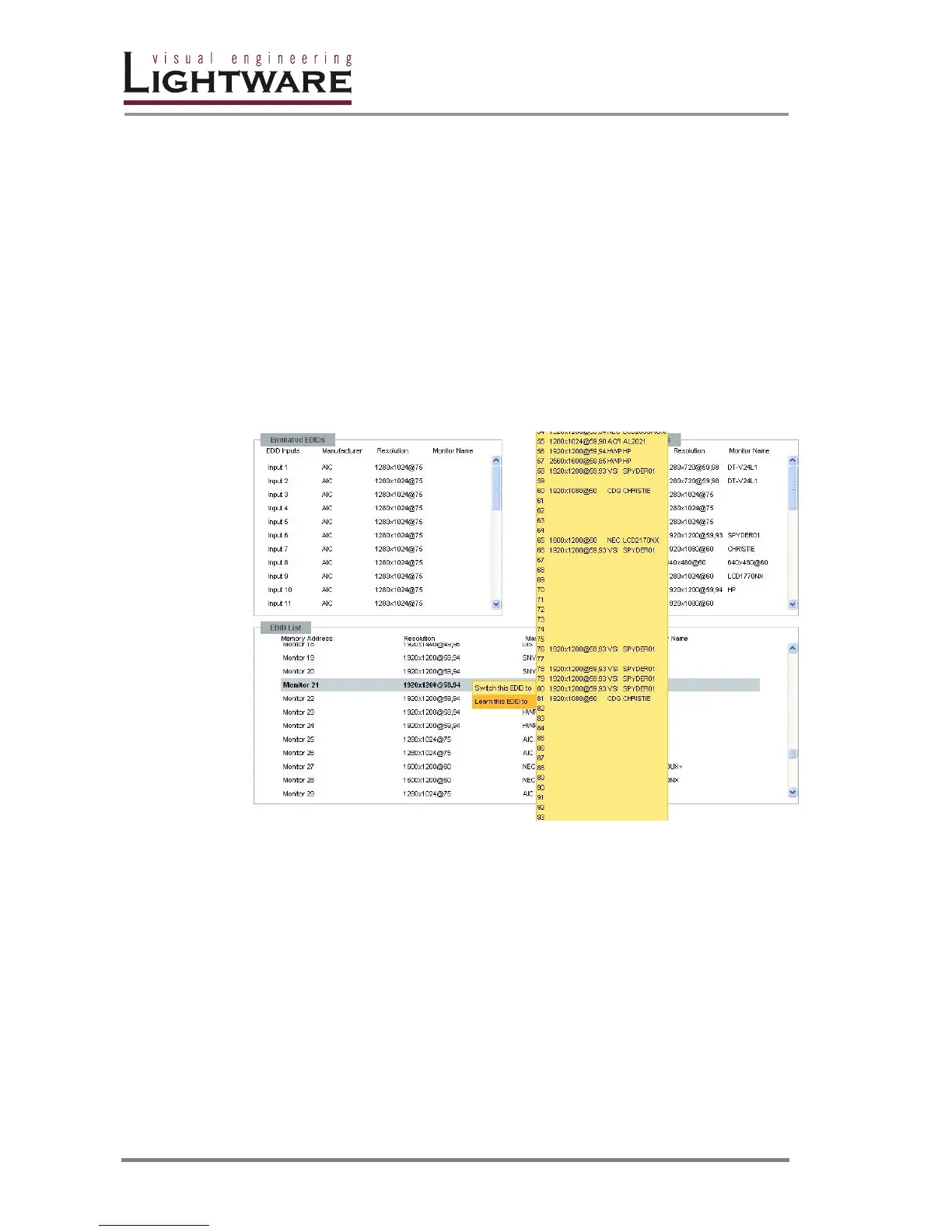

6.4.2. Learn EDID from attached display device
The matrix switcher can learn the EDID from the connected display device and can
store it in one of the user programmable memoriy locations. Every monitor's EDID
is listed in the EDID list window, and in the Last Attached Monitors EDIDs
window.
Step 1 Right click on the desired monitor's EDID from the list.
Step 2 Right click on the Learn this EDID to submenu item. A
pop-up window will show the memory locations from 50
to 100, which are available for the user.
Step 3 Right click on the desired memory location. The Web
Manager refreshes the lists in a few seconds, and a
massage box indicates the change.
6.5. Status
Installed cards, the router's health, firmware and hardware versions are displayed
in this page.
With the Refresh button, the user can update the temperature, voltage, and fan
values.
Note: FAN values are not accessible in the MX8X8 frame.
