MX32x32DVI-HDCP-Pro and HDMI-Pro
User’s Manual v1.0
Page 35/ 109

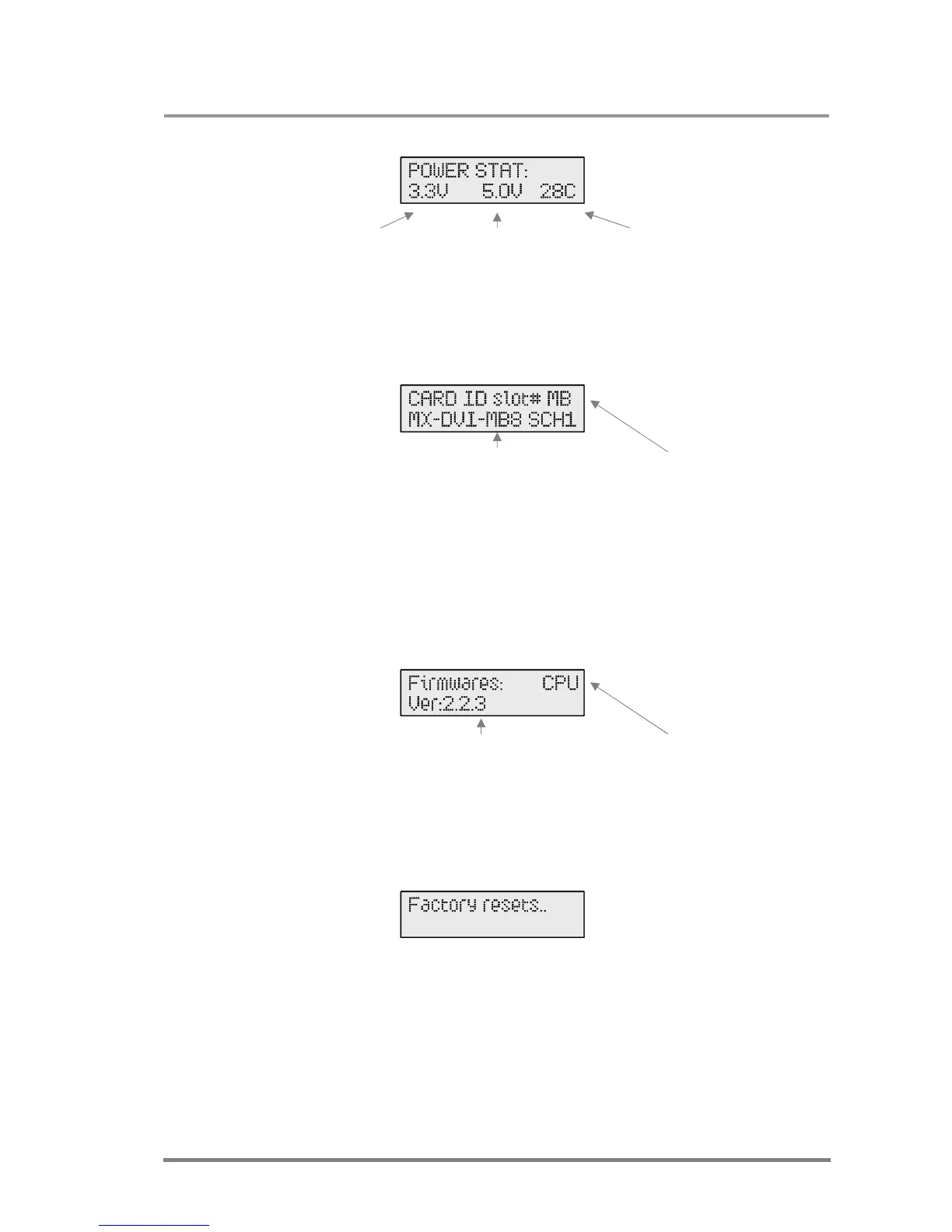

Power status
Internal 3.3V supply Internal 5.0V supply Internal temperature
You are able to check here the DC voltages and the internal temperature. If these
values are out of the safe interval, you will get a warn message on the LCD screen
regardless of what menu is selected.
Cards ID slot
Card name and version Position (MB, I1-I4, O1-O4)
This submenu shows the hardware description strings of the installed cards. You
can view the installed cards by pressing UP and DOWN buttons. The position is
shown in the top right corner. The possible values are:
MB Motherboard
I1, I2, I3, I4 Input card slots
O1, O2, O3, O4 Output card slots
Firmwares
Firmware version Name
It shows the firmware version numbers of the CPU, EDID, web server, web content
and the front panel control board(s). Press the UP and DOWN buttons to view the
desired firmware.
Factory resets
Here you are able to recover the original factory settings if something went wrong.
There are more factory reset options that you can select:
IP reset It resets the IP settings to factory default.
(192.168.254.254:10001, mask:255.255.0.0, no gateway)
IO Card reset Resets all settings related to the IO cards except the
EDID routings.
HDCP reset Resets the internal HDCP key cache. It is useful when a
source device fails because of too many downstream
connections.
