Page 107 of 295
Potentiometer
Potentiometer cables:
Columns with Potentiometer feedback option require specific actuator cables, both for termination through top-plate (option Txxx) and through side-entry
(option Sxxx).

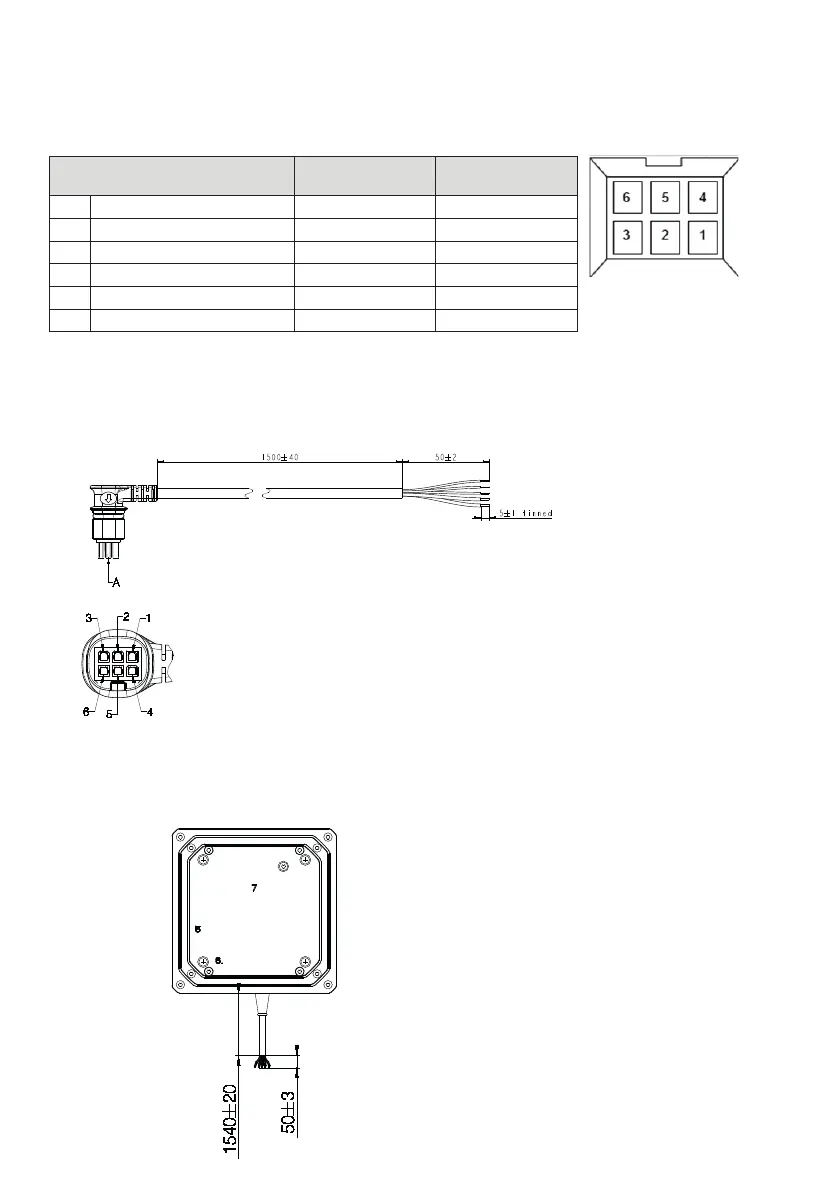

Table 1, connection to the motor and to the potentiometer and their colour.
Drawing no. 0965213
Connection through top-plate:
Columns with cable termination through top-plate (combination Txxx), require a special external cable, with part number 0965213. The cable is 1,5 m
long, with open-end termination. The colours are described in the table above.
E1 (power switch) F6 (potentiometer)
Colour
Top plate connection
Colour
Side-entry connection
1 Potentiometer 0V Black Black
2 Not connected - -
3 M+ (motor/power) Brown Blue
4 Potentiometer output Yellow Orange
5 Potentiometer VCC Red Red
6 M- (motor/power) Blue Brown
Connection through side-entry:
Cable termination is open-end. Please see the figure below.
Please see table 1 for the connection to the motor and to the potentiometer and their colour.
