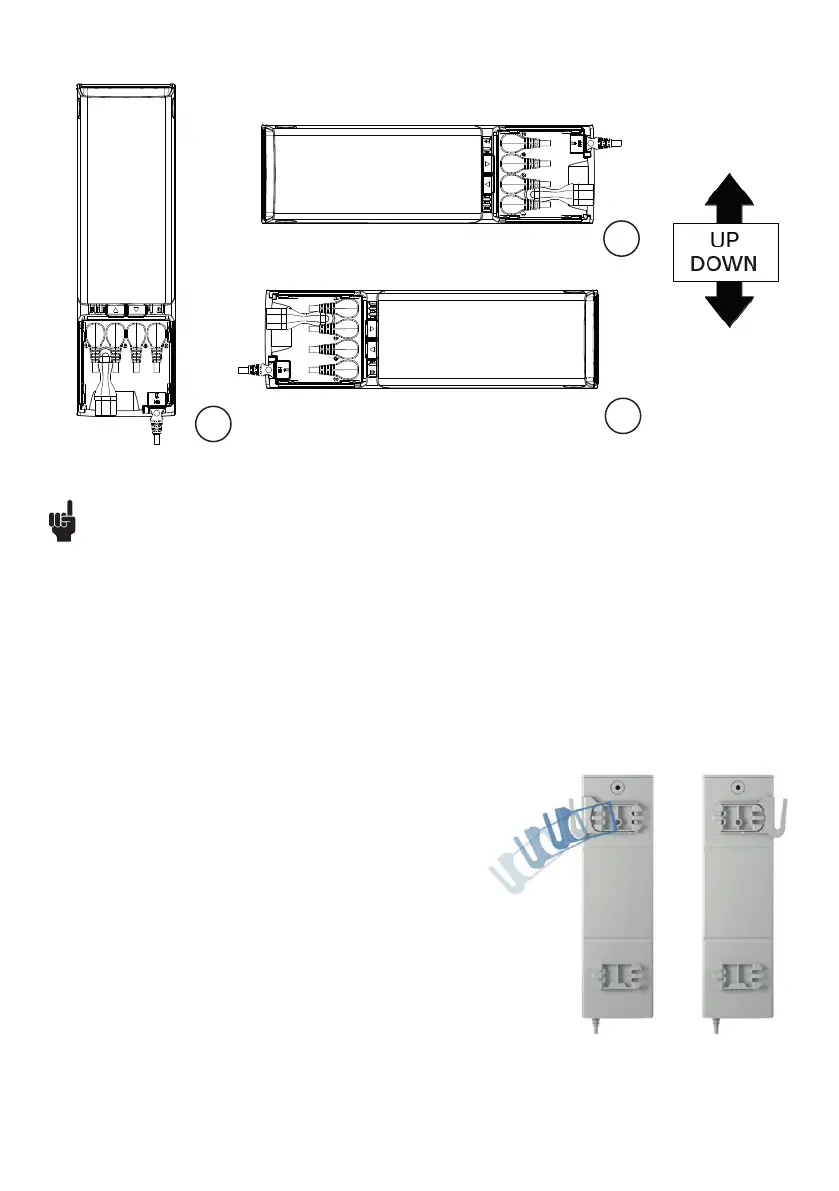

LIFT50 position for maintaining IP degree
Drawing no. 1039w4000
LIFT50 only comply with IPX6 when the control box is mounted correctly
(see illustration 1 and 2).
LIFT50 can be mounted as shown on the pictures above:
• Battery upwards, cable outlets downwards (see illustration 1)
• Control box lying on either side, seen from the front (see illustrations 2)
Cables and blind plugs must be inserted correctly in the control box to maintain the IP degree in washing or cleaning situations.
Recommendations - positioning
1
2
2
Cable hanger:
COL50 comes with a cable hanger for parking mains cable or hand control when
not in use.
The cable hanger can be located on either the left or right side of the control box.
Place hanger in designated grooves on the back before mounting the control box
on the steel bracket on the patient lift.
When mounted, the hanger is locked in place.
