Lloyd LS1 - Page 60

LS SERIES SERVICE MANUAL
ISSUE 4.0 MECHANICAL ASSEMBLIES 12

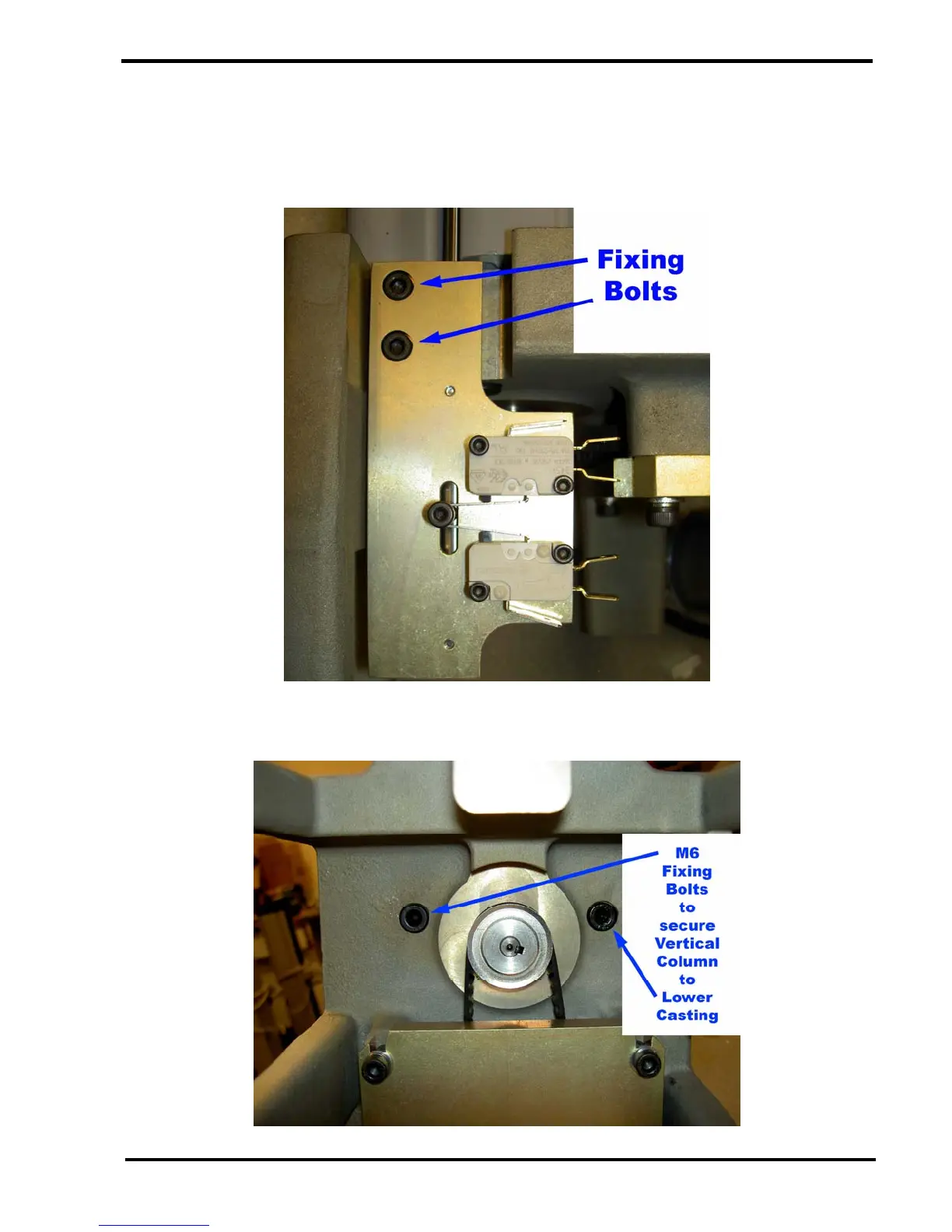

Remove the 2 off M4 socket head screws that secure the limit switch and rod assembly to the lower
casting then remove the switch assembly and rod.
Take care not to bend the rod when removing and storing the limit switch assembly.
Remove the 2 off M6 socket head screws securing the vertical column to the lower casting.
