Joint Robot Manipulator - Software Operation Manual
Advantech LNC Technology Co., Ltd.
6
2. Instructions of handheld box and screen configuration

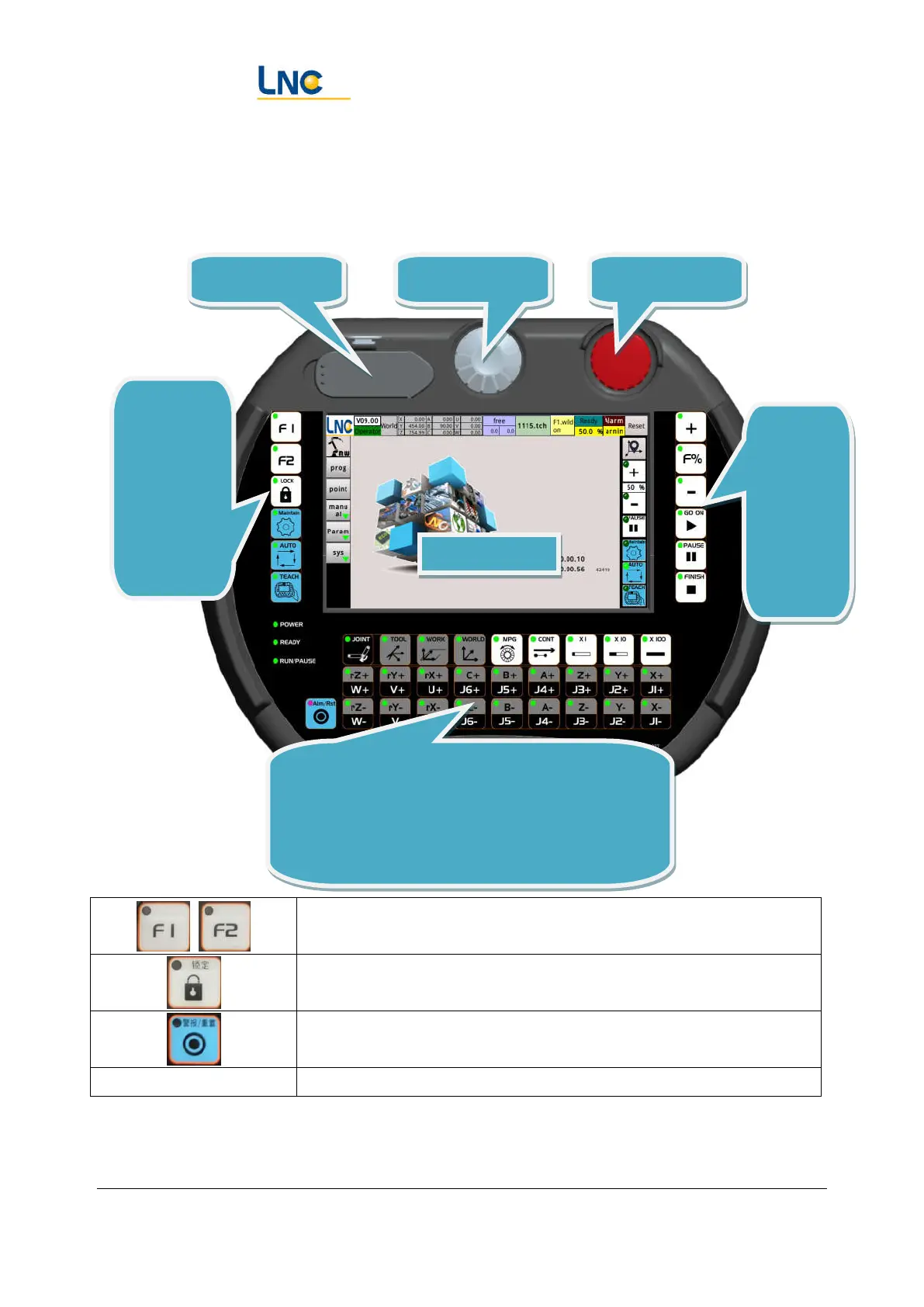

2.1. Shape of handheld box
User-defined button functions
Screen lock function, refer to the description of following sections
The light signal shows the current alarm and the button reset
system (equivalent to the reset button on the screen)
Other buttons Refer to the description of following sections
Handwheel Emergency USB interface
Rate
percentage
adjustment
Start
Pause
Stop
Custom
button
F1F2
Screen lock
Operating
mode
Manual operating coordinate system selection,
handwheel operation switching rate multiplier
(x1, x10, x100), axial key (J1~J9)
System reset button
To Next Page
