Basic System Setup4

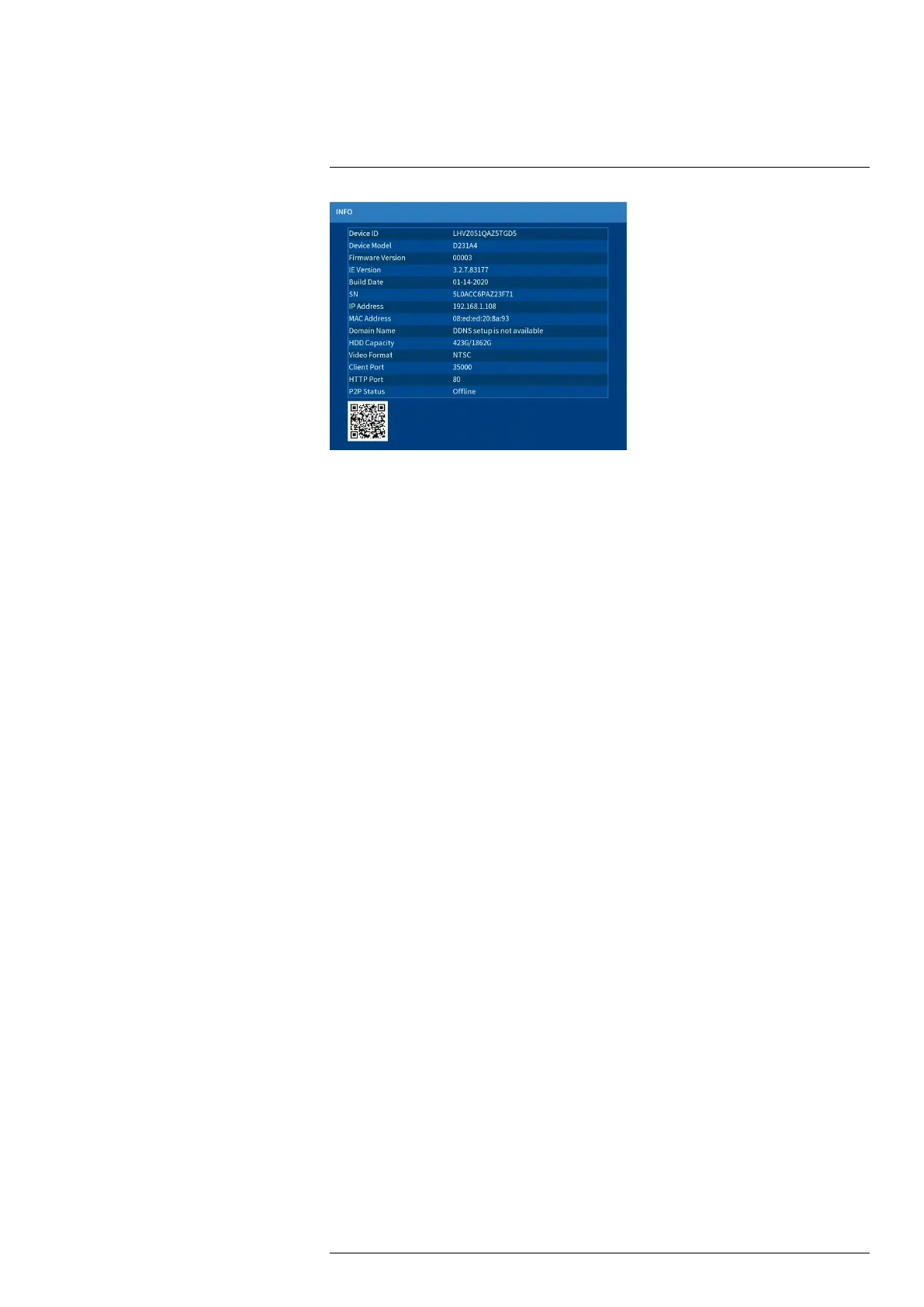

To quickly open a window that displays important system information:

• From the Live View display, right-click to open the Quick Menu, then click Info.

#LX400111; r. 3.0/56507/56507; en-US 9
