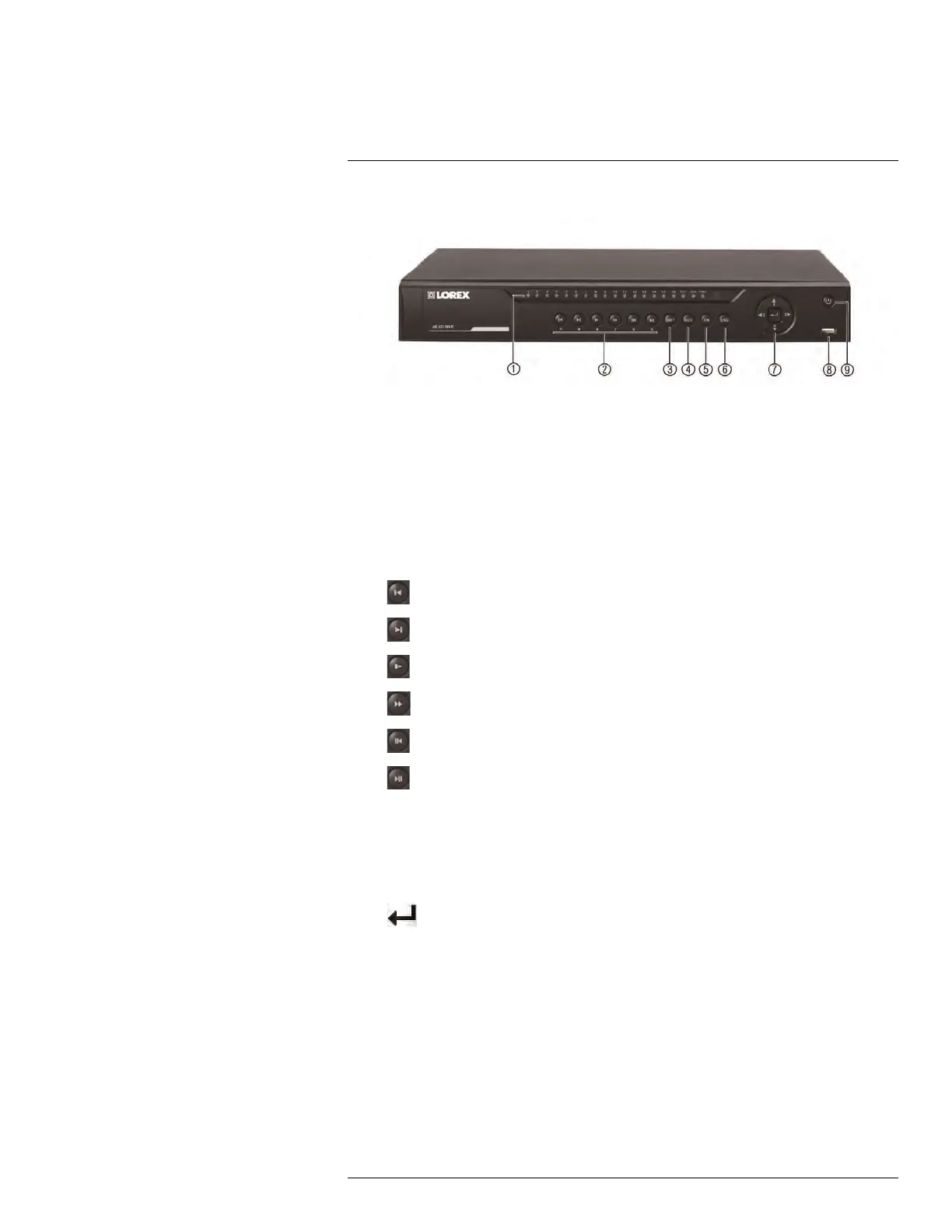

Front Panel (LNR600 Series)
3
1. IR receiver and LED indicators: IR receiver for the remote control. Keep the IR re-
ceiver clear from obstructions.
• Channel Indicators: Glow when camera is connected to the corresponding
channel.
• NET: Glows when network is in normal state. Turns off for network error.
• HDD: Glows to indicate hard drive is in normal state. Turns off when there is a hard
drive error.
• PWR: Glows to indicate the recorder is on.
2. Playback buttons:
•
Previous file: Press to skip to the previous video file on the system.
•
Next file: Press to skip to the next video file on the system.
•
Slow: Press to slow playback / decrease playback speed.
•
Fast: Press to speed up playback / increase playback speed.
•
Play backwards: Press to play video backwards / pause video.
•
Play: Press to play video / pause video.
3. SHIFT: During text input, press to switch input types.
4. REC: Press to open manual recording controls.
5. FN: Performs special functions in some menus.
6. ESC: In menus, press to go back / exit menus. In playback, press to return to live view.
7. Directional buttons:
•
: From live view, press once to open the System Information screen. In menus,
press to confirm menu options.
• Directional buttons: Press to move cursor in menus. In live view, press up to
change split screen layout; press left / right to select channels when single-channel
mode is selected.
8. USB port: Connect a USB mouse (included) or connect a USB thumb drive (not in-
cluded) for data backup or firmware upgrades.
9. Power button: Press and hold to power off the system (system password required).
Press to power the system back on.
