Rear Panel (LNR600 Series)
4

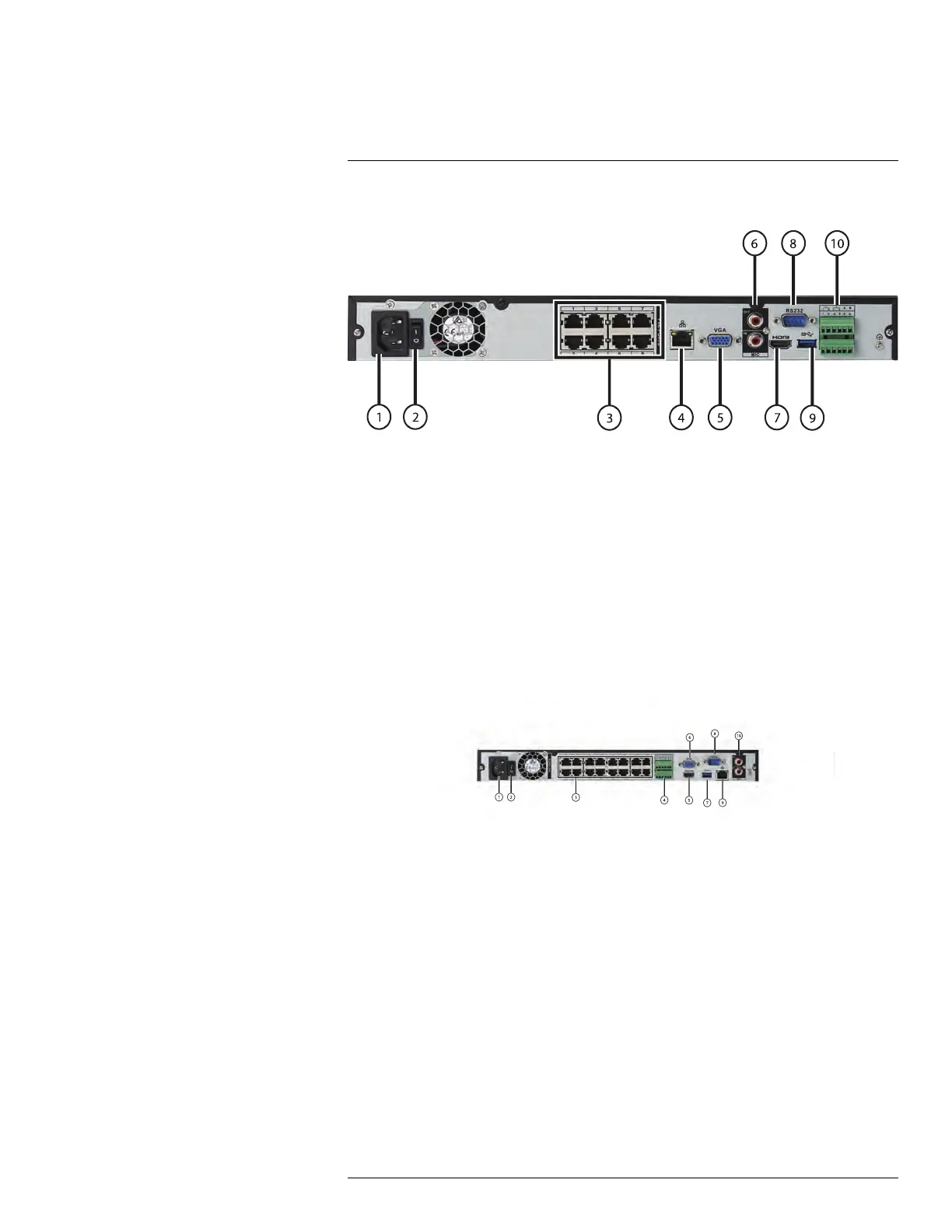

LNR608 (8-channel)
1. Power input: Connect the included AC power cable.
2. On / Off switch: Turns the NVR on or off.
3. PoE Ports: Connect IP cameras. Integrated PoE (Power Over Ethernet) ports provide
power to cameras and video connection to NVR.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
5. VGA: Connect a VGA monitor (not included) to view the system interface.
6. Audio IN/Audio OUT: Service only; not supported.
7. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
8. RS232: Service only; not supported.
9. USB port: Connect a USB mouse (included) or connect a USB thumb drive (not in-
cluded) for data backup or firmware upgrades.
10. Alarm block: Connect alarm/sensor devices (not included).
LNR616 (16–channel) / LNR632 (32–channel)
1. Power input: Connect the included AC power cable.
2. On / Off switch: Turns the NVR on or off.
3. PoE Ports: Connect IP cameras. Integrated PoE (Power Over Ethernet) ports provide
power to cameras and video connection to NVR.
4. Alarm block: Connect alarm/sensor devices (not included).
5. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
6. VGA: Connect a VGA monitor (not included) to view the system interface.
7. USB port: Connect a USB mouse (included) or connect a USB thumb drive (not in-
cluded) for data backup or firmware upgrades.
8. RS232: Service only; not supported.
9. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
10. Audio IN/Audio OUT: Service only; not supported.
#LX400078; r.36882/36882; en-US
