Basic Setup (LNR600 Series)
5
5.1 Step 1: Connect the IP Cameras
Option 1: Direct Connection to NVR

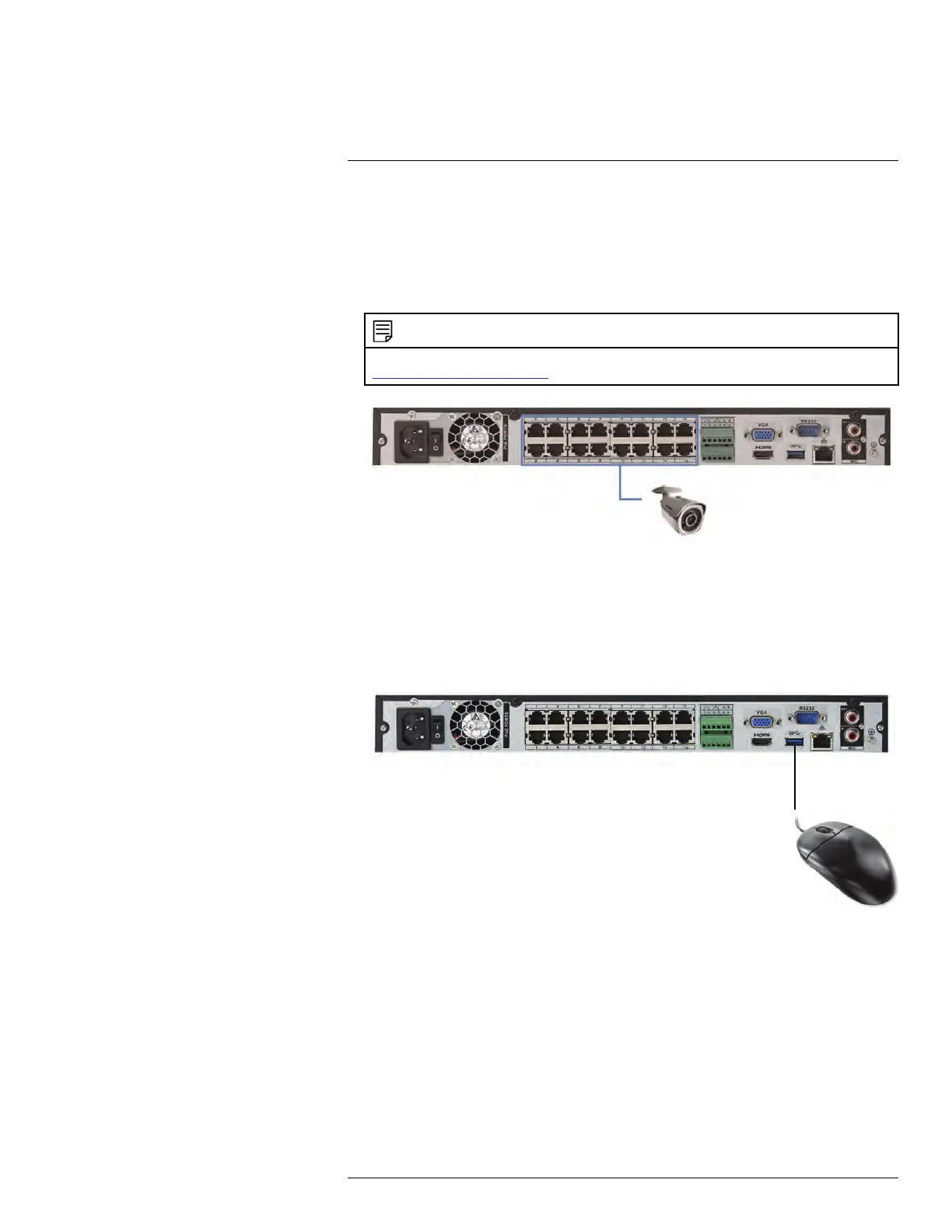

• Connect cameras to the PoE Ports on the rear panel of the NVR using Cat5e or higher
grade Ethernet cable. The cameras will appear on the NVR without any additional con-
figuration when the system starts up.
NOTE
Compatible with Lorex HD IP cameras. For a list of compatible cameras, please visit
www.lorextechnology.com/support
Option 2: Connect Cameras to Local Network
You can also connect your IP cameras to your local network for flexible installations. For
details, see 5.11 Connecting Cameras to the Local Area Network (LAN).
5.2 Step 2: Connect the Mouse
• Connect a USB mouse (included) to one of the USB ports.
5.3 Step 3: Connect the Ethernet Cable
• Connect an Ethernet cable (included) to the LAN port on the rear panel of the system.
Connect the other end of the Ethernet cable to a router on your network.
