LSIS XBL-C41A

Chapter 10 Example Program
10-4

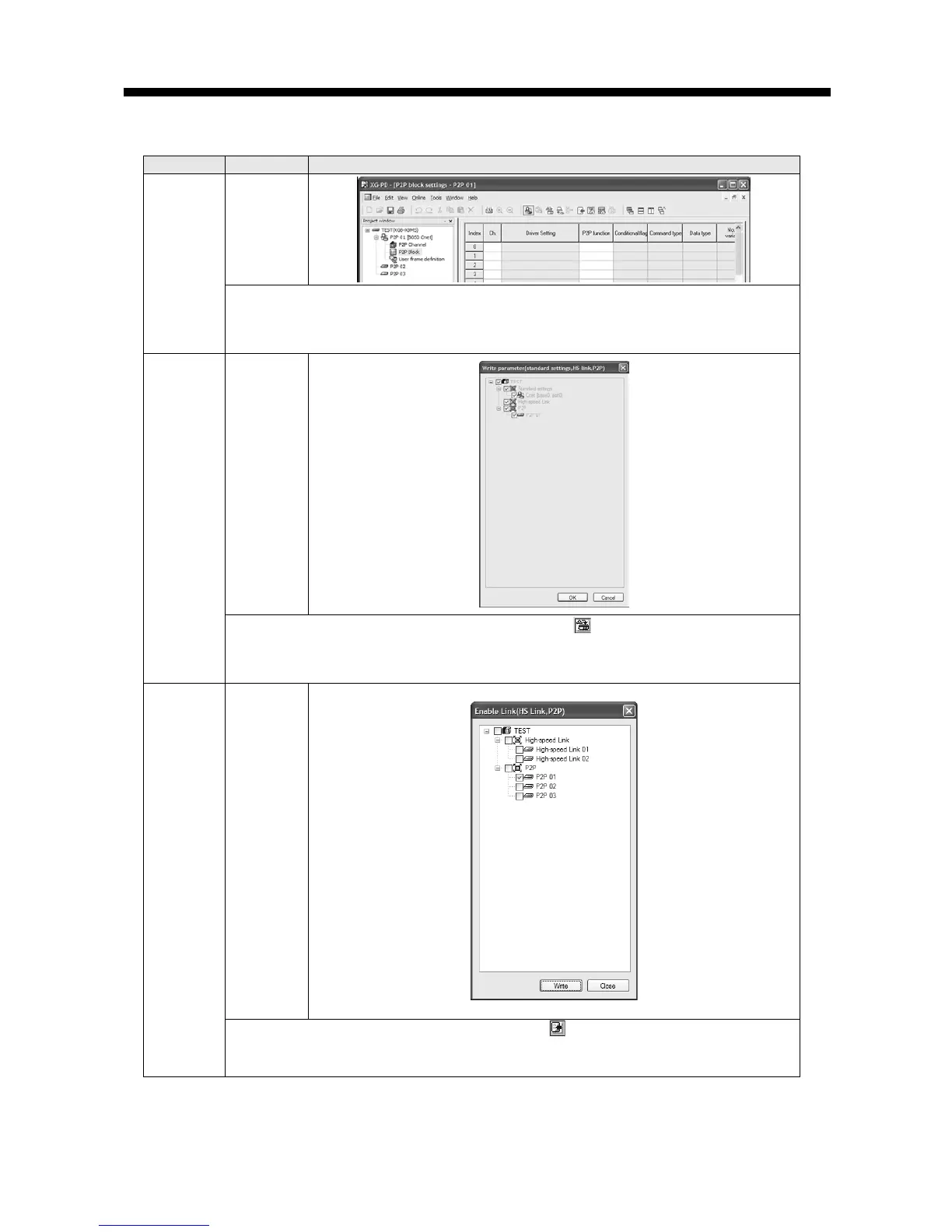

Sequence
Procedure
Setting method
5
P2P block
setting
1. P2P items are activated differently according to type of client set in the channel.
2. Write shell according to protocol
* In case of user definition frame, P2P block can be set when user definition frame is
written.
6
Writing
parameter
1. Select [Online] – [Write Parameter] or click icon ( ).
2. Click [OK].
3. If you press [OK], parameter is sent to PLC.
If you don’t reset relevant module, XGB Cnet I/F module acts as changed parameter.
7
Enabling
the link
1. Select [Online] – [Enable Link] or click icon ( ).
2. Click the P2P to enable and click Write.
