Chapter 6 Server function and P2P service
6-2
6.1.2 XGT dedicated server
It is used in case of communication between our products by our dedicated service, all characters
are configured as ASCII code. In case of using multi drop, up to 32 stations can be connected. In
case of setting station number, duplicated station number should not be set. In case of using multi
drop, communication speed/stop bit/parity bit/data bit of all Cnet I/F module in network should be
same. For more detail protocol, refer to “chapter 7 XGT dedicated protocol”.
6.1.3 Modbus server
It is used in case partner device acts as Modbus client.
ASCII mode and RTU mode of Modbus are all supported. You can define in standard settings
active mode.

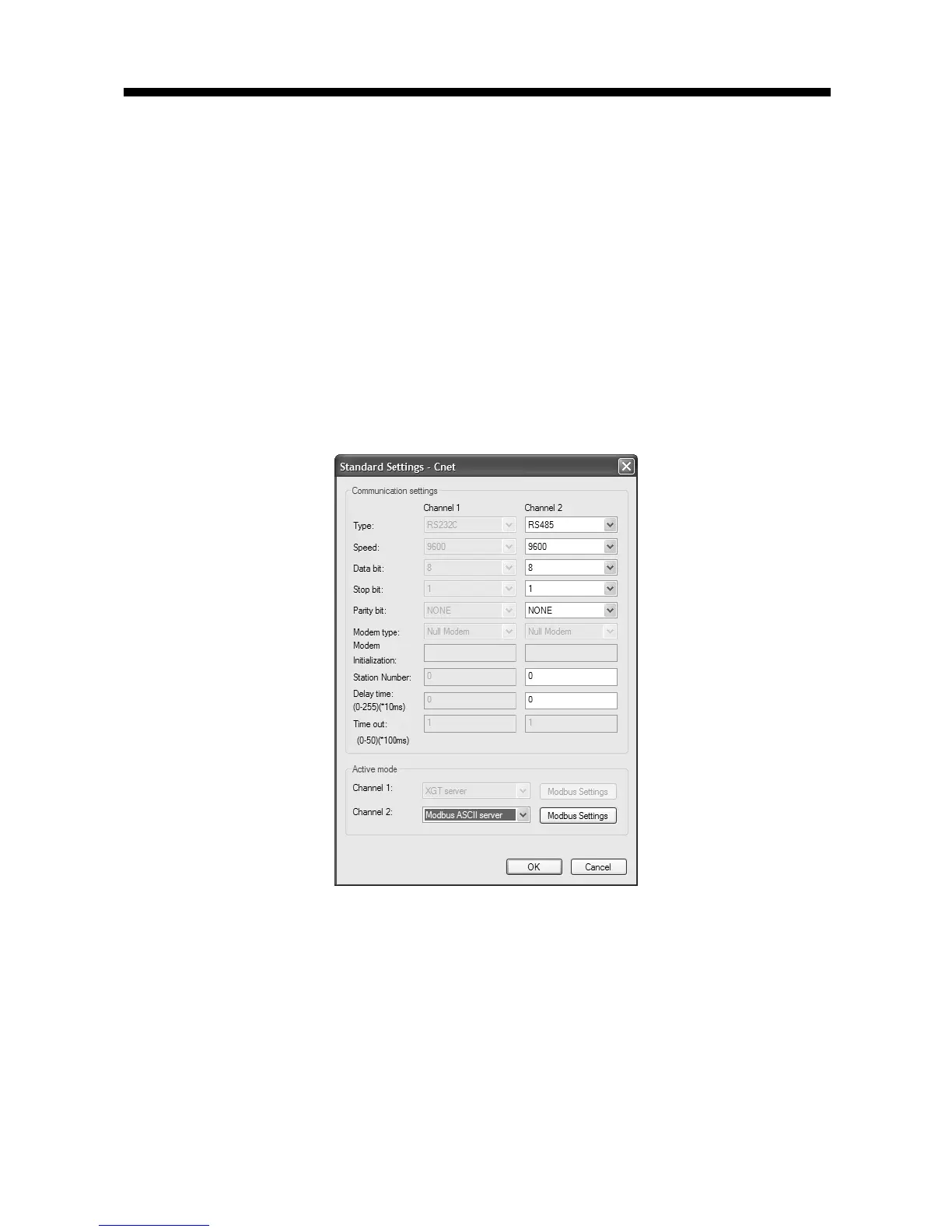

[Figure 6.1.1] Modbus server standard settings screen
Modbus instruction and response data max. number which is supported by Modbus RTU/ASCII
driver are as follows.
Other client device should request in the range of the following table.
