Chapter 6 Server function and P2P service
6-5
6.2.2 P2P parameter configuration
To use P2P service, the user executes the setting for the wanted operation at the P2P
parameter window. Like the following figure, P2P parameter consists of three information.

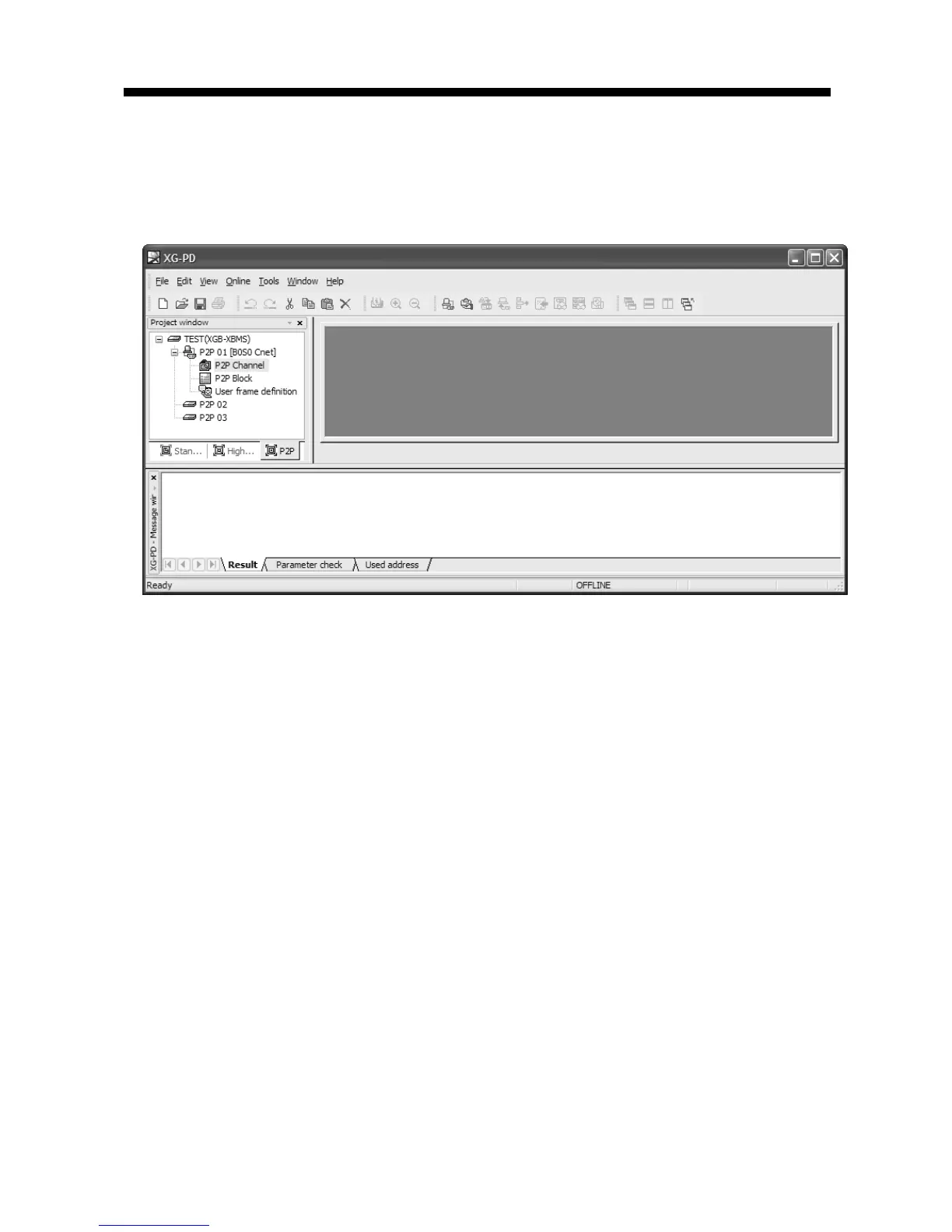

[Figure 6.2.2] P2P parameter configuration screen
1) P2P channel
P2P channel setting defining communication protocol of P2P service to execute
XGT/Modbus available
Each channel is independent. It is applied when active mode is “Use P2P settings”
2) P2P block
Setting P2P block of 32 acting independently
3) User frame definition
User frame definition registration
6.2.3 Channel information
Built-in Cnet I/F function provides two fixed communication channel as fixed P2P 1.
Cnet I/F module are allocated P2P 2 and P2P 3 according to equipment sequence and
communication channel supports only one channel.
At Built-in Cnet I/F, you can define driver type for P2P service about each.
If you select P2P channel at P2P setting window, like the following, P2P channel setting window
shows. If you select P2P driver to use, setting is complete.
