Chapter 4 Basic Setting
4-2
4.2 PLC Type Setting and How to Register Communication Module
To use Cnet I/F function, communication parameter should be written by XGP-PD. To set system
about Cnet I/F module located in temporary position, register each module at XG-PD. Method on
register Cnet I/F module is as follows according to On/Off line status.
4.2.1 Making new project
First, after click File-New File and input project name, select XGB series as PLC series.
About CPU type, in case of “S” type, select “XGB-XBMS”, in case of “H” type, select “XBC-XBCH”.
In case of IEC type, select “XGB-XECH”

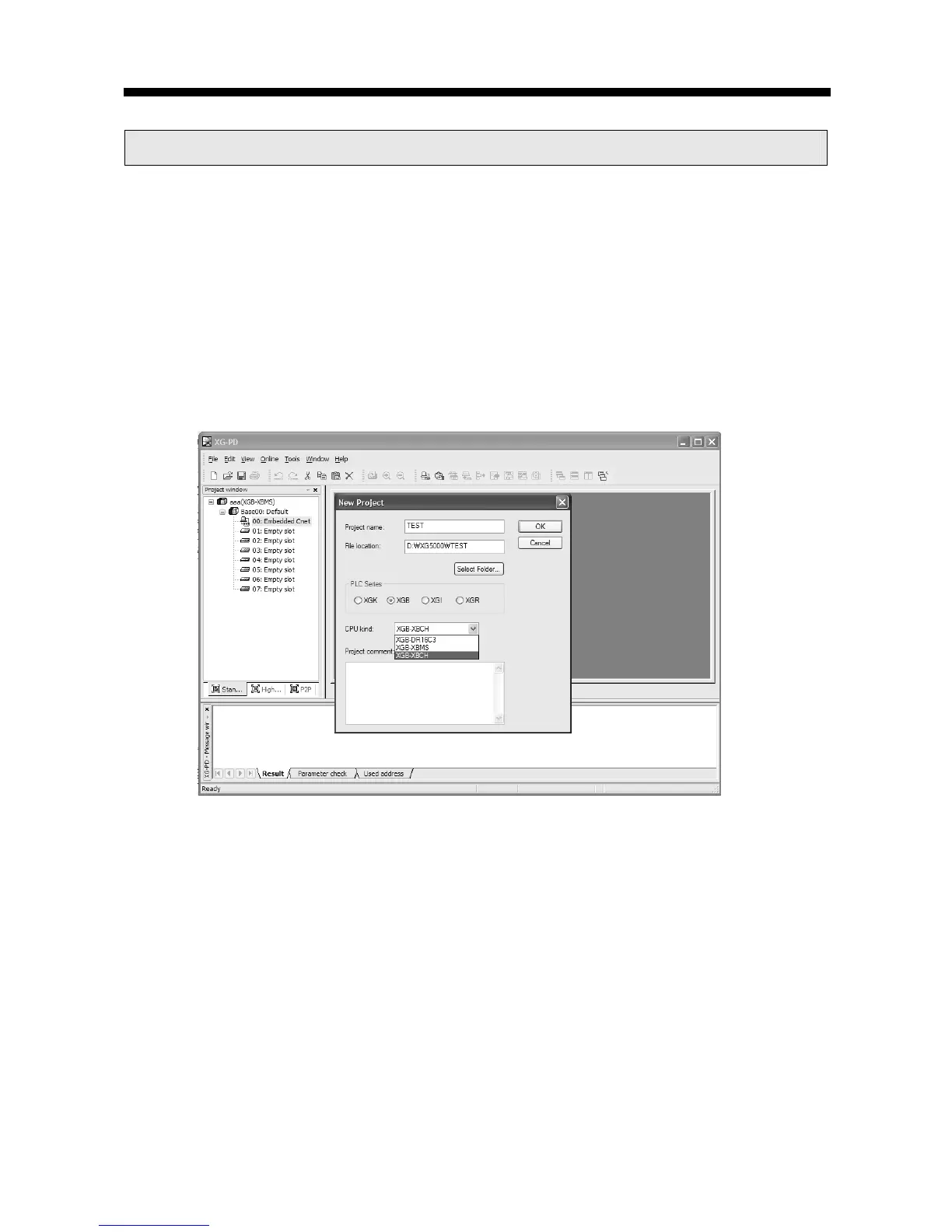

[Figure 4.2.1] New project making screen
4.2.2 In case of off line, method on Cnet I/F module registration
In the status PLC is not connected, in case the user set about communication module and write
parameter related with communication, in the “standard settings”, the user select slot location to
register Cnet I/F module and shows “Communication module settings” window. In this window, you
register Cnet I/F module about wanted slot position. If you double-click at the slot position, you can
set communication card. At this time, slot 0 is set as built-in Cnet. In case of using Cnet module other
than built-in Cnet, registration is necessary.
To Next Page
