Chapter 3 System Configuration
XGB PLC is having diverse product suitable for main system, computer link and network system configuration
This chapter describes configuration method and characteristic.
3.1 XGB System Configuration

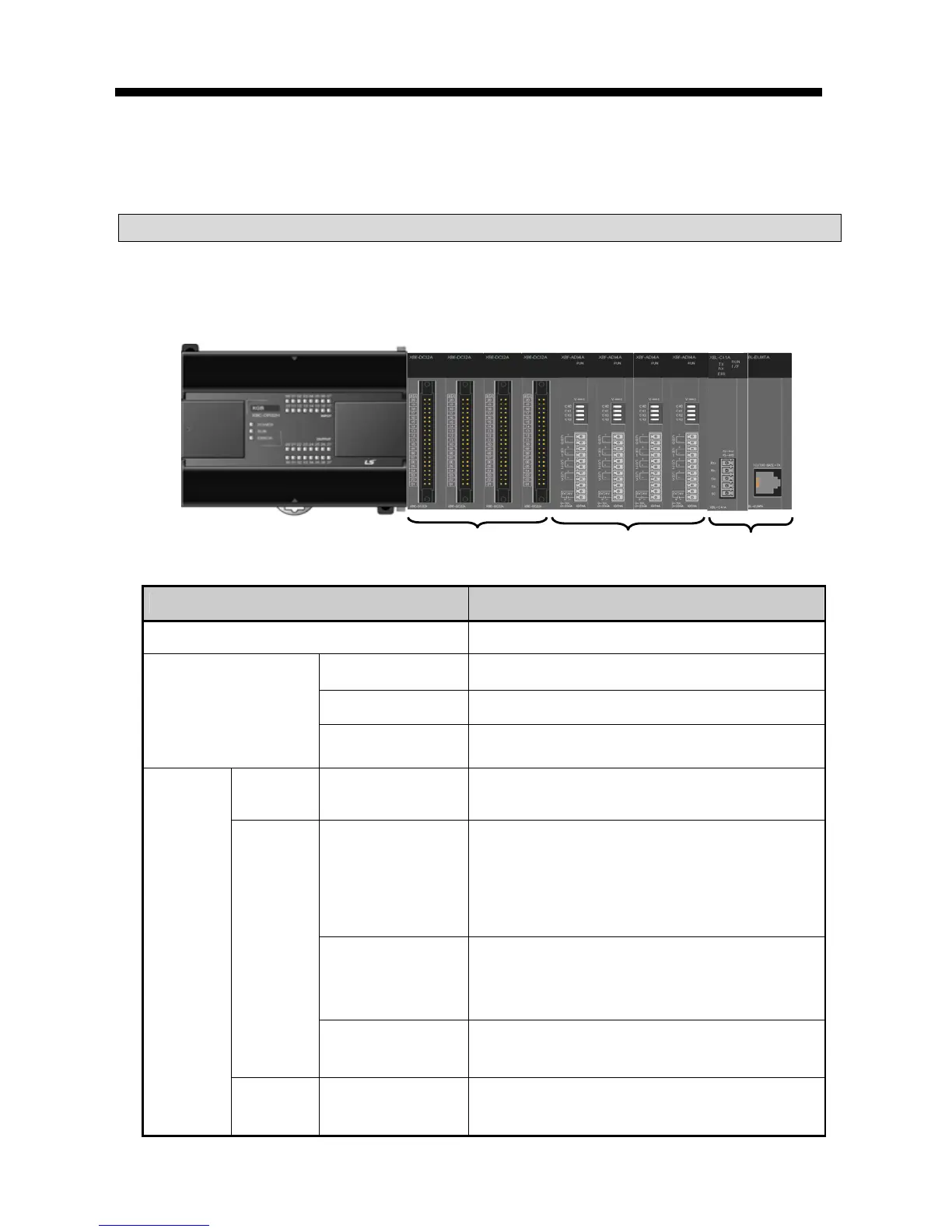

System configuration of XGB PLC is as follows. Extension I/O module, in case of special module, in “S” type, up
to 7 step connection and in “H” type, up to 10 step connection is available. In communication module, up to 2 step
extensions is available.
3.1.1 “H” type system configuration
Item content
I/O configuration point  XB(E)C-DxxxH: 32 ~ 384 points
Extension module
connection available no.
Digital I/O module  Max. 10
Analog module  Max. 10
Communication
module
 Max. 2
Product list
Main unit “H” type
 XBC-DR32/64H  XBC-DN32/64H
 XEC-DR32/64H  XEC-DN32/64H
Extension
module
Digital I/O module
 XBE-DC08/16/32
 XBE-TN08/16/32
 XBE-TP08/16/32
 XBE-RY08/16A
 XBE-DR16A
Analog module
 XBF-AD04A  XBF-RD04A
 XBF-DV04A  XBF-RD01A
 XBF-DC04A  XBF-TC04S
Communication
module
 XBL-C41A  XBL-C21A
 XBL-EMTA
Option
module
Memory module  XBO-1024A
Main unit
I/O module
Special module
Communication
module
