Chapter 6 Server function and P2P service
6-11
6.2.5 User defined frame information
In case of sending frame the user wants or receiving some frame in network, you should define
send/receive frame. It is available in P2P service.
All frames consist of Head, Body, Tail and each can be omitted.
User defined frame in XGB series is indicated group name and frame name and each meaning is
as follows.
1) Group
- Group of fame having same Head and Tail
- For registration of frame, registration of group is necessary
- Click right mouse button with cursor on user frame definition of project window.
- If group edit window shows, set group name and frame type.

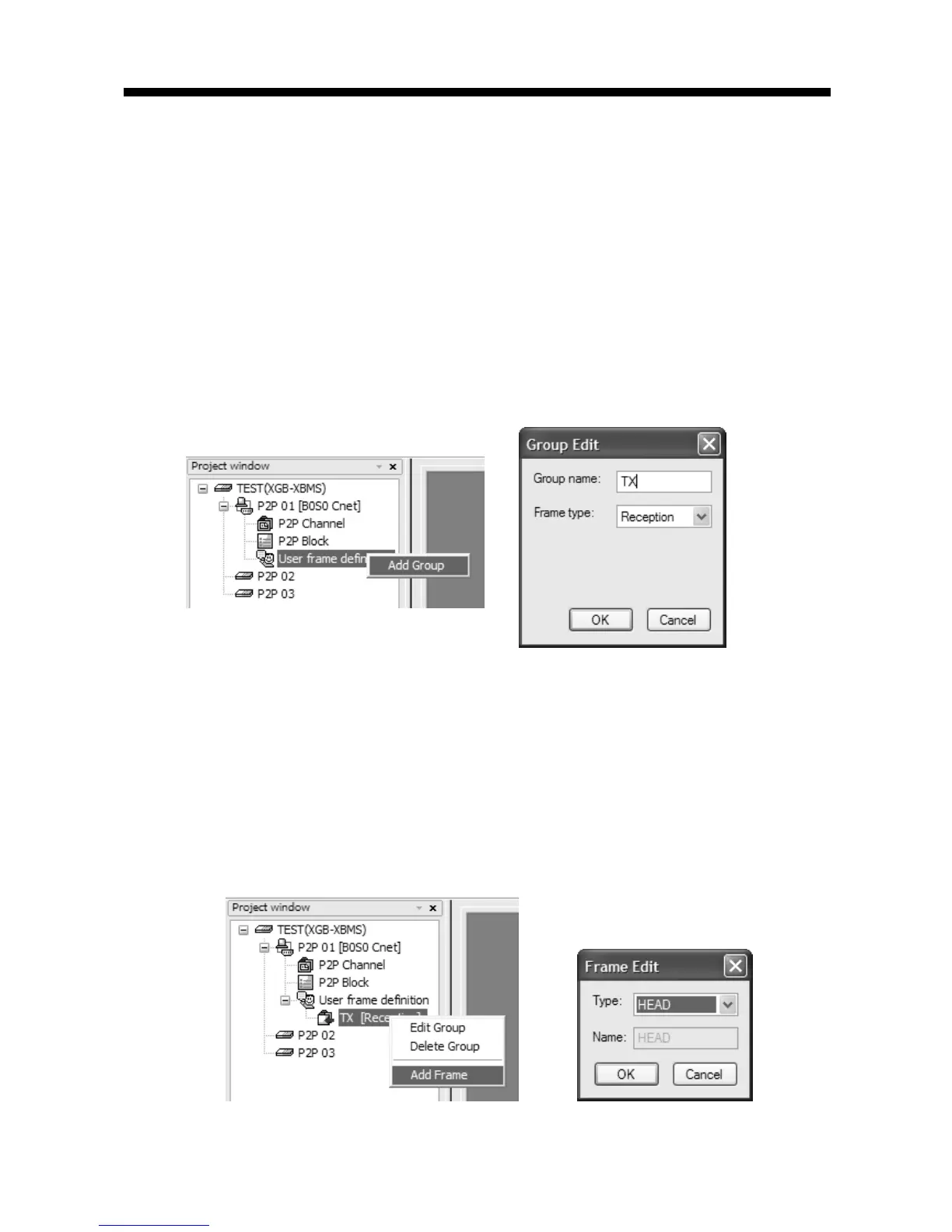

[Figure 6.2.10] Group add screen
2) Frame
- It consists of Head, Body, Tail
- Defines transmission/reception frame
- Adding fixed, variable sized variable at Body
- Frame consists of diverse segment, about one Body, variable segment can be registered up
to 4.
- With mouse on group TX [Transmission], click right button of mouse and add frame.
[Figure 6.2.11] Frame add screen
