LSIS XBL-C41A User Manual

Chapter 6 Server function and P2P service
6-10
Before using this instruction, you should define frame to send.

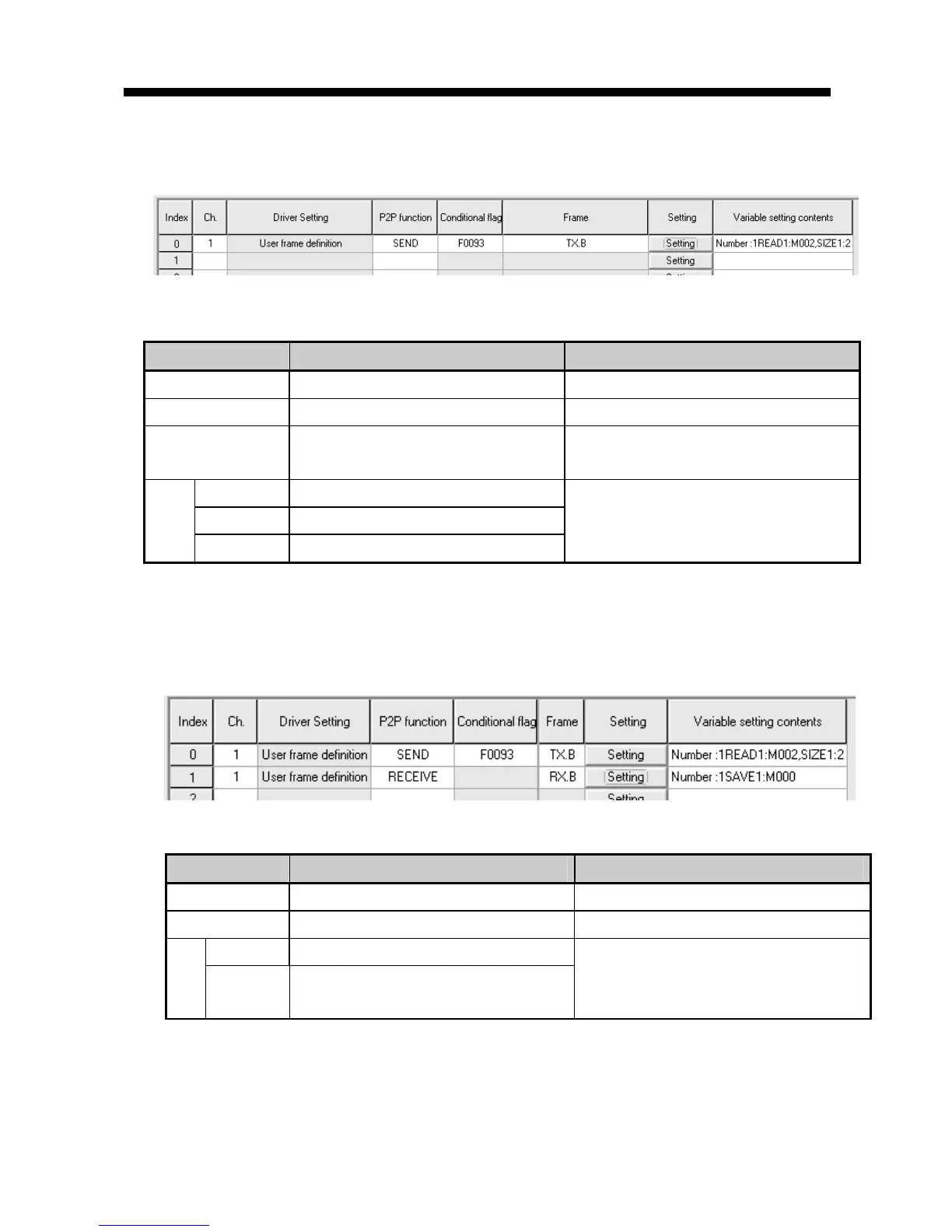

[Figure 6.2.8] P2P Send instruction setting screen
Item Setting content Reference
Channel Designates communication channel
Conditional flag Sets transmission conditional flag
Frame Designates transmission frame name
Frame is already registered at transmission
frame
Varia
ble
Read area Designates internal device to send
Setting available when variable sized
variable is set among Body segment of
transmission group
Size Sets size of device to send
Address Indicates network device allocation
[Table 6.2.5] P2P SEND instruction setting item
4) Receive instruction
Instruction used to receive the frame among frame sent by destination station.
You can’t select same frame about each P2P Receive instruction block. About receipt frame, you
can determine one receipt instruction block.
[Figure 6.2.9] P2P Receive instruction setting screen
Item Setting content Reference
Channel Designates communication channel
Frame Designates receipt frame name Frame already registered at receipt frame
Vari
abl
e
Save area Designates internal device to receive Setting available when variable sized
variable is set among Body segment of
receipt group
Address Indicates network device allocation
[Table 6.2.6] P2P Receive instruction setting item
In case of receipt, if frame fitting in communication type of designated group, each data is received at
designated variable sized variable area.
