LSIS XBL-C41A User Manual

Chapter 10 Example Program
10-11
10.2.3 Checking the operation

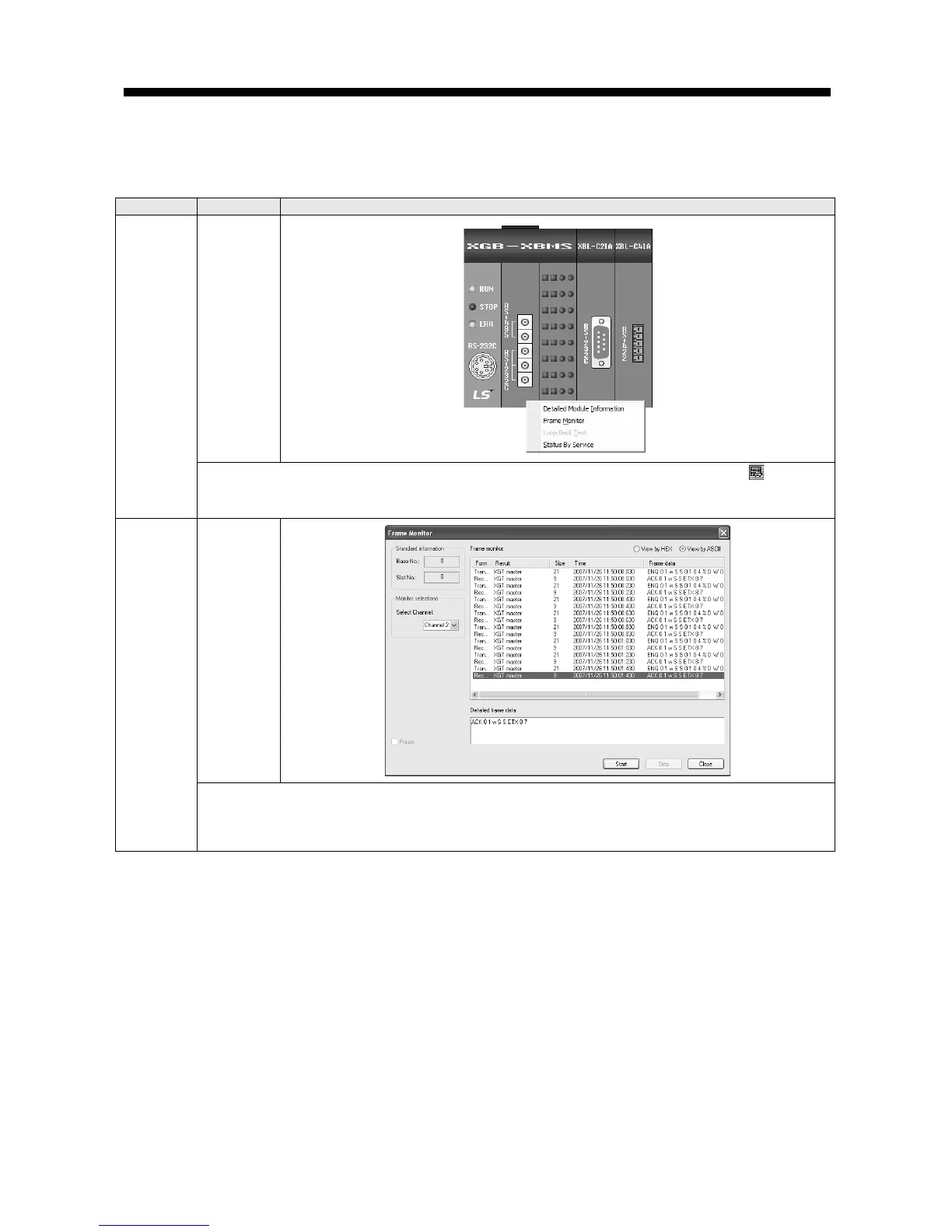

The user can analyze frame by using the frame monitor of XG-PD to check it communication is normal
or not. Method of frame monitor of Cnet I/F module is same regardless of protocol.
Sequence
Procedure
Setting method
1
System
Diagnosis
1. Connect with cilent by XG-PD and select [Online] – [System Diagnosis] or click ( ).
2. Click the right button on the relevant module and click Frame Monitor or Status By Service.
2
Frame
monitor
1. Select channel 2 and click Start.
2. Since dedicated service is ASCII communication, select View by ASCII.
* In case of Modbus RTU, select View by HEX and in case of Modbus ASCII, select View by
ASCII.
