Chapter 6 Server function and P2P service
6-12
3) Segment
- Head, Body, Tail of frame consist of diverse segment, you can register to the following frame
edit window.

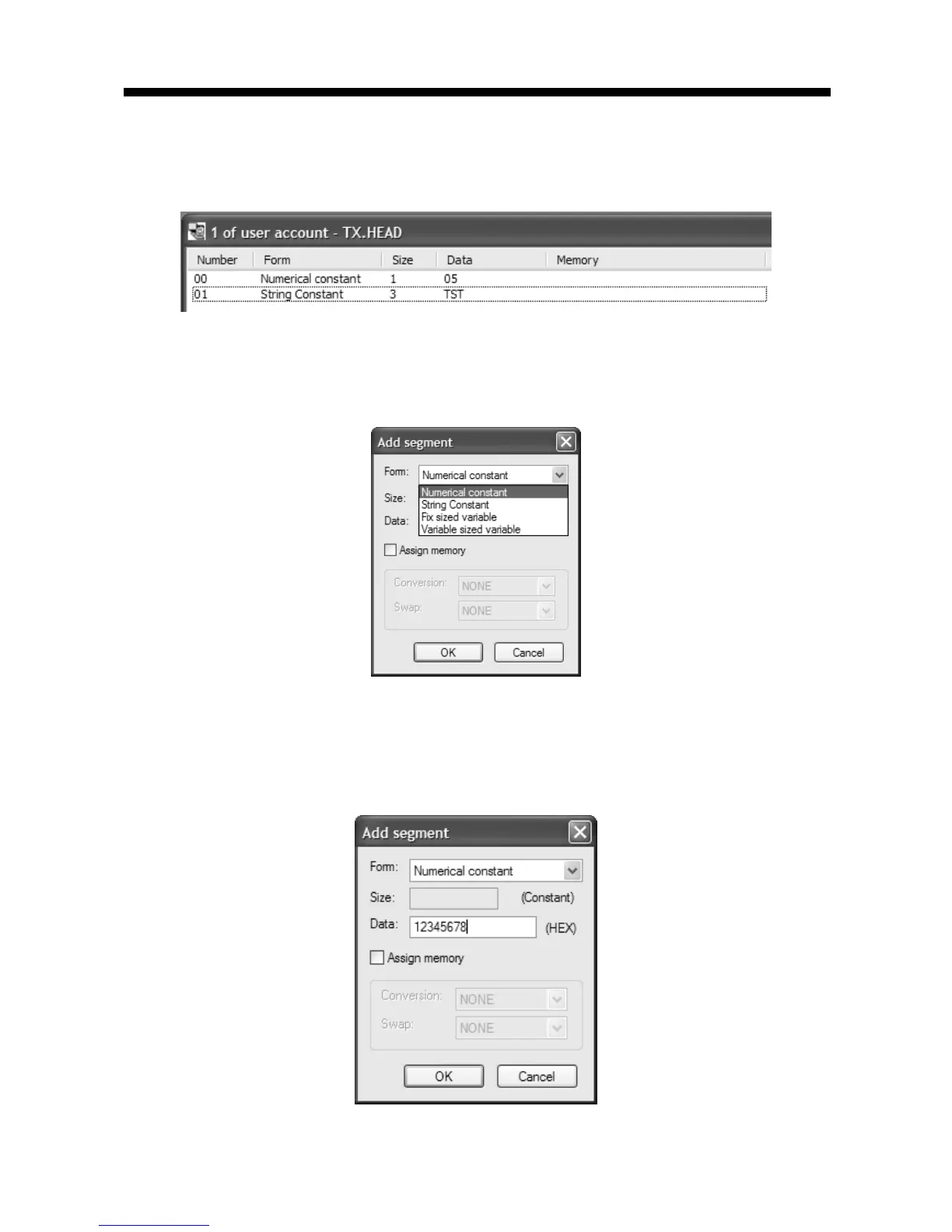

[Figure 6.2.12] Frame HEAD segment setting screen
- Numerical constant, String constant, fix sized variable, variable sized variable in segment
consisting frame.
[Figure 6.2.13] Add segment setting screen
A) Numerical constant
- Defines part fixed as constant among frame
- Value of data is Hex.
[Figure 6.2.14] Add numerical constant segment screen
