Chapter 2 specification
2-6

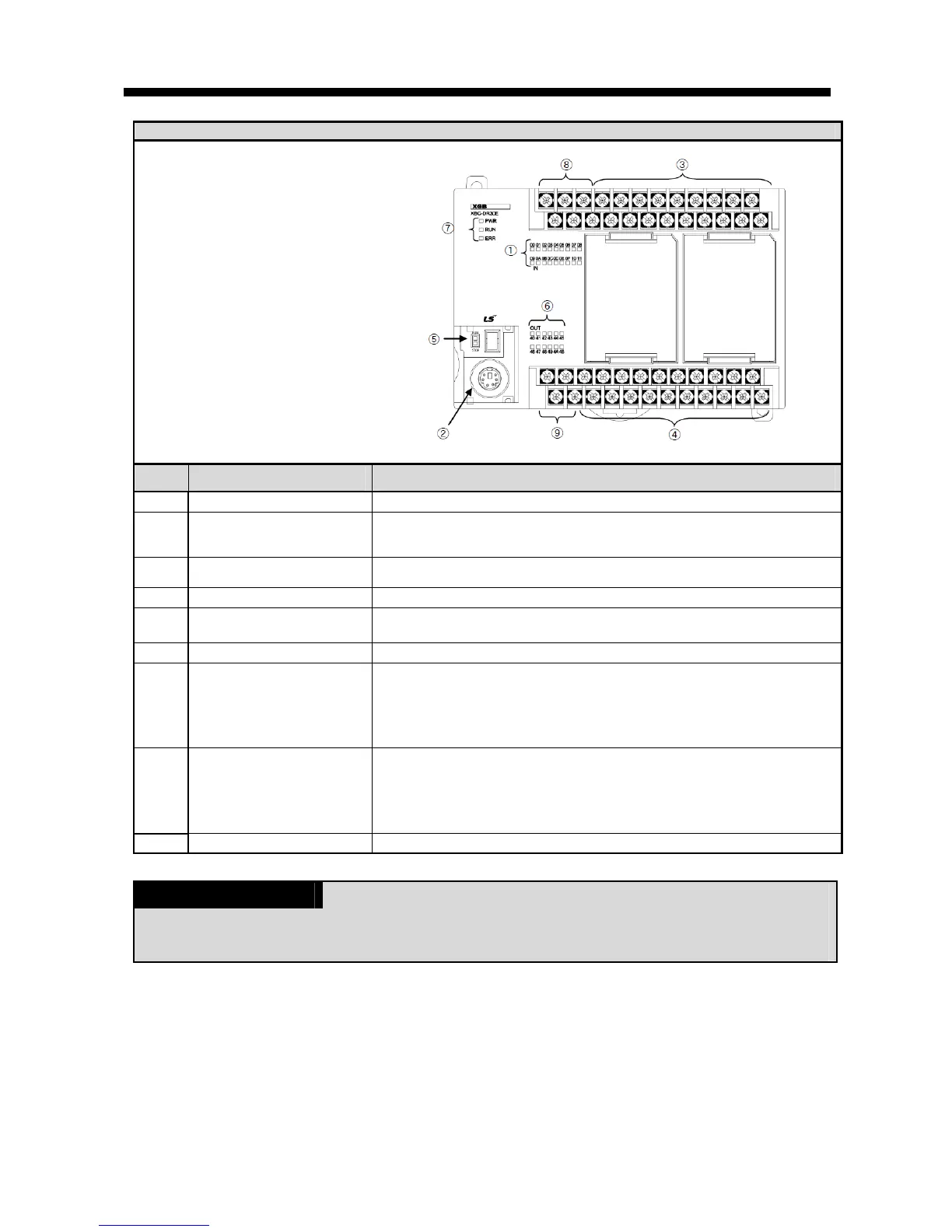

XBC/XEC “E” type
No. Name Purpose
①
Input indication LED Input indication LED
②
PADT connection
connector
PADT connection RS-232C 1 channel connector
③
Input terminal block Input connector and terminal block
④
Output terminal block
Output connector and terminal block
⑤
Key switch RUN / STOP key switch
-In case key switch is STOP, remote mode change available
⑥
Output indication LED Output indication LED
⑦
Status indication LED Indicates basic unit’s operation status
- PWR(Red) : power status indication
- RUN(Green) : RUN status indication
- STOP mode : Off / RUN mode : On
- Error(Red): flicker in case error occurs
⑧
Built-in RS-232C/
RS-485 Connection
terminal block
Built-in RS-485 connection terminal block
- “+”,”-“ terminal connection terminal block of RS-485
communication
- “TD”,”RD”,”SG” terminal connection terminal block of
RS-232C communication

Power terminal AC100~240V power terminal block
Notes
Notes 1) XBC/XEC main units of "E” type are not able to use XGB expansion module.
XBC-DR10E
XBC-DN10E
XBC-DP10E
XBC-DR14E
XBC-DN14E
XBC-DP14E
XBC-DR20E
XBC-DN20E
XBC-DP20E
XBC-DR30E
XEC-DN10E
XEC-DN14E
XEC-DN20E
XEC-DN30E
XEC-DP10E
XEC-DP14E
XEC-DP20E
XEC-DP30E
XEC-DR10E
