Chapter 2 specification
2-8

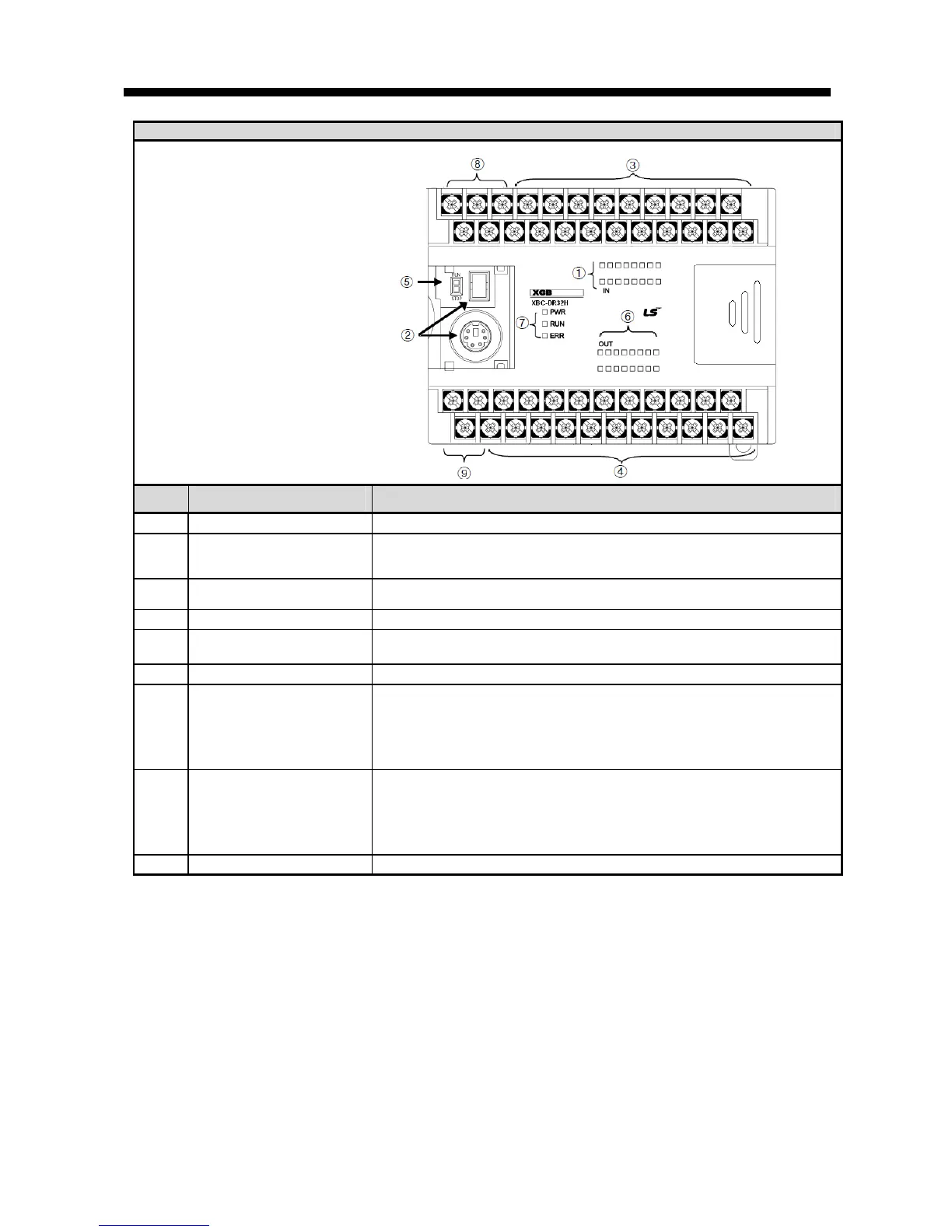

XBC/XEC “H” type
No. Name Purpose
①
Input indication LED Input indication LED
②
PADT connection
connector
PADT connection USB(USB 1.1 supported) 1 channel,
RS-232C 1 channel connector
③
Input terminal block Input connector and terminal block
④
Output terminal block
Output connector and terminal block
⑤
Key switch RUN / STOP key switch
-In case key switch is STOP, remote mode change available
⑥
Output indication LED Output indication LED
⑦
Status indication LED Indicates basic unit’s operation status
- PWR(Red) : power status indication
- RUN(Green) : RUN status indication
- STOP mode : Off / RUN mode : On
- Error(Red): flicker in case error occurs
⑧
Built-in RS-232C/
RS-485 Connection
terminal block
Built-in RS-485 connection terminal block
- “+”,”-“ terminal connection terminal block of RS-485
communication
- “TD”,”RD”,”SG” terminal connection terminal block of
RS-232C communication

Power terminal AC100~240V power terminal block
XEC-DN32H
XEC-DN64H
XEC-DP32H
XEC-DP64H
XEC-DR32H
XEC-DR64H
XBC-DR32H
XBC-DN32H
XBC-DR64H
XBC-DN64H
