LSIS XBL-C41A User Manual

Chapter 6 Server function and P2P service
6-20
B) Body registration
Registers at Body about data to process and instruction among reception frame
In case you know size of data to save among reception frame, use fix sized variable and in case
you don’t know size of data, use variable sized variable.

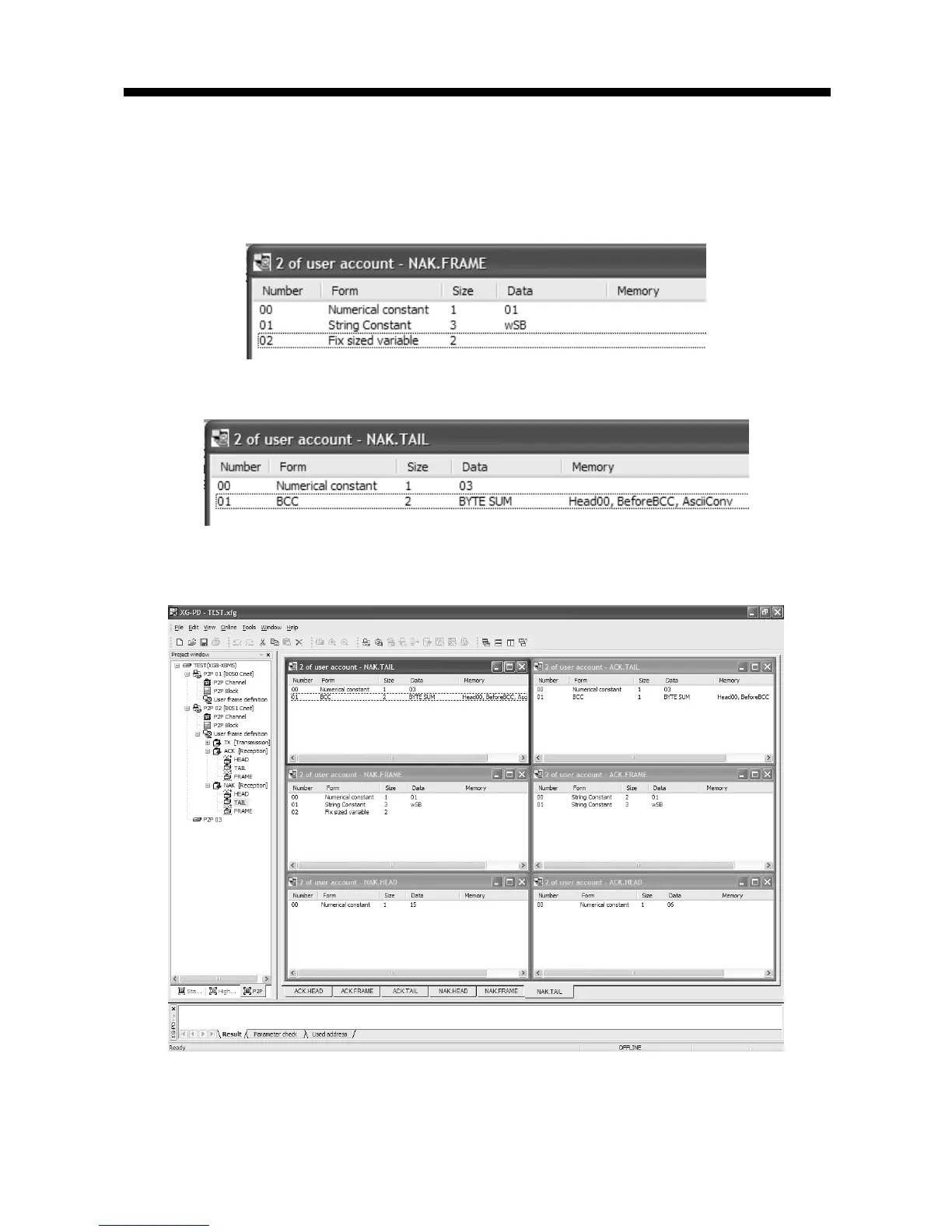

[Figure 6.2.32] NAK reception frame Body registration screen
C) Tail registration
[Figure 6.2.33] NAK reception frame Tail registration screen
Screen where ACK, NAK registration is complete is as follows.
[Figure 6.2.34] ACK, NAK reception frame registration complete screen
