Chapter 6 Server function and P2P service
6-22

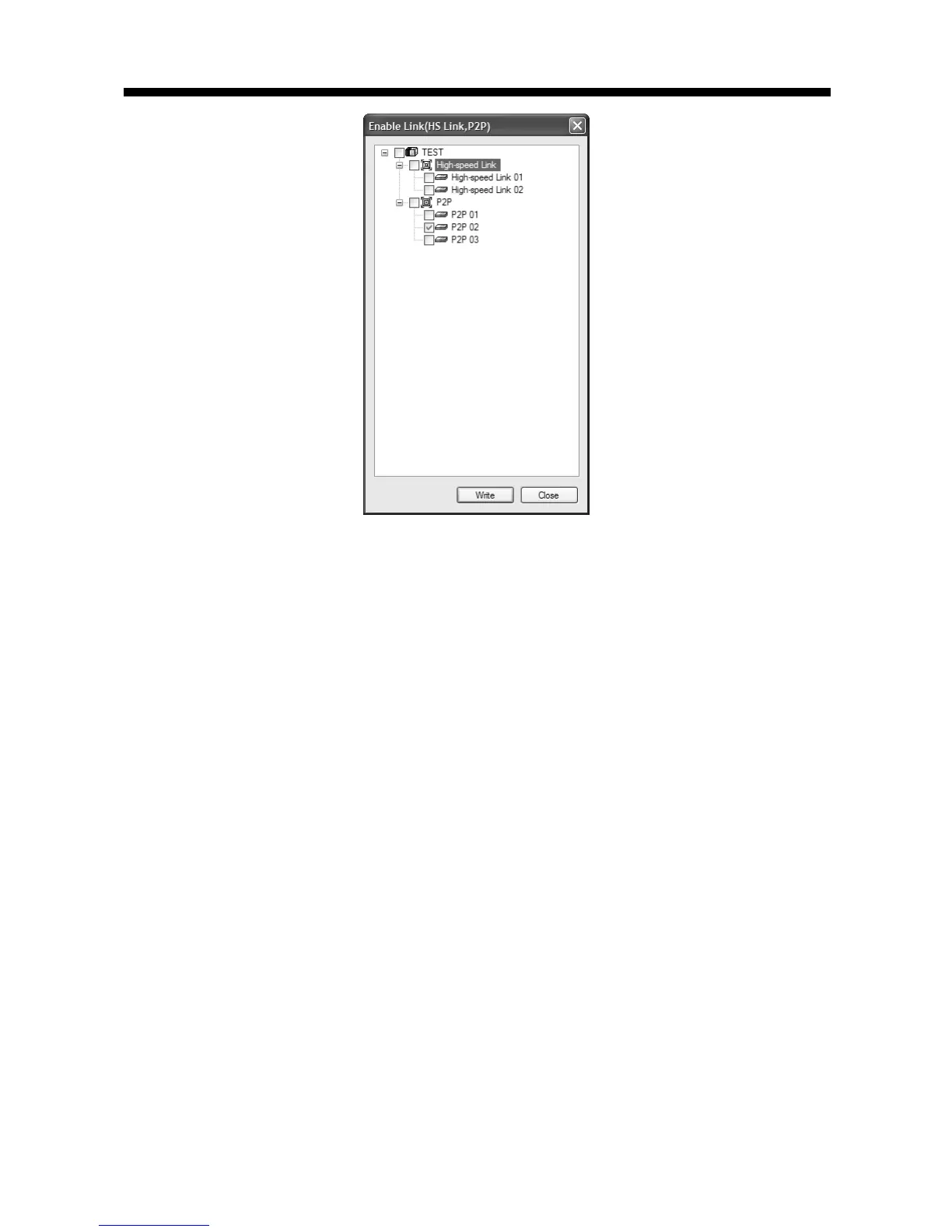

[Figure 6.2.36] P2P enabl
e setting screen
In the “Enable Link (HS Link, P2P)” window
,
select P2P parameter
.
Already checked P2P
parameter is unde
r operation. If you uncheck, P2P service stop
s.
If you like to know whether P2P
service is normal
or not, select “Online -> System diagnosis”. For
this function, refer to “Chapter 9. system diagnosi
s”.
