LSIS XEC-DR32H User Manual

Chapter 8 Built-in High-speed Counter Function

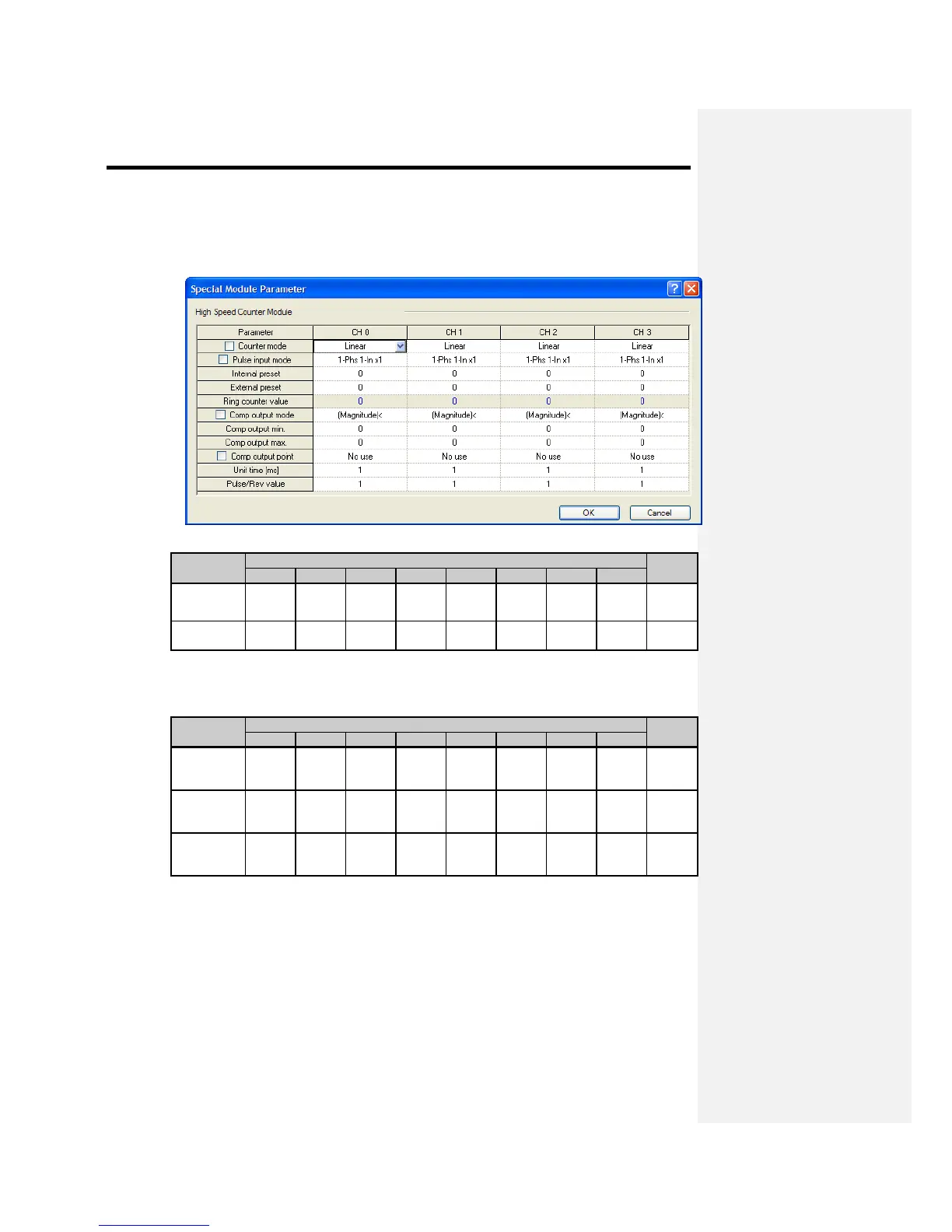

(8) Preset function
It changes the current value into preset value.
There are two types of preset function, internal preset and external preset. External preset is fixed
as input contact point.
• Preset setting value is saved at the following special K area.
Type
Area per each channel (Double word)
Ref.
Ch.0
Ch.1
Ch.2
Ch.3
Ch.4
Ch.5
Ch.6
Ch.7
Internal
preset value
%KD152 %KD167 %KD182 %KD197 %KD1112 %KD1127 %KD1142 %KD1157
-
External
preset value
%KD153 %KD168 %KD183 %KD198 %KD1113 %KD1128 %KD1143 %KD1158
-
• Preset command is specified through the following special K area, external preset is used by
executing the designated input contact point after allowance bit is on.
Type
Area per each channel (Bit)
Ref.
Ch.0
Ch.1
Ch.2
Ch.3
Ch.4
Ch.5
Ch.6
Ch.7
Internal
preset
command
%KX4161 %KX4321 %KX4481 %KX4641 %KX34881
%KX35041
%KX35201
%KX35361
-
External
preset
allowance
%KX412 %KX4322 %KX4482 %KX4642 %KX34882
%KX35042
%KX35202
%KX35362
-
External
preset
command
%QX0.0.8 %QX0.0.9 %QX0.0.10
%QX0.0.11
%QX0.0.12
%QX0.0.13
%QX0.0.14
%QX0.0.15
-
8-20
