Network Video Recorder User Manual
27
No.
Item
Description
3
VIDEO OUT
BNC connector for video output.
4
HDMI
HDMI video output connector.
5
VGA
DB15 connector for VGA output. Display local
video output and menu.
6
AUDIO OUT
RCA connector.
7
AUDIO IN
RCA connector
8
Network Interface
Connector for network.
9
RS-485 Interface
Connector for RS-485 devices.
10
Power Supply
12 VDC power supply.
11
GND
Ground.
1.3.3 LTD85XXM-ST

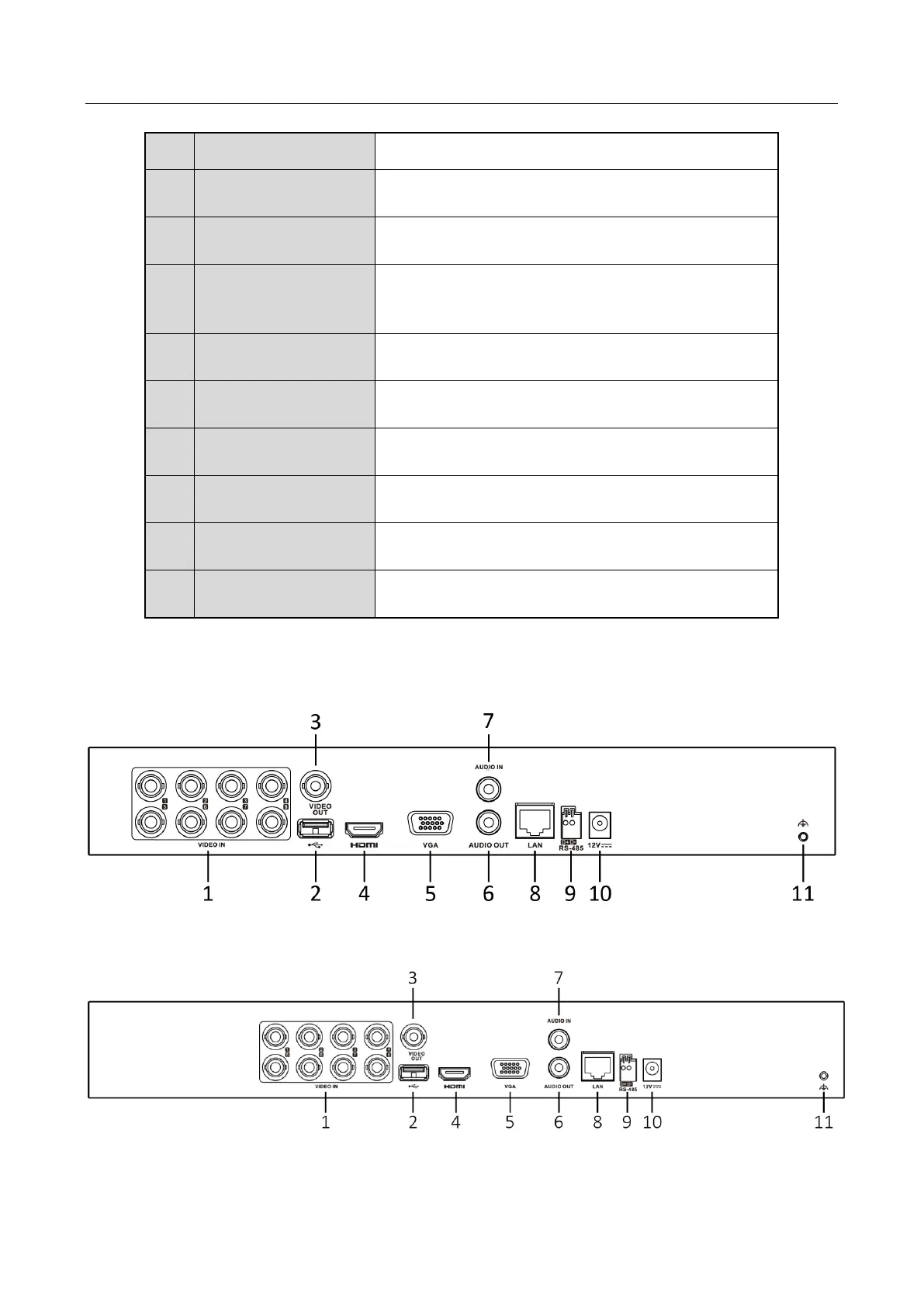

Figure 1-6 Rear Panel of LTD85XXM-ST(1 SATA)
Figure 1-7 Rear Panel of LTD85XXM-ST(2 SATA)
