p/n 18603-001, Rev. C LTV
®
1200/1150 Ventilator Service Manual Page 8-5
Boots, Temporary Removal
Parts required for replacement: Tools required:
• None
Replace if damaged:
• Finish Washers (6) P/N 10191
23
,
or 19119-001, or 19119-002
• Phillips screwdriver with
torque meter

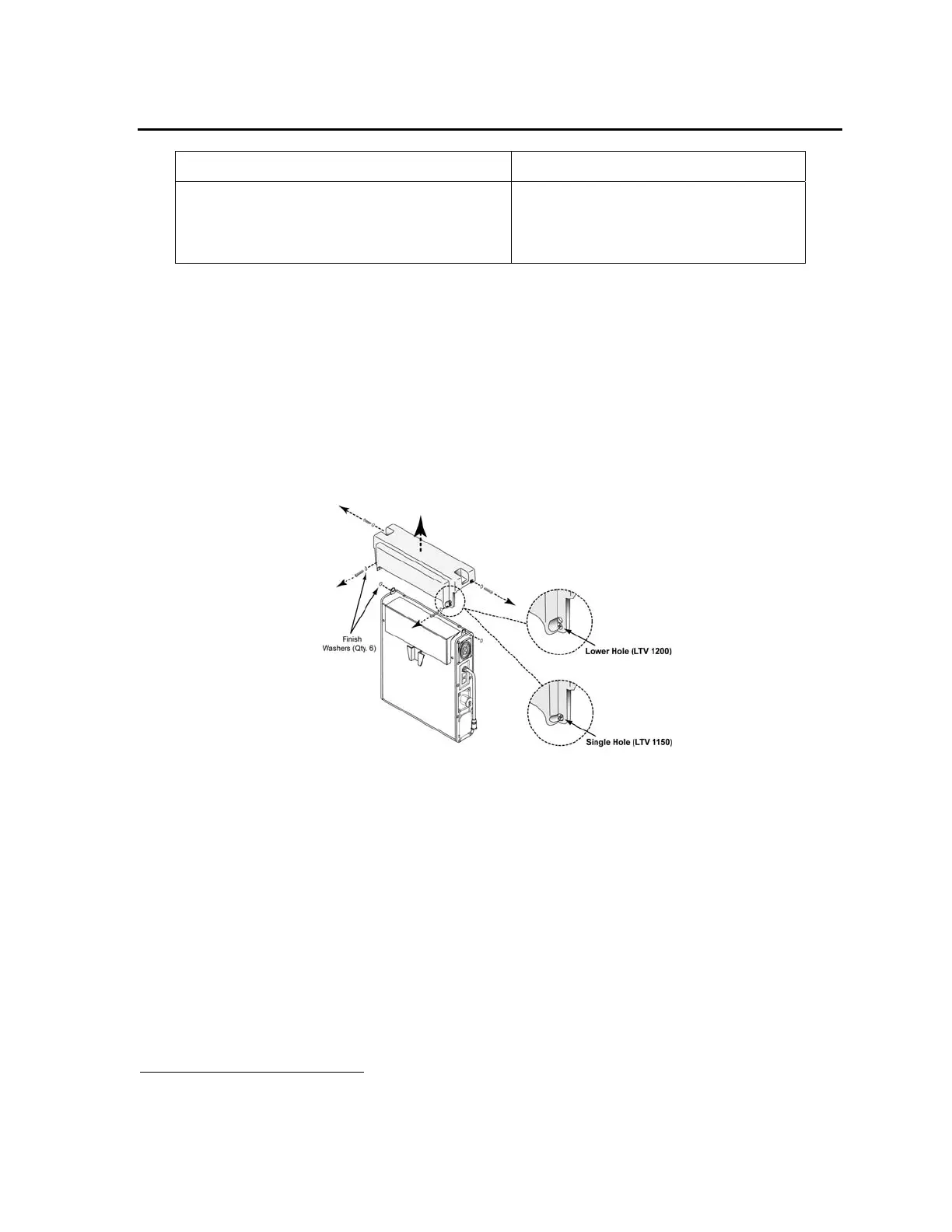

To temporarily remove the upper protective boot
24
:
1) Carefully support the disconnected ventilator in an upright position on a clean, dry
surface.
2) Using a Philips screwdriver, remove the two flat-head mounting screws and finish
washers in the legs of the upper boot and the two flat-head mounting screws and finish
washers in the sides of the upper boot, as indicated in the illustration.
3) Retain the screws and finish washers for reuse when the upper boot is reinstalled.
4) Remove the upper boot.
23
Contained in Pulmonetic Systems Replacement Screws kit, P/N 11149.
24
See Appendix E - Reference Information,
External Accessories Screw Location, Type and Length for additional information.
