LTV 1150 - Valve Differential Calibration

p/n 18603-001, Rev. C LTV
®
1200/1150 Ventilator Service Manual Page 6-13
Valve Differential Calibration
To perform the valve differential calibration, you will need the following equipment:

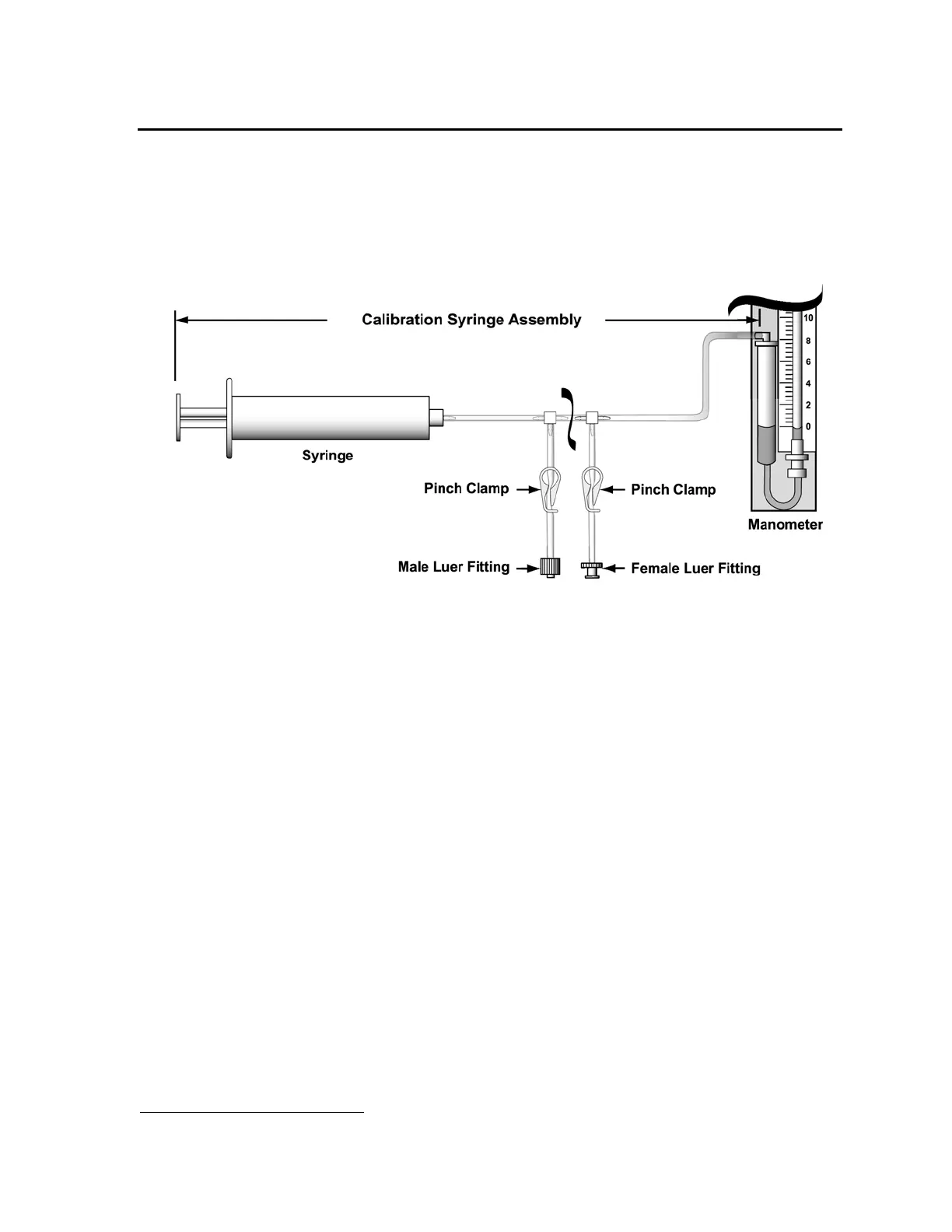

• Calibration syringe assembly
15
, P/N 11471, with a T-connection to a pressure
manometer (0-90 cmH
2
O).
15
The Calibration Syringe is available separately, or as part of the Maintenance Calibration Kit, P/N 11566.
