LTV 1150 - LTM Mounting Assembly New Installation (Current LTM)

Page 8-20 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C
LTM mounting assembly new installation (current LTM)
Remove the upper boot (if installed). See Boots, Protective in this chapter for instructions.
WARNING
Mounting screw use – Internal damage to the ventilator may result if the wrong length
mounting screws are used when installing or removing external accessories.
Accessory mounting screws - Refer to the information supplied with replacement screws
kit, P/N 11149, to determine the appropriate accessory mounting screws or accessory
replacement screws to use when removing or exchanging external accessories on an LTV
®
1200/1150 ventilator.

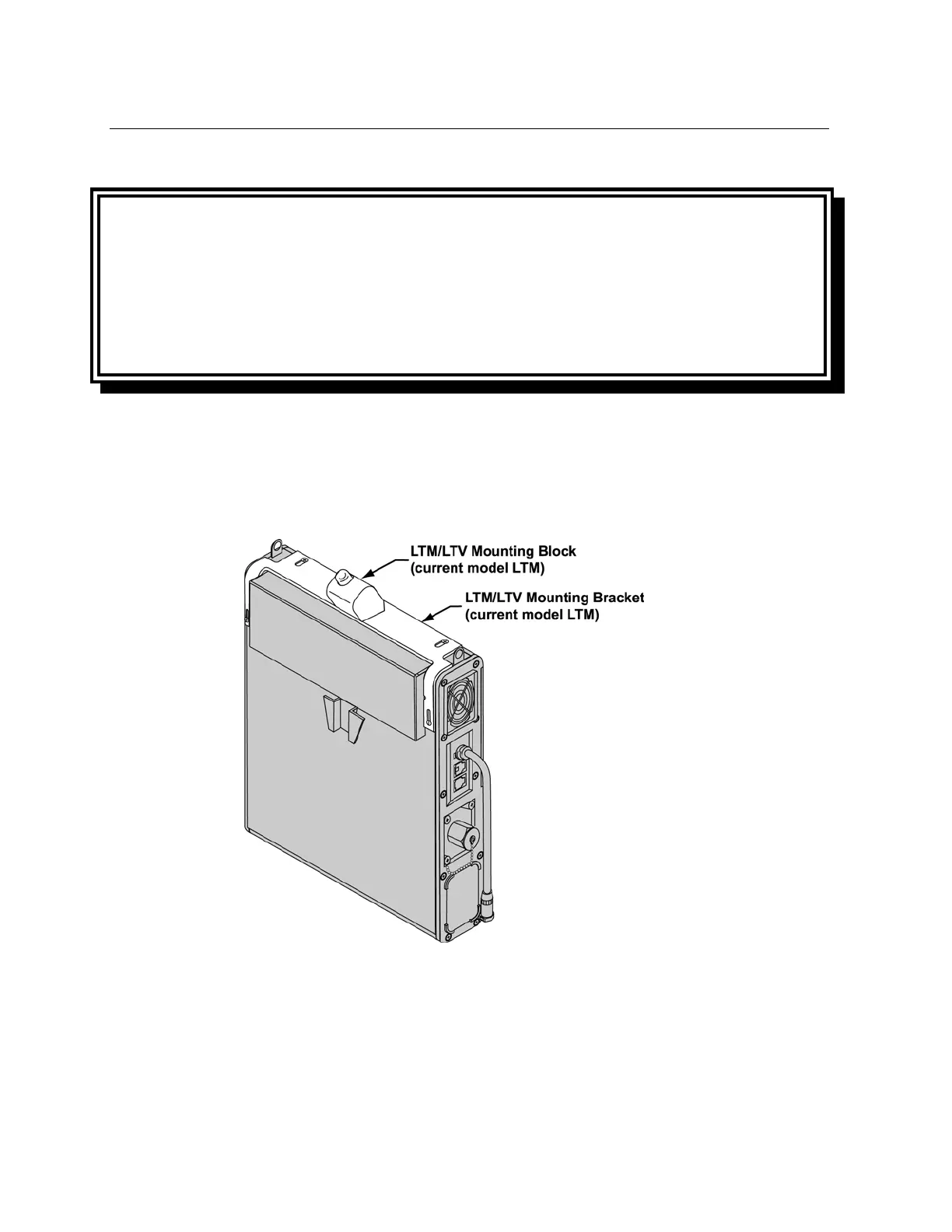

The following illustration shows the correct orientation and placement of the LTM mounting
assembly when attached to the LTV
®
ventilator.
