LTV 1150 - Solenoid Mount Tube Routing Table

Page 8-36 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C

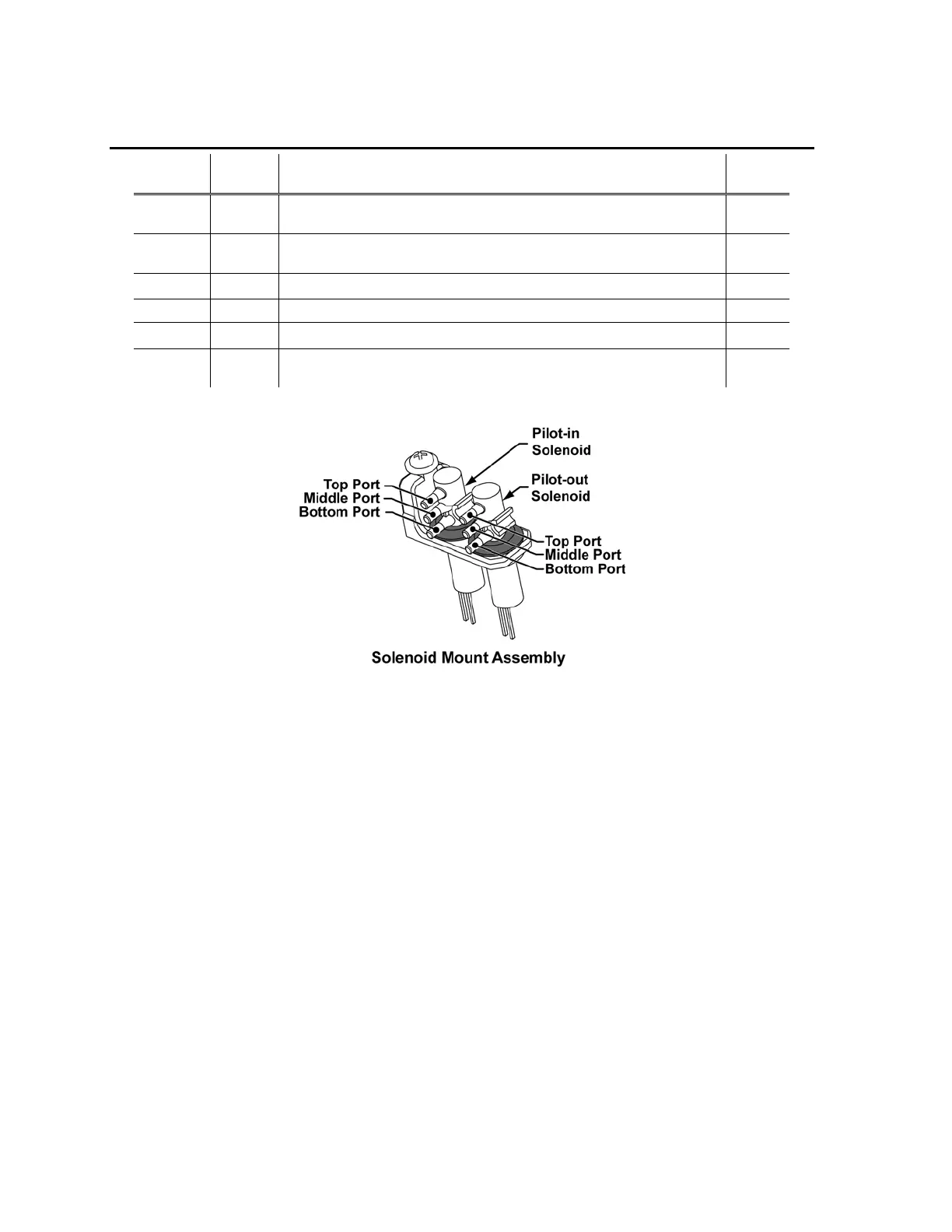

Solenoid Mount Tube Routing Table
Solenoid Port Port Tubing Routing
Tubing
P/N
Pilot-in Top
Through a filter subassembly onto the tee fitting in a tee & elbow
subassembly attached to Solenoid Manifold port # 1
10456
Pilot-in Middle
Through a wye subassembly onto the tee fitting in a tube & tee
subassembly attached to Solenoid Manifold port # 9
10456
Pilot-in Bottom Into a plug subassembly
10456
Pilot-out Top N/A (nothing attached to this port) -
Pilot-out Middle To a tee fitting positioned next to the louver on the side panel
10456
Pilot-out Bottom
Through a wye subassembly onto the tee fitting in a tube & tee
subassembly attached to Solenoid Manifold port # 9
10456
