LTV 1150 - Solenoid Manifold Tube Routing Table

p/n 18603-001, Rev. C LTV
®
1200/1150 Ventilator Service Manual Page 8-35
Tubing
P/N
Material
/Color
Diameter Length Qty Installed Location
0.85” (± 0.1”)
0.022m
1
Between elbow fitting & flow diff.
transducer (PT4)
10626 Silicone
/Clear
0.281” (0.007m)
0.156” (0.004m)
O.D.
I.D.
10.75” (± 0.1”)
0.273m
1
Between elbow fitting on turbine
manifold & elbow fitting on flow
valve
10544 Polycarb
/Clear
0.125” (0.003m)
0.079” (0.002m)
O.D.
I.D.
7.50”
(+0.5” / - 0.0”)
0.191m
1
Between O
2
blender & Pisco
connector on O
2
pres. transducer
(PT5)
10455 Silicone
/Clear
0.219” (0.005m)
0.094” (0.002m)
O.D.
I.D.
5.00”
(± .250”)
0.152m
1
Between flow valve top nylon
fitting & port # 5 on solenoid
manifold
10957 Silicone
/Orange
0.219” (0.005m)
0.094” (0.002m)
O.D.
I.D.
5.50”
(± .250”)
0.140m
1
Between flow valve bottom nylon
fitting & elbow fitting from valve
diff. transducer (PT7)

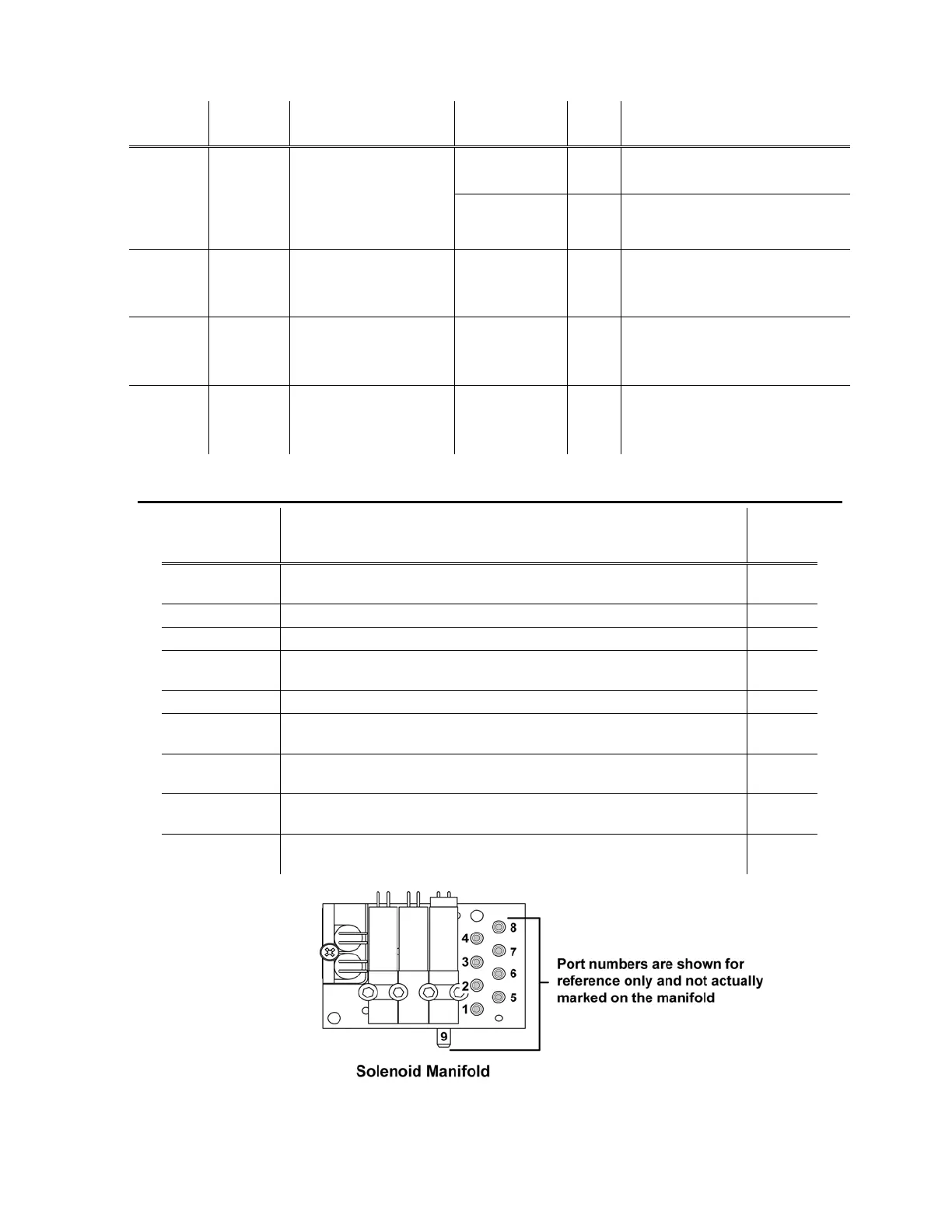

Solenoid Manifold Tube Routing Table
Solenoid
Manifold
Port Number
Port Tubing Routed
Tubing
P/N
#1 Onto the high pressure port on the Valve Differential Transducer (PT7)
• through a tee & elbow subassembly
11834
#2 Onto the Flow Differential Transducer (PT4) 10458
#3 Onto the Airway Pressure Transducer (PT6) 11834
#4 Onto the side panel low pressure Flow Transducer port
• male Luer fitting on outside of panel
11834
#5 From the Flow Valve (clear tubing) 10455
#6 Onto side panel Exhalation Valve port
• barbed fitting on outside of panel
11834
#7 Onto the Flow Differential Transducer
• through a tube & elbow subassembly
11834
#8 Onto the side panel high pressure Flow Transducer port
• female Luer fitting on outside of panel
11834
#9 Onto Accumulator port A
• through a tube & tee subassembly
11834
