LTV 1150 - LTM;LTV Mounting Bracket Permanent Removal (Earlier Model LTM)

Page 8-24 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C
LTM/LTV mounting bracket permanent removal (earlier model LTM)
Parts required for replacement: Tools required:
• Replacement Screws Kit, P/N 11149 • Phillips screwdriver with torque meter
To permanently remove the LTM/LTV
®
mounting bracket:
1) Remove the LTM/ LTV
®
mounting block and bracket (see instructions on page 8-23).
2) Insert five 1/4” back panel replacement screws (from the replacement screws kit, P/N
11149) and torque tighten to 60 in-oz (0.42 Nm).
3) You may need to apply some pressure to the back panel and housing to correctly align
the threads and insert the screws.

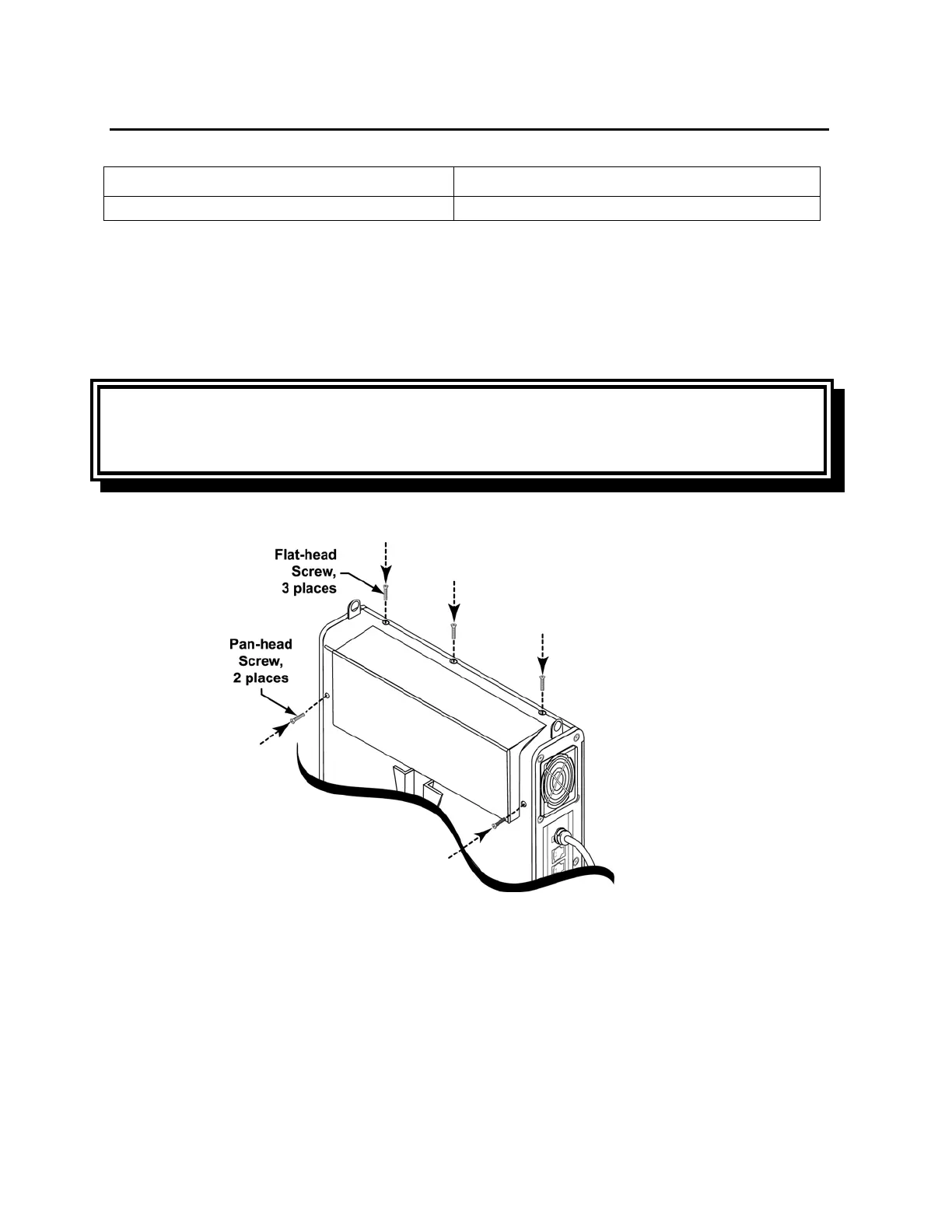

WARNING
Specific bracket replacement screw location –Use of incorrect length screws can cause
ventilator failure with resulting harm to the patient.
