Page 8-58 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C
3) Disconnect the 4-wire flow valve
connector from the motor board.

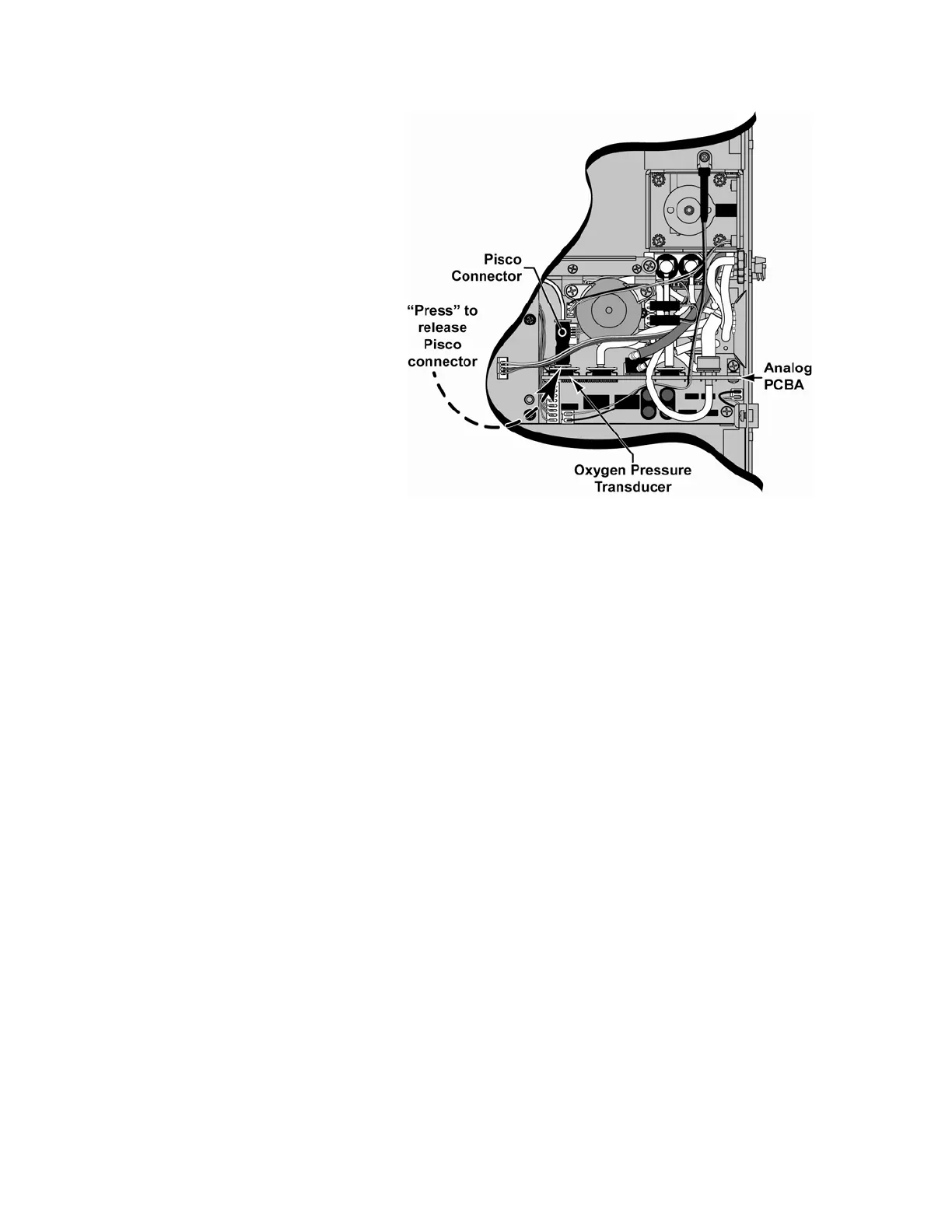

4) Disconnect the Pisco connector
from the oxygen pressure
transducer. To do this, pinch the
collar on the Pisco connector
away from the Analog board as
shown (LTV
®
1200 only).
5) Disconnect the 2-wire flow valve
thermistor cable from the power
board.
