To remove the Turbine Manifold and Oxygen blender/O
2
Block:
1) Remove the back panel and disconnect the battery (see instructions on page 8-28).
2) Remove the left soft side (see instructions on page 8-113).
3) Remove the motor board (LTV
®
1200 only) (see instructions on page 8-90).
4) Disconnect the O
2
blender 8-wire connector from the power board (LTV
®
1200 only).

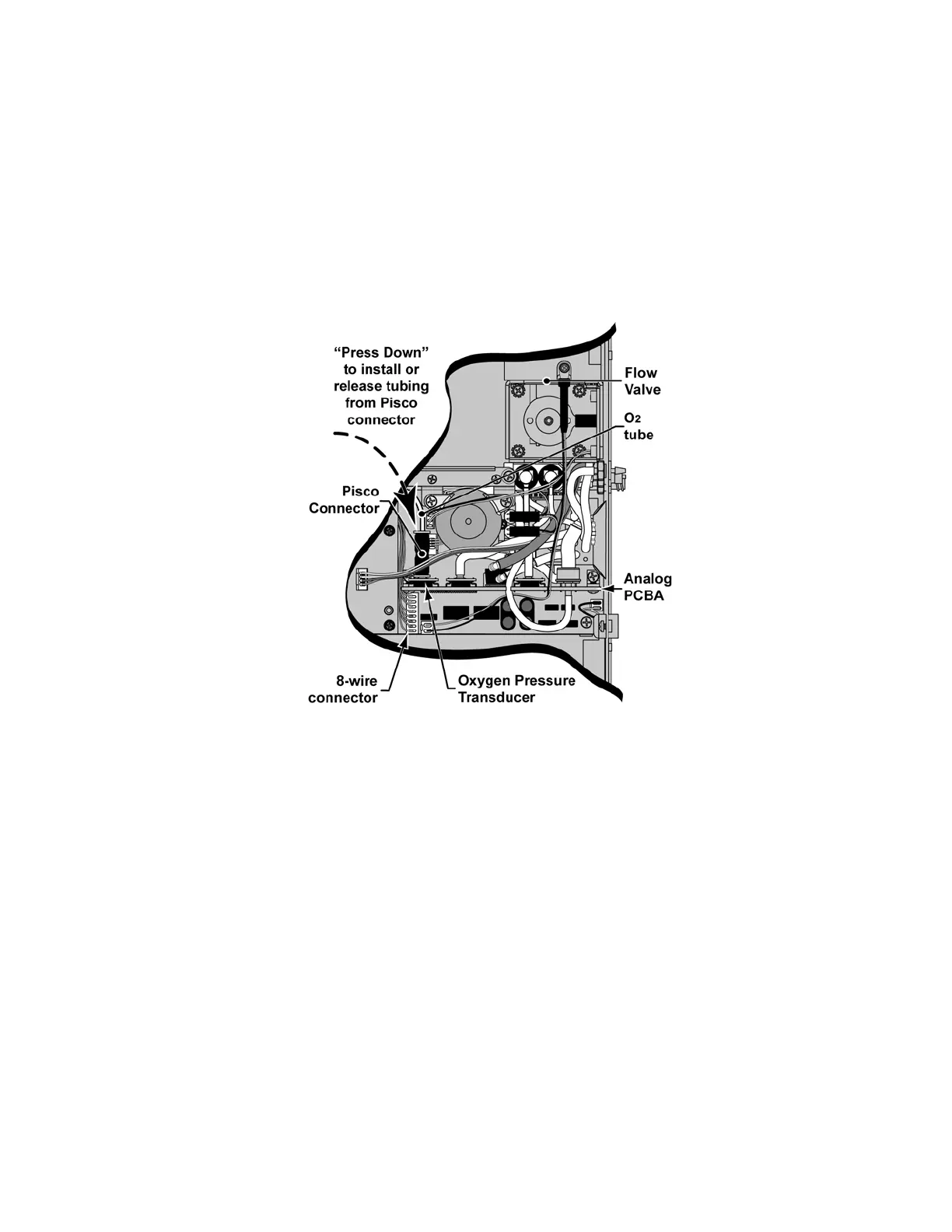

5) Disconnect the O
2
tube from the Pisco connector on the oxygen pressure transducer on
the analog board as shown (LTV
®
1200 only).
6) Remove the flow valve (see instructions on page 8-65).
7) Remove the two (2) screws securing the accumulator to the turbine manifold spacer
and loosen or remove the one (1) screw securing the solenoid mount assembly. Detach
the accumulator and the solenoid mount assembly from the spacer.
