6.6 Replace EI Paddle Board
OVERVIEW
This procedure provides the necessary steps to replace the Ethernet
1
Interface (EI)
paddle board at a DRM site and should only be used when the Module Controller/Time
Slot Interchange (MCTSI) Trouble Location Procedure (TLP) has indicated the 982YP
Ethernet Interface paddle board for SM-2000. See Figure 6.6-1.
PROCEDURE
1. At the front of the cabinet, go to the Power/Display pack (410AA) of the SG for
the MCTSI that is OOS.
— The 410AA for MCTSI SG 0 is at position 019-162.
— The 410AA for MCTSI SG 1 is at position 028-162.
1. Registered trademark of Xerox Corporation.

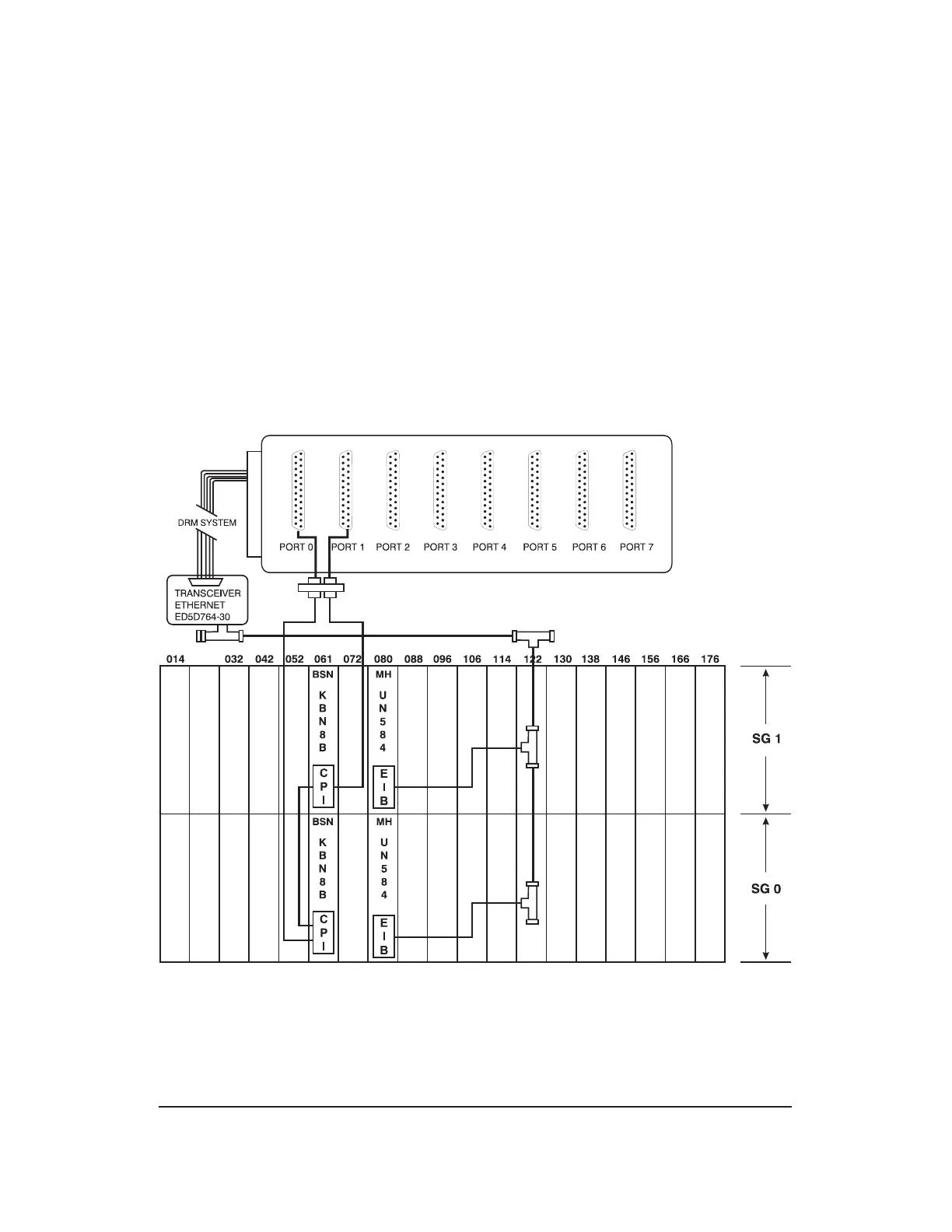

Figure 6.6-1 —
Ethernet
Interface Paddle Board
235-200-150
January 2003
CORRECTIVE MAINTENANCE
Procedure 6.6
Issue 3.00 Page 6.6-1
To Next Page
