MacDon DWA - 1.8 Safety Decal Locations

ASSEMBLY/SETUP IN STRUC TIONS

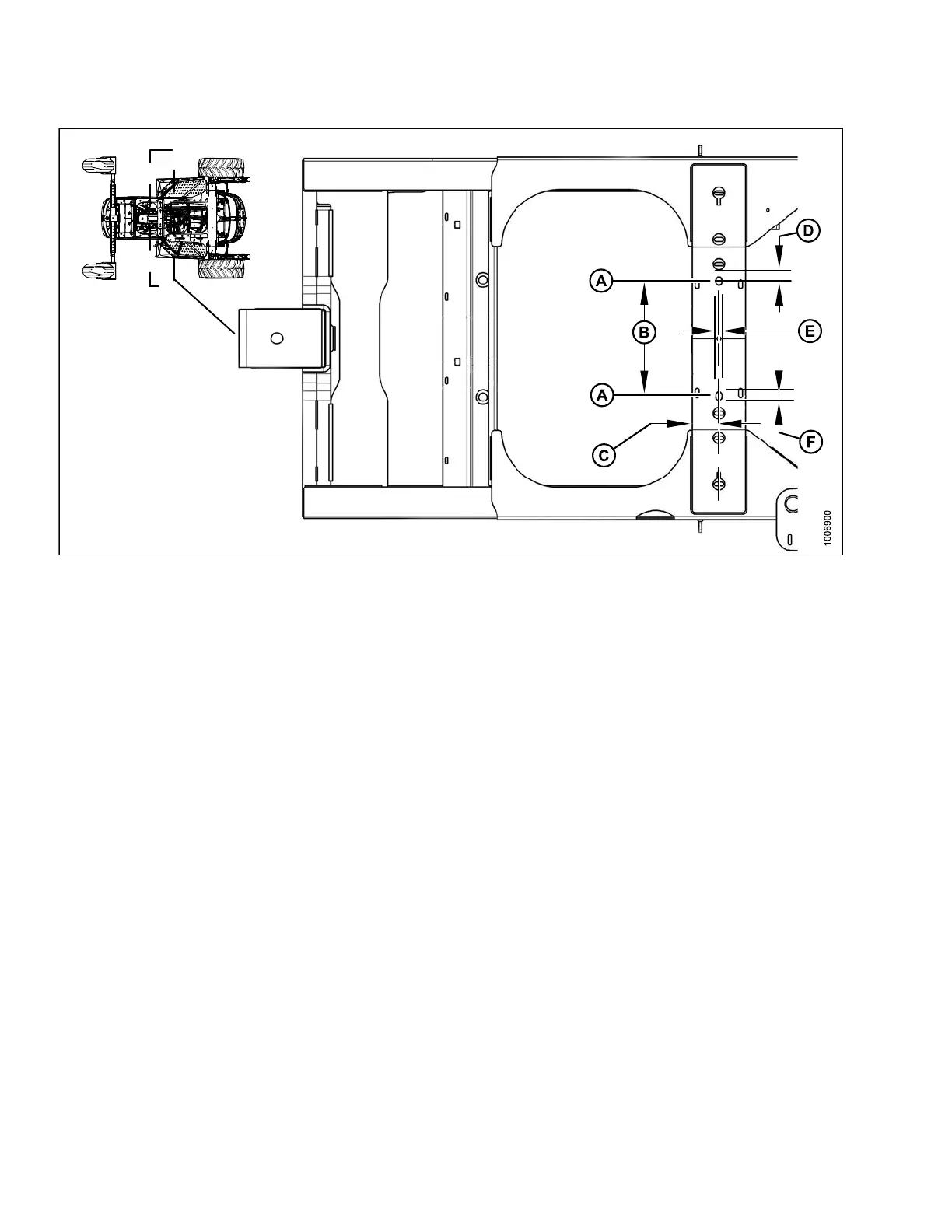

Figure 2.2: Forward-Facing Frame
A-HoleLo
cations Front Frame
B - 402 mm (15-15/16 in.) C - 92.5 mm (3-5/8 in.)
D - 40 mm (1-9/16 in.) E - 20 mm (25/32 in.) F - 28.5 mm (1-1/8 in.)
214049
