ASSEMBLY/SETUP INSTRUCTIONS
2.9 Installing the Tank Overflow Hose Extension
The extension hose prevents overflow fl uid droppin g onto the Doub le Windrow Attachment (DWA) draper deck.
Instructions are model-specific.
• To install the overflow extension hose on M150 models with Cummins engines, refer to 2.9 .1 Installing the Tank
Overflow Hose Extension: M150, page 47
•Toinstalltheoverflow extension hose on M155/M155E4 models with Cummins engines, refer to 2 .9.2 Installing
the Tank Overflow Hose Extension: M155/M155E4, page 49
• To install the overflow extension hose on M200 models with Cat engines, refer to 2.9.3 Insta lling the Tan k Ove r flow
Hose Extension: M200 with Cat Engine, page 51
• To install the overflow extension hose on M205 models with Cummins engines, refer to 2.9 .4 Installing the Tank
Overflow Hose Extension: M205, page 51
2.9.1 Installing the Tank Overflow Hose Extension: M150
To install the tank overflow hose on an M150 Self-Propelled Windrower, follow these steps:
1. Locate hydraulic hose (A) and fuel tank overflow
hose (B).
2. Pull the fuel tank hose (B) out from clamp (C).
3. Using the supplied pla stic tee fitting(D),jointhe
hydraulic and fuel overflow lines:
•Hose(B
) connects to 3/8 in. tee b ranch with smaller
gear cl
amp (E)
•Hose(A
) connects to 5/8 in. tee branch with larger
gear cl
amp (F)

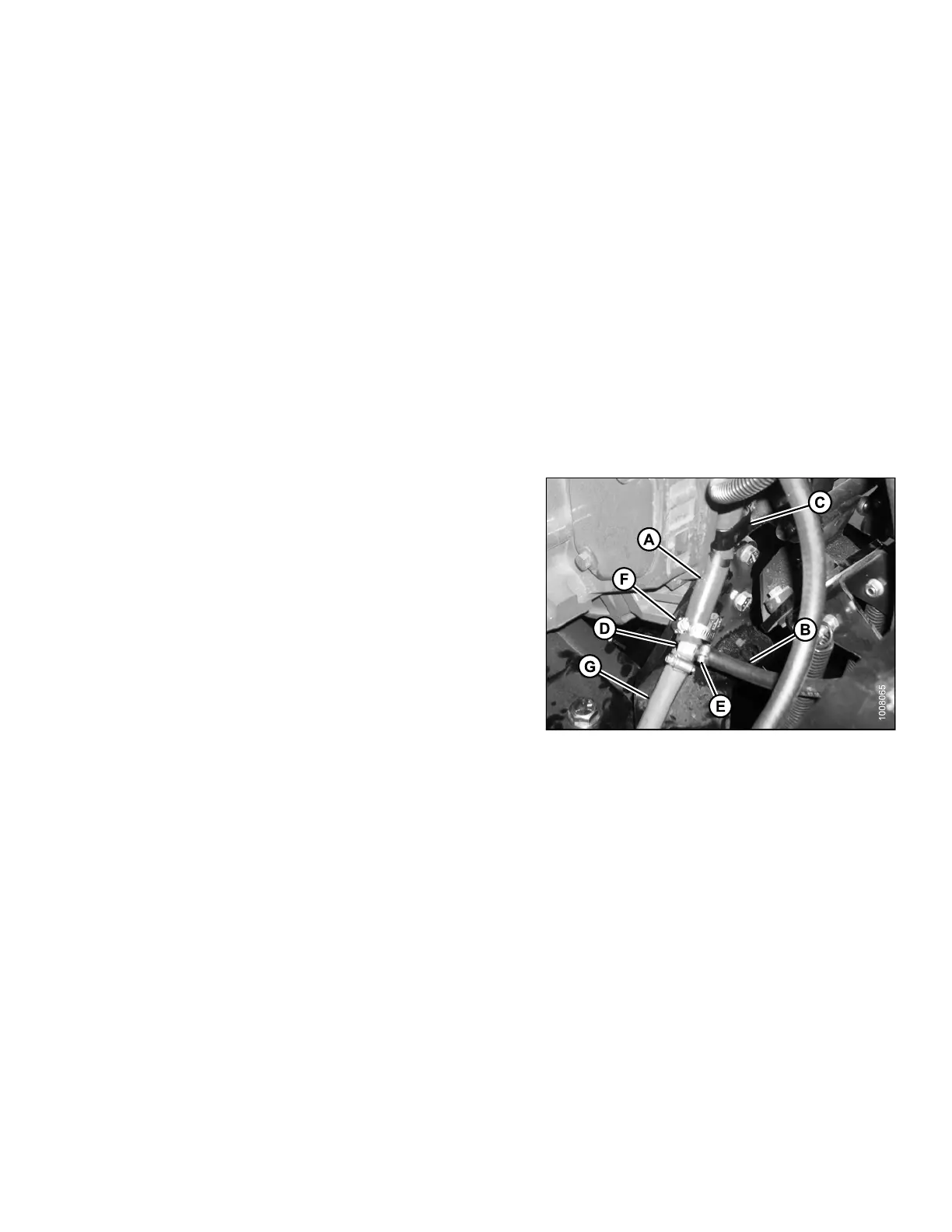

Figur
e 2.82: Fuel and Hydraulic Overflow Hoses
214049
