OPERATION
3.5 Adjusting the Deck Angle
The Double Windrow Attachment (DWA) deck angle can be adjusted to maximize performance and prevent contact
with the windrower.
To adjust the deck angle relative to the right drive tire, refer to 3.5.1 Adjustin g De ck An gle R elative to th e Drive Tire,
page 58.
To adjust the deck angle relative to the ground, refer to 3.5.2 Adjusting Deck Angle Relative to the Ground, page 59.
NOTE:
If set up wit
h an R-Series Rotary Disc Header, the DWA deck will only be in its most forward position when the
windrower i
s running. The lift cylinder is single acting and not pressurized when the windrower is shut off. When
the windrow
er is running, a supply of low pressure oil m oves the deck forward.
3.5.1 Adjusting Deck Angle Relative to the Drive Tire
The deck angle, relative to the right-hand drive tire, is
adjustable with turnb uckle (A).

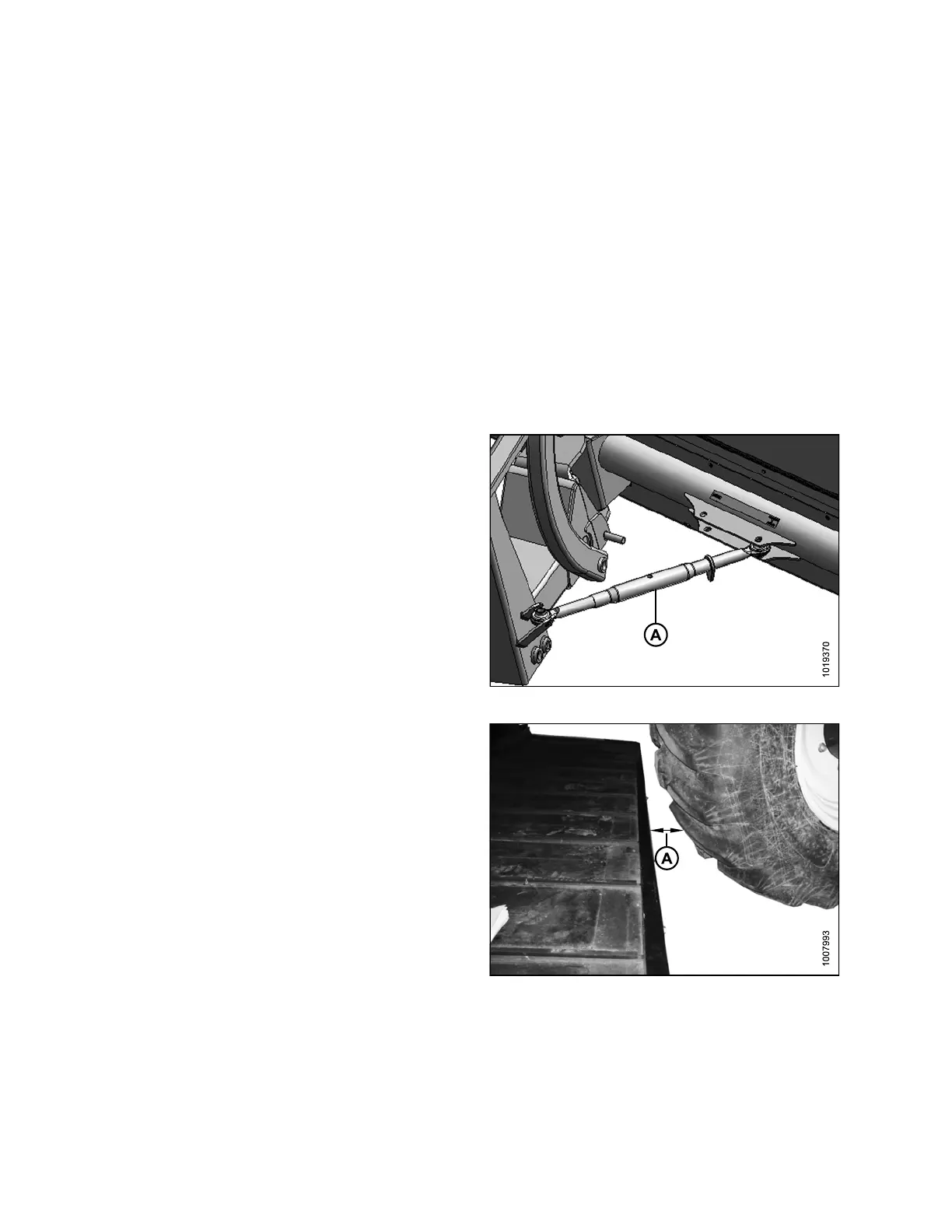

Figure 3.7: Deck Angle Turnbuckle
1. Adjust
the turnbuckle length so the space (A) between
the dec
k and the right-hand drive tire is approximately
100 mm (
4in.).
Figure 3.8: Distance from Deck to Tire
214049 58 Revision A
