ASSEMBLY/SETUP INSTRUCTIONS
2.9.3 Install
ing the Tank Overflow Hose Extension: M200 with Cat Engine
To install the tank overflow hose on an M200 Self-Propelled Windrower, follow these steps:
1. Locate the hydraulic and fuel tank breather hose (A).
2. Connect the supplied extension hose (B) to the existing
hose (A) using a straight plastic joiner and two hose
clamps at (C) as shown.
3. Trim hose (B) to length as follows:
• R-Series Rotary Disc Header: leave
approximately 180 mm (7 in.) free hose below
windrower frame
• A Series Auger and D-Series Drap er Hea d er:
leave approximately 360 mm (14 in.) free hose
below windrower frame

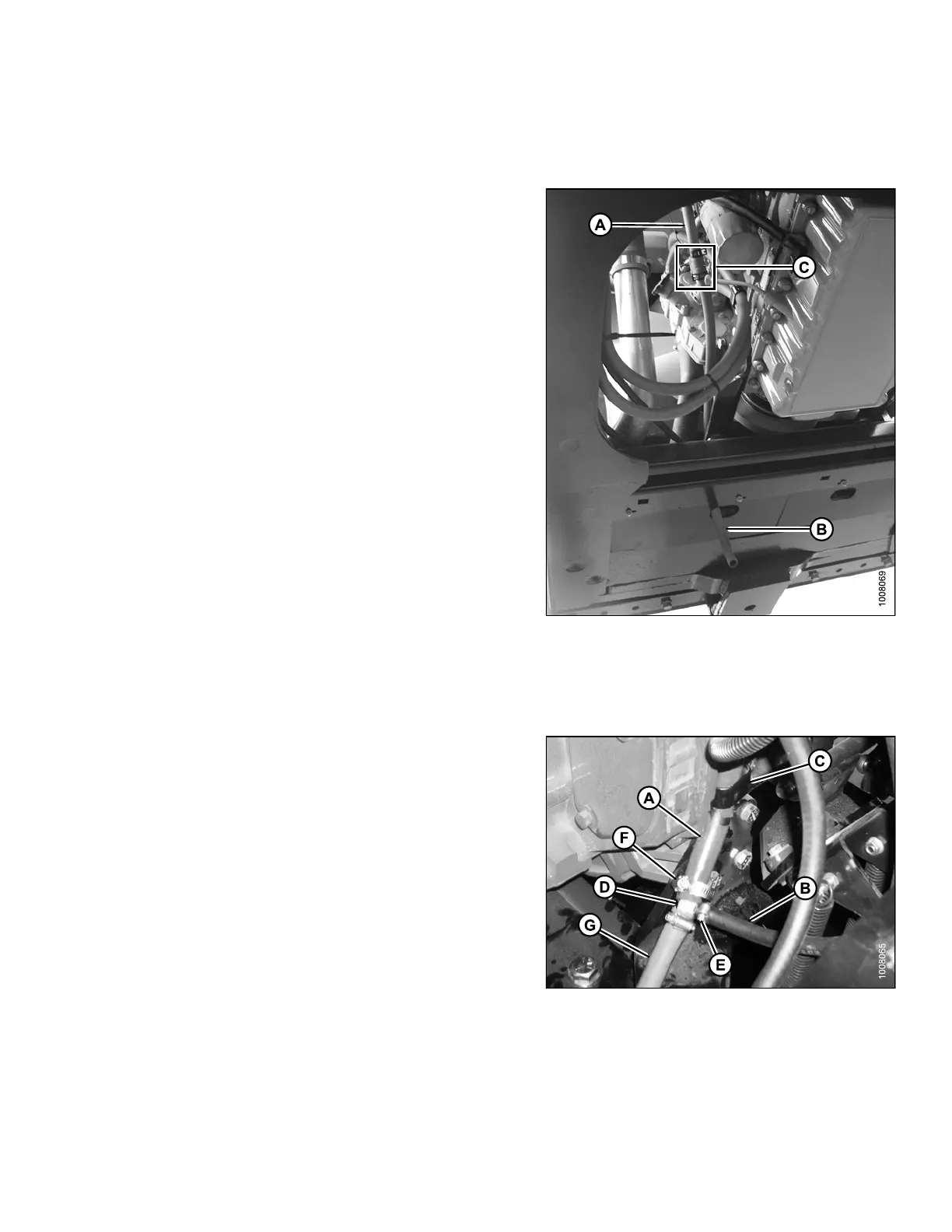

Figure
2.89: Overflow Hose
2.9.4
Installing the Tank Overflow Hose Extension: M205
To install the tank overflow hose on a M205 S elf-Propelled Win drower, follow these ste ps:
1. Locate hydraulic hose (A) and fuel tank overflow
hose (B).
2. Pull the fuel tank hose (B) out from clamp (C).
3. Using the supplied pla stic tee fitting(D),jointhe
hydraulic overflow and fuel overflow lin es:
• Hose (B) connects to 3/8 in. tee branch with smaller
gear clamp (E)
• Hose (A) connects to 5/8 in. tee branch with larger
gear c lamp (F)
Figure 2.90: Overflow Hoses
214049 51 Revision A
